Marshall Electronics 5.6" LCD Rack Mount Triple Monitors, 1280x800 Resolution, 500:1 Contrast Ratio, 300 cd/m2 Brightness

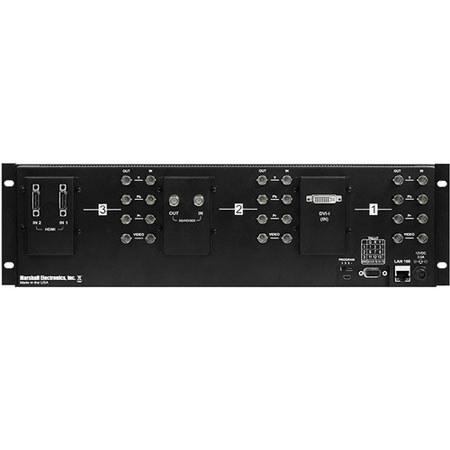

The Marshall Electronics V-MD563 High Resolution LCD Rack Mount Monitor (5.6"), with 3 LED-backlit LCDs and modular inputs/outputs, delivers high quality images at a resolution of up to 1280 x 800. It offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m2. With wide viewing angles, you can view the images clearly even from room corners or when the display is mounted at a height.

Featured freeze function enables you to bring an image to a still position. The V-MD563 LCD Monitor has an aspect ratio of 16:10 and can automatically adapt to the input resolution of the incoming video signal. With RGB bias and gain function, the LCD monitor allows for fine tuning of color balance levels and facilitates color matching with other types of monitors.

Equipped with pixel-to-pixel mode, the LCD monitor displays images in their native resolution by avoiding the monitor's internal scaling function. The Blue only feature switches red and green scan guns to produce an image made only from a blue scan gun. In addition, the false color filter function allows you to set the correct camera exposure levels.

With marker settings, you can control all on-screen markers and it is applicable for center marker, full screen markers, 16:9 markers and 4:3 markers. Equipped with the network function, the V-MD563 LCD monitor can be controlled over LAN. The network function allows you to access any function on the front panel of the monitor via any web browser.

The V-MD563 High Resolution LCD Rack Mount Monitor incorporates user-programmable function buttons to assign various functions like false colors, freeze input, aspect markers, center marker and pixel-to-pixel as required.
