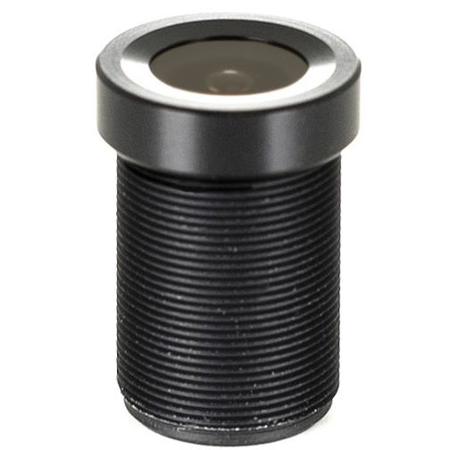

Marshall Electronics 2MP 5mm f/2.0 M12 Mount Fixed Iris Visible IR Corrected Miniature Lens, 5 Groups /5 Elements, Approx. 52deg. AOV

SKU: MAV470502MVI

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marshall Electronics 5mm f/2.0 Specifications

  • Compatibility

    OmniVision OV2715 1/2.7" 2MP CMOS sensor
    Sony IMX122 1/2.9" CMOS sensor

  • Mount

    M12

  • Lens

    Construction: 5 components, 5 elements (glass optics)
    Function: IR corrected

  • Focal Length

    5mm +/- 5%

  • Back Focal Length

    9.4mm +/- 5% (in air)

  • Maximum Relative Aperture

    f/2.0 +/- 5%

  • Iris

    Fixed

  • Angular Field of View

    With OmniVision OV2715 Sensor (H x V x D): 71.4 x 38.2 x 83.9 deg.
    With Sony IMX122 Sensor (H x V x D): 65.4 x 39.8 x 79.2 deg.

  • Housing

    Anodized aluminum

  • Compliance

    RoHS

  • Dimensions (H x W)

    0.8 x 0.6" / 20.32 x 15.24mm

  • Weight

    0.2oz / 5.67g

  • UPC Code

    801813168341

About Marshall Electronics 5mm f/2.0

Be captivated by the exceptional performance of the 2MP 5mm f/2.0 M12 Mount Fixed Iris Visible IR Corrected Miniature Lens. This high-quality lens is designed with a visible-IR corrected model that operates efficiently in the 400 - 1,000nm range, covering Near UV to Near IR optical performance. This feature ensures superior image quality in near zero light conditions, making it an ideal choice for covert security and process applications.

The lens boasts a fixed focus position throughout Near UV, Visible, Near IR up to 1,000nm, making it a perfect miniature lens solution for covert Day/Night Camera applications. With its 2MP optical design performance, this lens guarantees low distortion, delivering crisp and clear images every time.

Designed to work with a 1/3" sensor size, this lens is compatible with OV2715 2MP 1/2.7", and Sony IMX122 1/2.9" CMOS sensors. The M12 Mount ensures easy installation and compatibility with a wide range of camera models.

Constructed with durable glass optics housed in an anodized aluminum casing, this lens promises longevity and robust performance. Moreover, it is RoHS compliant, ensuring that it meets all the necessary safety and environmental standards.

Whether you're a professional photographer or a security enthusiast, the 2MP 5mm f/2.0 M12 Mount Fixed Iris Visible IR Corrected Miniature Lens from Adorama offers a versatile and reliable solution for your imaging needs.

Marshall Electronics 5mm f/2.0 Features

  • 2MP resolution with low distortion for high-quality imaging
  • Visible-IR corrected lens for Near UV to Near IR performance
  • Fixed iris design optimized for covert Day/Night camera applications
  • Compatible with M12 mount, including 1/3" sensor size cameras
  • Durable glass optics in an anodized aluminum housing
  • RoHS compliant for environmental safety standards

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture clear footage with this 2MP security lens, perfect for detailed surveillance.
  • Enhance your camera's capabilities with this 5mm M12 mount lens for sharper images.
  • This IR corrected lens ensures optimal performance in both day and night conditions.
  • Achieve a wide 52-degree AOV, expanding your surveillance camera's field of view.
  • Durable aluminum housing protects this compact lens, ensuring long-lasting reliability.
  • Easy to install, this fixed iris lens is ideal for quick upgrades to your system.
