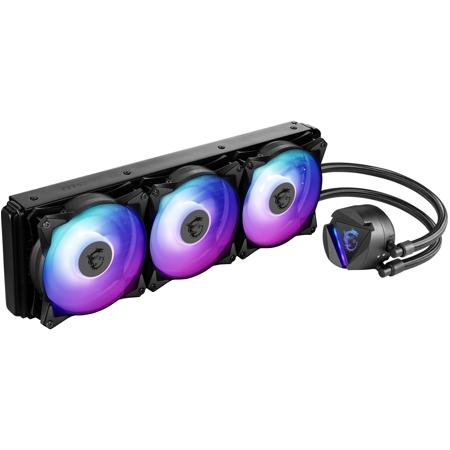

MSI MAG CORELIQUID 360R ARGB CPU Cooler

SKU: MSIMCLQ360R

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JAMES H : causeJEFFREY R : For new PCWILMER M : BESTTYLER S : Good pricing

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

MSI MAG CORELIQUID 360R Specifications

  • Number Of Fans

    3

  • Fan Speed

    500 - 2000 RPM

  • Fan Power Consumption

    1.8 W

  • Fan Rated Current

    0.15 A

  • Fan Bearing

    Two Ball Bearing

  • Fan Air Pressure

    0.23 - 2.39 mmH2O

  • Fan Air Flow

    21.63 - 78.73 CFM

  • Fan Lighting

    ARGB

  • Fan Argb Cable Connector

    Pin + Socket

  • PWM Mode

    Yes

  • Fan Cable Length (5v Argb / Pwm Cable)

    21.65 / 13.78" (550 / 350mm)

  • Radiator Material

    Aluminum

  • Radiator Water Cooling Pipe Length

    15.75" (400mm)

  • Block Lighting

    ARGB

  • Block ARGB 5V Cable Length

    15.75" (400mm)

  • Block ARGB Cable Connector

    Pin + Socket

  • Pump Load Current

    0.34 A

  • Pump Rated Voltage

    12V DC

  • Pump Speed

    4200 RPM

  • Pump Power Consumption

    4.08W

  • Intel Socket

    LGA 1150/1151/1155/1156/1200
    LGA 1366/2011/2011-3/2066

  • Amd Socket

    AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
    SocketTR4/sTRX4/SP3

  • Amd Sockettr4 / Strx4 / Sp3 Socket

    Yes

  • Dimensions

    Fan: 4.7 x 4.7 x 0.98" (120 x 120 x 25mm)
    Radiator: 15.5 x 4.7 x 1.06" (394 x 120 x 27mm)
    Block: 3.17 x 2.63 x 1.91" (80.57x 66.82 x 48.58mm)

  • UPC Code

    824142205686

About MSI MAG CORELIQUID 360R

MAG Conquer The Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

MAG CORELIQUID
The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

Rotable Blockhead
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

Radiator Pump Design
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

Pump Motor Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

High Thermal Dissipation
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

Evaporation Proof Tubing
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 - Integrating with The System Environment
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

• For CPU Cooler
• For Waterblock cooler
• For Top system fan
• For Front system fan
• For Rear system fan

More Silence Than Expected
MAG CORELIQUID 360R's noise level is significantly lower than that of competitor's by 10%.

Cooling You Can't Hear
For those who prefer a quieter environment, a bundled noise reducer cable changes the fans' speed to produce less sound while still providing good airflow.

Extensive Compatibility
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.

Intel
LGA 1150, 1151, 1155, 1156, LGA1200, LGA1366, LGA2011, LGA2011-3, LGA2066

AMD
AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, SocketTR4, sTRX4, SP3

Recommended Cooler for Your Build

10th Gen Intel Series CPU
• i9-10980XE
• i9-10940X
• i9-10920X
• i9-10900X
• i9-10900K/KF
• i7-10700K/KF

AMD Ryzen 3000 Series CPU
• AMD Ryzen Threadripper 3990X
• AMD Ryzen Threadripper 3970X
• AMD Ryzen Threadripper 3960X
• R9-3950X
• R9-3900X/XT
• R7-3800X/XT

MSI MAG CORELIQUID 360R Features

  • Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
  • The pump has been integrated into the radiator for sound dampening and noise reduction
  • Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
  • A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
  • Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, SocketTR4, sTRX4, SP3

Key Features

  • Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
  • The pump has been integrated into the radiator for sound dampening and noise reduction
  • Constructed with three layers of netted plastic tubing and a reinforced mesh exterior

What's in the box:

  • MAG CORELIQUID 360R ARGB CPU Cooler
  • 3x 120mm Fans
  • 1 to 3 Fan PWM Cable
  • PSU Molex 4-Pin to 4-Pin (2 Pin Wired) Fan Cable
  • Noise Reducer Cable
  • Screws
  • Thermal Paste
  • Installation Guide
  • Brackets for AMD & Intel Installation
  • MSI 5 Year Limited Warranty
