MSI PRO DP20Z Specifications

OS
  • Operating System

    Windows 10 Pro

Performance

Jump to...
  • Chipset

    AMD X300

  • Processor

    AMD Ryzen 5 5600G

  • CPU

    3.9 to 4.4 GHz 8-Core

  • L3 Cache

    16 MB

  • Memory Type

    2600 MHz DDR4

  • Total Installed Memory

    8 GB

  • Memory Configuration

    2x 4 GB (User-Replaceable)

  • Maximum Memory

    64 GB

  • Memory Slot Type

    260-Pin SO-DIMM

  • Memory Slots

    2 (0 Available)

  • Graphics Type

    Integrated

  • GPU

    AMD Radeon Vega 7

Storage and Expansion

Jump to...
  • Total Drive Bays

    2x 2.5" (Internal)

  • SSD Slots

    1x M.2 2280 SATA / PCIe (Unspecified Interface) (Available)
    1x M.2 2280 SATA / PCIe (Unspecified Interface) (In Use)

  • Total Installed Capacity

    250 GB

  • Solid State Storage

    1x 250 GB M.2 NVMe PCIe

  • PCI Expansion

    None

  • Optical Drive

    None

  • Ports

    2x USB Type-A (USB 3.1 / USB 3.2 Gen 2)
    3x USB Type-A (USB 2.0)
    1x DE-9/DB-9 (Serial)

  • USB Type-C

    1x USB 3.1 / USB 3.2 Gen 2

  • Display

    1x DisplayPort 1.4 Output
    1x HDMI 2.0b Output
    1x VGA Output

  • Audio

    1x 1/8" / 3.5 mm Headphone/Microphone Input/Output

  • Built-In Speakers

    None

  • Built-In Microphones

    None

  • Media/Memory Card Slot

    None

Communications

Jump to...
  • Ethernet

    1x RJ45 (Gigabit)

  • Wi-Fi

    Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)

  • MU-MIMO Support

    Yes

  • Bluetooth

    5.1

  • NFC

    No

Keyboard & Mouse

Jump to...
  • Keyboard

    USB

  • Pointing Device

    USB Mouse

General

Jump to...
  • Security

    Dedicated TPM Security Chip

  • Power Supply

    120 W with IEC

  • Certifications

    ENERGY STAR, as per Manufacturer

  • Dimensions

    7.61 x 6.32 x 2.56" (193.29 x 160.53 x 65.02mm)

  • Weight

    3.35 lbs (1.52kg)

  • UPC Code

    824142265871

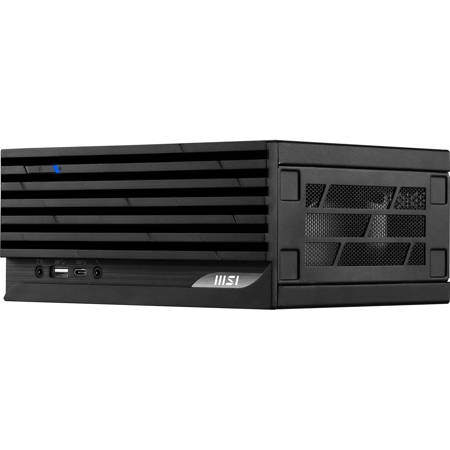

About MSI PRO DP20Z

We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

Small But Powerful
The same performance as a big rig but in a only 2.6L chassis so you can take it anywhere.

Support Up To 4K Resolution
PRO DP20Z supporting 4K@60Hz allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.

See More, Do More
With one DP-out, one HDMI-out and a VGA port, PRO DP20Z 5M allows you to extend three monitors to pre-view your E-commerce content & data at home or in the office that enhance the efficiency for you.

MSI Center
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.

Wi-Fi 6 Technology
Featuring the latest Wi-Fi 6 802.11ax with Bluetooth 5.1 version, and speed up to 2.4Gbps, which is 3x times faster than the Ethernet LAN. The latency is also 75% lower than the previous generation. With Wi-Fi 6 technology, the connectivity to the world will be unlimited.

• 3X Faster Processor
• 75% Latency
• Up to 2.4 Gbps

USB 3.2 GEN 2 Type-C & Type A
With data transfer speeds up to 10Gbps, two USB 3.2 Gen 2 Type A and one Type C ports offer twice the bandwidth of the older USB 3.1 Gen 1 ports, effectively halving any data delay or waiting time. The reversible Type-C connector allows for effortless connecting of USB devices.

FW TPM Support
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

Easy Maintenance
Users can easily upgrade two M.2 SSD, two 2.5" HDD/SSD and two SO-DIMM by disassembling the side covers. Made PRO DP20Z an even flexible desktop and also reduce the time wasting on upgrading.

VESA Mount Support
VESA Mountable design allows users to hook PRO DP20Z 5M up anywhere you like or mount it with PRO MP242 Series. Not only improve the flexibility of using PRO DP20Z, but also let users make good use of their space at home or at office.

Various IO Ports
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won't need an adapter or a dock.

MSI PRO DP20Z Features

  • AMD Ryzen 5 5600G 3.9 to 4.4 GHz 6-Core
  • 8GB 2666 MHz DDR4 RAM
  • 250 GB M.2 NVMe PCIe SSD
  • AMD Radeon Vega 7 Graphics
  • Windows 10 Pro

Key Features

  • AMD Ryzen 5 5600G 3.9 to 4.4 GHz 6-Core
  • 8GB 2666 MHz DDR4 RAM
  • 250 GB M.2 NVMe PCIe SSD
  • AMD Radeon Vega 7 Graphics
  • Windows 10 Pro

What's in the box:

  • MSI PRO DP20Z 5M-009US Micro Form Factor Desktop Computer
  • USB Wired Keyboard
  • USB Wired Mouse
  • Power Cable
  • MSI 3 Year Limited Warranty
