Supports 10th Gen Intel Core Processors, 11th Gen Intel CoreTM Processors, Pentium Gold and Celeron processors
LGA 1200
Intel Z590 Chipset
1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x16 slots
Support 3-way AMD CrossFireTM Technology
Support 4K@60Hz as specified in HDMI 2.0b, DisplayPort 1.4
Requires Processor Graphics
4 DIMMs, Dual Channel DDR4-5333(OC)
2x PCIe 3.0 x1 slots
1x M.2 Gen4 x4 64Gb/s slot, 2x M.2 Gen3 x4 32Gb/s slots, supports Intel Optane technology
6x SATA 6Gb/s
1x USB 3.2 Gen 2x2 20Gbps (1 Type-C) , 4 x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C), 4x USB 3.2 Gen 1 5Gbps (4 Type-A), , 6 x USB 2.0
Intel I225-V 2.5G LAN
IntelWi-Fi 6E AX210, Bluetooth 5.2
8-Channel (7.1) HD Audio with Audio Boost 5
No battery used
-
0
-
824142242162

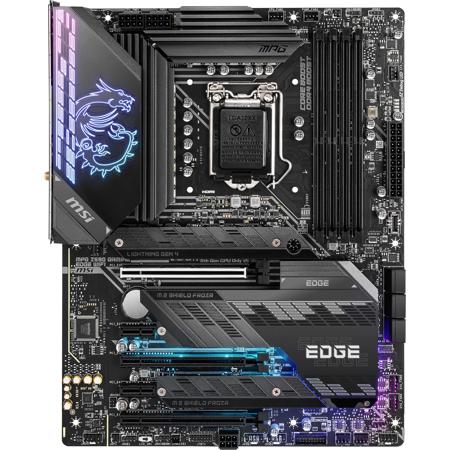

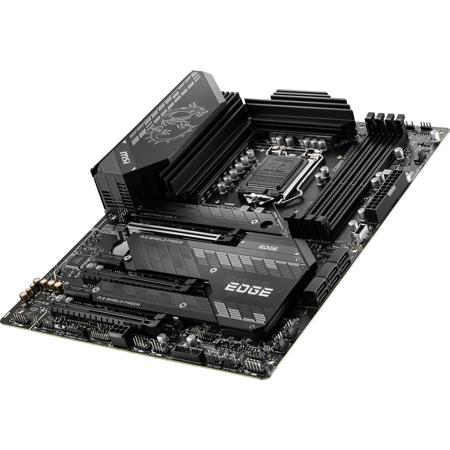

Z590 Gaming Motherboard gets an A+!
By CHRIS B.
This board made for the easiest build ever. Everything was clearly labeled, located logically in terms the case placement, fit the first time without issue, and the manual was very comprehensive.
Premium Thermal Design
Heavy plated mosfet heatsink with heat-pipe / high quality 7W/mK mosfet thermal pads / extra choke thermal pads / 3x onboard M.2 Shield Frozr
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects, controlled in one click!
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the most immersive gaming experience
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
