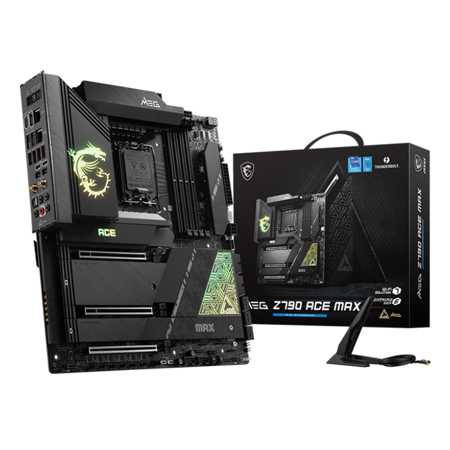

MSI MEG Z790 ACE MAX Wi-Fi DDR5 LGA 1700 SATA 6Gbps E-ATX Gaming Motherboard
See all MSI items

MSI MEG Z790 ACE MAX Wi-Fi DDR5 LGA 1700 SATA 6Gbps E-ATX Gaming Motherboard

SKU: MSIZ79ACEMAX

This item is no longer available.

Recommended Alternatives

MSI MAG B550 TOMAHAWK MAX: Picture 1 regular
MSI MAG B550 TOMAHAWK MAX Wi-Fi AM4 SATA 6Gb/s ATX Gaming Motherboard
$219.99
MSI MPG B650I EDGE Wi-Fi: Picture 1 regular
MSI MPG B650I EDGE Wi-Fi DDR5 AM5 SATA 6Gb/s Mini-ITX Gaming Motherboard
$324.99
MSI PRO B650-P Wi-Fi: Picture 1 regular
MSI PRO B650-P Wi-Fi DDR5 AM5 SATA 6Gb/s ATX Gaming Motherboard
$219.99
MSI Z690-P DDR4: Picture 1 regular
MSI PRO Z690-P DDR4 LGA 1700 SATA 6Gb/s ATX Motherboard
$169.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Amanda N : For my nephews birthday

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

MSI MEG Z790 ACE MAX Specifications

  • Chipset

    INTEL Z790

  • CPU

    Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
    LGA 1700

  • Memory

    4x DDR5 UDIMM, Maximum Memory Capacity 192GB
    Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

  • Memory (Contd.)

    Max. overclocking frequency:
    1DPC 1R Max speed up to 7800+ MHz
    1DPC 2R Max speed up to 6800+ MHz
    2DPC 1R Max speed up to 6400+ MHz
    2DPC 2R Max speed up to 6000+ MHz

    Supports IntelXMP3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory

  • Onboard Graphics

    1x Type-C DisplayPort
    Supports a maximum resolution of 4K 60Hz

  • Onboard Thunderbolt

    Thunderbolt chip JHL8540
    2x Thunderbolt4 (USB-C) ports Q'ty
    Supports up to 40Gbps transfer rate with Thunderbolt devices
    Supports up to 20Gbps transfer rate with USB4 devices
    Supports up to 10Gbps transfer rate with USB 3.2 devices
    Supports up to 5V/3A,15W power charging

  • Onboard Thunderbolt (Contd.)

    Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)

  • Slot

    3x PCI-E x16 slot
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

  • Multi-GPU

    AMD MULTI-GPU Support

  • Storage

    5x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices

  • Storage (Contd.)

    M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
    M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
    6x SATA 6Gbps ports

  • Raid

    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

  • USB

    4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Front)
    7x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Rear)
    2x USB 3.2 Gen2x2 Type C (Front)

  • LAN

    2x Intel2.5Gbps LAN

  • Wireless LAN & Bluetooth

    Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    Supports Bluetooth5.4, MLO, 4KQAM

  • Audio

    RealtekALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
    7.1-Channel USB High Performance Audio
    Supports S/PDIF output
    Supports up to 32-Bit/384 kHz playback on front panel

  • Internal IO

    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x Front Type-C Quick Charge Connector(PD_PWR1)
    1x CPU Fan
    2x Pump Fan
    5x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Water Flow connector
    1x Slow Mode Booting Jumper(JSLOW)
    1x Front Audio (JAUD)
    2x Thermal Sensor connectors(T_SEN)

  • Internal IO (Contd.)

    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    2x USB 3.2 Gen 2x2 Type C ports
    V-check point
    1x ARGB+FAN Header (JAF_1)

  • LED Feature

    1x EZ LED Control switch
    4x EZ Debug LED
    1x 2-Digit Debug Code LED

  • Back Panel Ports

    Clear CMOS Button
    Flash BIOS Button
    2.5G LAN
    2.5G LAN
    Thunderbolt 4 40Gbps (Type-C)
    Wi-Fi / Bluetooth
    Audio Connectors
    Smart Button
    USB 3.2 Gen 2 10Gbps (Type-C Display port)
    USB 3.2 Gen 2 10Gbps (Type-A)
    Mini DisplayPort Input (for Thunderbolt passthrough)
    Optical S/PDIF-Out

  • Operating System

    Support for Windows11 64-bit

  • PCB Dimensions

    E-ATX: 10.90 x 12" (277 x 304.8mm)

  • UPC Code

    824142336649

About MSI MEG Z790 ACE MAX

An advanced, high-performance gaming motherboard, the MEG Z790 ACE MAX Wi-Fi DDR5 LGA 1700 SATA 6Gbps E-ATX is designed to elevate your gaming experience to new heights. This efficient and reliable motherboard is engineered with a sleek black finish and silver embellishments, offering a premium aesthetic that complements its superior functionality.

Built to support Intel's 14th Gen and 13th Gen Core processors, the MEG Z790 ACE MAX delivers exceptional performance, even in the most extreme gaming settings. Its LGA 1700 socket, DDR5 memory support, and SATA 6Gbps interface ensure high-speed data transfer and processing, making it a durable and versatile choice for high-end gaming systems.

The MEG Z790 ACE MAX features a tool-free M.2 installation with an industry-first magnetic and patented Screwless M.2 Shield Frozr & EZ M.2 Clip. This innovative design simplifies the installation process, making it easier than ever to set up your gaming system.

This motherboard also boasts a comprehensive hardware cooling overview, featuring a stacked fin array design that enlarges heat dissipation by up to 50%. Its aluminum IO cover and extended heatsink design, along with a direct touch cross heat-pipe, ensure efficient heat management for optimal performance. The double-sided M.2 Shield Frozr provides a thermal solution for M.2 SSDs, preventing throttling and ensuring they run cooler and faster.

The MEG Z790 ACE MAX also integrates seamlessly with MSI coolers and cases, offering full fan control in one click. Its 24+1+2 Duet Rail Power System unleashes and sustains maximum performance, while the optimized PCB design ensures reliable circuit transmission. With the EZ OC Tuning feature, you can effortlessly boost the performance of your Core i9-14900K processor beyond 6GHz.

The motherboard's solid pin design ensures stable transmission of 12V power to the CPU, even under high current loads. Its stainless steel IO shield offers anti-corrosive properties, reducing electromagnetic radiation noise and improving static electricity. With overcurrent protection and transient voltage suppressors, the MEG Z790 ACE MAX prioritizes safety, ensuring long-term system stability.

Supporting the latest storage standards, this motherboard allows you to connect any ultra-fast storage device for faster game starts and level loads. It also features dual Thunderbolt 4 for unprecedented interface bandwidth speeds and 8K display support. With the latest DDR5 memory support and an easy overclocking feature with XMP profile, the MEG Z790 ACE MAX is truly a powerhouse for any gaming enthusiast.

MSI MEG Z790 ACE MAX Features

  • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience
  • Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance
  • Outstanding Cooling Solution: Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature
  • Latest Wi-Fi 7 solution: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E
  • Dual 2.5G LAN: Onboard dual 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN, delivering the best online gaming experience
  • Maximum 5 x M.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery
  • DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, EZ Antenna, Smart Button, Pre-installed I/O Shield, Steel Armor
  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • E-ATX gaming motherboard with LGA 1700 socket, supporting Intel's 14th & 13th Gen Core processors
  • Innovative tool-free M.2 installation with magnetic Screwless M.2 Shield Frozr & EZ M.2 Clip

What's in the box:

  • MSI MEG Z790 ACE MAX Wi-Fi DDR5 LGA 1700 SATA 6Gbps E-ATX Gaming Motherboard
  • Wi-Fi Antenna
  • USB Drive
  • 4x SATA Cables
  • Rainbow RGB LED Extension Cable
  • 1 to 2 RGB LED Extension Y Cable
  • ARGB & Fan Extension Y Cable
  • 2x DP to Mini DP Cables
  • EZ Front Panel Cable
  • 2x Thermistor Cables
  • M.2 Screws/Standoff Sets/EZM.2 Clips
  • Cable Stickers
  • User Manual
  • MSI 3 Year Limited Warranty
