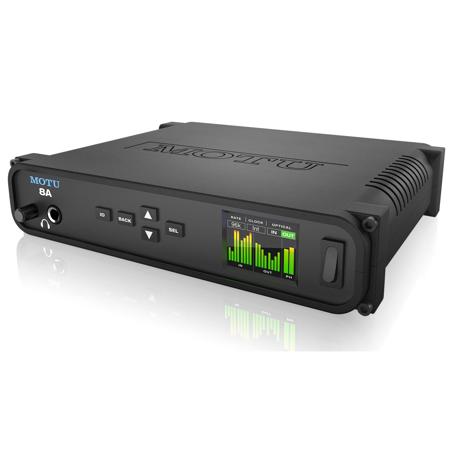

MOTU 8A 8x8 Thunderbolt/USB3/AVB Ethernet Audio Interface with DSP & Mixing
See all MOTU items

MOTU 8A 8x8 Thunderbolt/USB3/AVB Ethernet Audio Interface with DSP & Mixing

SKU: MT8A

This item is no longer available.

Recommended Alternatives

MOTU 24Ao Audio Interface: Picture 1 regular
MOTU 24Ao 1U USB/AVB 72 Channel Audio Interface with 24 Analog Outputs
$995.00
MOTU 8D: Picture 1 regular
MOTU 8D AES3/SPDIF/USB 2.0/AVB-TSN Ethernet Audio Interface
$595.00
MOTU M2: Picture 1 regular
MOTU M2 2x2 USB-C Audio Interface for Recording, Mixing & Podcasting
$199.95
MOTU M2: Picture 1 regular
MOTU M2 Desktop 2x2 USB-C Audio Interface with Mic, Headphone, Arm, Cable
$438.83$419.95
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?William B : To expand recording track count on my MOTU 16A

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

MOTU 8A Specifications

  • Sample rates

    44.1, 48, 88.2, 96, 176.4, 192 kHz

  • Analog inputs

    8 x 1/4" TRS line inputs (balanced/unbalanced)
    Max level: +24 dBu (range -96 to +22)

  • Analog outputs

    8 x 1/4" TRS line out (balanced, DC coupled 5v)
    Max level: +20 dBu (range -4 to +20)
    1 x 1/4" TRS stereo headphone

  • Digital I/O

    1 bank (8 ch) of ADAT optical at 1x sample rates
    1 bank (4 ch) of SMUX optical at 2x sample rates
    Switchable to stereo TOSLink (optical S/PDIF)

  • Total I/O

    16 inputs / 18 outputs (34 total) at 1x sample rates
    12 inputs / 14 outputs (26 total) at 2x sample rates
    8 inputs / 10 outputs (18 total) at 4x sample rates

  • Computer I/O

    1 x Thunderbolt 1 (Mac and Win) Thunderbolt 2 & 3 compatible
    1 x USB 3.0 (Mac and Win) USB 2.0 and iOS compatible (class compliant)
    1 x AVB/TSN Ethernet (Mac only) Requires OS X 10.11 or later

  • Computer I/O channels

    Thunderbolt (44.1 to 96 kHz): 128 in/out
    Thunderbolt (176.4 to 192 kHz): 64 in/out
    USB 3.0 (44.1 to 96 kHz): 128 in/out
    USB 3.0 (176.4 to 192 kHz): 64 in/out
    AVB/TSN Ethernet: 16 to 128 in/out
    depends on host computer speed

  • Headphone

    1 x 1/4" TRS stereo phone (assignable)

  • Network I/O

    1 x RJ45 AVB/TSN Ethernet (1 Gbps)

  • AVB streams

    (8 channels per stream)
    8 in / 8 out @ 44.1 or 48 kHz
    8 in / 8out @ 88.2 or 96 kHz
    8 in / 8 out @ 176.4 or 192 kHz

  • Front panel

    1 x 1/4" TRS headphone output
    1 x digital rotary encoder - phone volume
    5 x switches - menu navigation
    160 x 128 pixel RGB LCD for level meters / menu nav
    Power switch

  • Power

    External 12-18V DC power supply
    1.0A max - tip pos or neg

  • Mac System Requirements

    1 GHz Intel-based Mac or faster
    2 GB RAM; 4 GB or more recommended
    Mac OS X version 10.8 or later
    Available Thunderbolt, USB or AVB/TSN Ethernet port
    A large hard drive (at least 500 GB for recording)
    AVB/TSN Ethernet audio interface operation requires OS X 10.11 or later

  • Windows System Requirements

    1 GHz Pentium-based PC compatible or faster
    2 GB RAM; 4 GB or more recommended
    Windows 7, 8 or 10
    Available Thunderbolt or USB port
    Available Ethernet port for firmware updates
    A large hard drive (at least 500 GB for recording)

  • Web App Support

    Any web client platform: Mac, Windows, Linux, iOS, Android
    Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
    Web client must be connected to the same network as the MOTU interface by wire or Wi-Fi.

  • Included Software

    MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
    MOTU Discovery App for iOS (available from Apple App Store)
    MOTU Pro Audio Control web app (served from the hardware itself)AudioDesk 4.0 for Mac & PC (separate download)

  • Operating Systems

    For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
    For web app control: Mac, Windows, Linux, iOS, Android

  • Connector type

    Line output: 1/4" TRS, balanced, tip hot
    Line input: 1/4" TRS, bal/unbal, tip hot
    Phones: 1/4", TRS stereo

  • Dimensions (W x D x H)

    Enclosure only: 8.6 x 7 x 1.75" (22 x 17.75 x 4.5cm)

  • Weight

    2.2 lbs (1.0kg)

  • UPC Code

    839128006041

About MOTU 8A

Why settle for less when you can have the best Experience the unparalleled audio quality and performance with the 8A 8x8 Thunderbolt/USB3/AVB Ethernet Audio Interface with DSP & Mixing. This advanced audio interface, equipped with the renowned ESS Sabre32 Ultra DAC technology, offers the same award-winning analog audio quality as MOTU's flagship 16A interface, all packed into a compact, mobile half-rack enclosure.

With 34 simultaneous audio channels, including 8 x 8 balanced analog, 8-channel ADAT optical, and an independent headphone out, this innovative device provides a total of 16 inputs and 18 outputs. The optical ports also support stereo TOSLink (optical S/PDIF), further enhancing its versatility.

The 8A audio interface is designed for the most demanding situations, delivering a dynamic range of 123 dB. Its ultra-low latency and high-performance MOTU drivers ensure the best possible latency performance, with round-trip latency as low as 1.6 ms at 96kHz over Thunderbolt and an astonishing 1.9 ms over USB with high-performance DAW hosts.

This professional-grade audio interface offers ultimate portability and flexibility, connecting to your computer via Thunderbolt, super-speed USB 3.0, or AVB/TSN Ethernet, supporting up to 256 audio channels (128 in and 128 out). It also connects to your iPad with a standard camera connection kit (adapter), making it a highly versatile tool for all your audio needs.

The 8A's full-fledged 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects, including reverb, 4-band EQ, gate, and compression. It also features vintage effects processing with 32-bit float precision for the utmost in sound quality.

With its flexible matrix routing and splitting, you can send any input to any output, or multiple outputs, with one-click ease. Control everything from your laptop, tablet, or smartphone with the web app served from the hardware itself. Plus, with the Touch Console designed specifically for touchscreen operation, you can tap, swipe, and pinch your way to a perfect mix, every time.

The 8A audio interface also offers stand-alone operation with wireless control, system expansion capabilities, comprehensive metering, and includes AudioDesk workstation software for Mac and Windows. Experience the difference with the 8A 8x8 Thunderbolt/USB3/AVB Ethernet Audio Interface with DSP & Mixing, the perfect blend of high-quality, durability, and advanced technology.

MOTU 8A Features

  • Advanced 8A 8x8 Thunderbolt/USB3/AVB Ethernet Audio Interface with DSP & Mixing for high-quality audio recording and playback
  • Equipped with renowned ESS Sabre32 Ultra DAC technology for superior audio quality
  • Features 34 simultaneous audio channels, including 8 x 8 balanced analog, 8-channel ADAT optical, and independent headphone out
  • Ultra-low latency and high-performance MOTU drivers for the best possible latency performance
  • Full-fledged 48-input digital mixer with DSP effects and vintage effects processing for professional-grade sound mixing
  • Connects to computers via Thunderbolt, super-speed USB 3.0, or AVB/TSN Ethernet and to iPads with a standard camera connection kit

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience pristine sound quality with the MOTU 8A's high-end audio interface.
  • Achieve ultra-low latency for seamless recording & mixing with Thunderbolt/USB3.
  • Connect all your gear with 8 analog inputs/outputs, plus ADAT digital I/O.
  • Harness powerful DSP for mixing & effects, freeing up your computer's resources.
  • Use as a flexible studio centerpiece or a portable solution for on-the-go recording.
  • Enjoy driver stability across Mac & Windows for worry-free music production.

What's in the box:

  • 8A 8x8 Thunderbolt/USB3/AVB Ethernet Audio Interface with DSP & Mixing
  • Power Cord
  • MOTU 2 Year Limited Warranty
