Nady 401X Quad LT Bodypack System with Omnidirectional Condenser #401XQUADLTO
See all Nady items

Nady 401X Quad LT Bodypack System with Omnidirectional Condenser

SKU: NA401XQLTO

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Nady 401X Lavalier Specifications

  • Frequency Response (Overall)

    30-18KHz (-3dB)

  • Dynamic Range (Overall)

    120dB (20-20KHz)

  • Total Harmonic Distortion (Overall)

    <0.5% (typical)

  • RF Carrier Frequency Range (Overall)

    170-230MHz (Factory installed Channels)

  • Frequency Stability (Overall)

    +/- 0.005%, crystal controlled

  • Modulation (Overall)

    FM (F3E), +/-15KHz nor,+/-30KHz max

  • Operating Range (Overall)

    250 feet typical - up to 500+ feet optimum line-of-sight

  • Audio Inputs - WHT (Transmitters)

    Nady DM-10D neodymium dynamic cartridge

  • Audio Inputs - WLT/WGT (Transmitters)

    3.5mm mono locking jack for connecting to omni or unidirectional lavalier mic or unidirectional headworn mic, with phantom power (WLT); or connecting to instrument cable (WGT)

  • Audio Inputs - LINK 2 (Transmitters)

    Locking XLR jack for connecting to microphone or cable, with selectable phantom power

  • Controls - WHT (Transmitters)

    OFF/STANDBY/ON switch

  • Controls - WLT/WGT (Transmitters)

    OFF/STANDBY/ON switch, input level adjust

  • Controls - LINK 2 (Transmitters)

    OFF/STANDBY/ON, LO/HI Level and ON/OFF Phantom power switch

  • LED Indicator (Transmitters)

    Unit "ON" (single flash), Low Battery Alert (steady)

  • RF Power Out (Transmitters)

    50mW (Max. allowed by FCC)

  • Harmonic/Spurious Emissions-Transmitters

    <-40dB

  • Battery (Transmitters)

    9V Alkaline

  • Battery Life (Transmitters)

    Up to 20 hours

  • Controls (Receiver)

    Power ON/OFF, volume control, mute control

  • Connectors (Receiver)

    1 unbalanced adjustable mixed (all four channel)
    1/4" T-S audio output jack. Line level, 600 ohms.
    4 balanced fixed level XLR. #1=GND, #2-3=signals
    Line/Mic level, 11k/600 ohms

  • Receiver

    2.1 mm barrel-type DC input jack (tip=positive)

  • LED Indicators (Receiver)

    1 Power ON LED, 4 AF LED, 4 TX ON LED

  • Power Requirements (Receiver)

    16V @ 800mA, nominal, AC/DC adapter supplied

  • Antenna Connectors (Receiver)

    Dual female BNC connectors

  • Dimension - WHT (Transmitter)

    9.5" X 1.4" Diam. (24.1 X 3.5 cm)

  • Dimension - WLT/WGT (Transmitter)

    4.1" X 2.4"X 0.8" (10.4 X 6.1 X 2.0 cm)

  • Dimension - LINK 2 (Transmitter)

    4.5" X 1.5" X 1.25" (11.4 X 3.8 X 3.2 cm)

  • Dimensions (Receiver)

    1.75" x 7.5" x 16.5" (4.4 x 19 x 42 cm)

  • Weight - WHT w/o battery (Transmitter)

    6.9 oz (193 g)

  • Weight WLT/WGT w/o battery (Transmitter)

    3.6 oz (101 g)

  • Weight -LINK 2 w/o battery (Transmitter)

    2.6 oz (71 g)

  • Weight (Receiver)

    4.5 lbs (2 Kg)

  • Warranty

    Nady 1 year warranty

  • UPC Code

    634343260489

About Nady 401X Lavalier

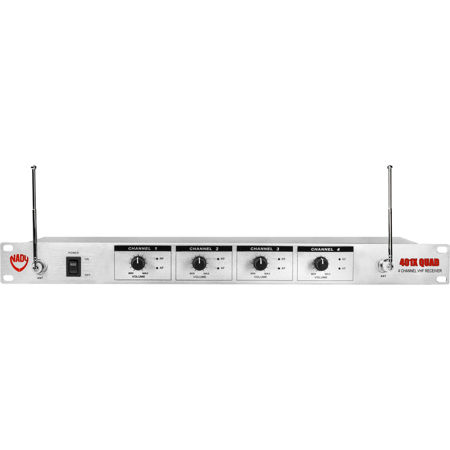

Designed for all professional applications, the 401x Quad offers unsurpassed RF and audio, enhanced full-featured operation and rackmount convenience. With four independent VHF receivers in one convenient, rugged, all-metal single rack space housing makes operating 4 wireless systems at the same time easier than ever.

The rear panel has individual XLR Output jacks, volume and RF mute controls for each of the 4 channels and 4-Channels-Mixed AF Out 1/4" phone jack. The high performance 401x Quad provides unmatched transparent audio with 120 dB dynamic range and up to 250+ feet optimum line-of-sight operation. With a choice of WLT, WGT, WHT, or Link 2 transmitter, any 4 can be operated simultaneously on the 4 different channels.

Nady 401X Lavalier Features

  • Four independent VHF receivers in one convenient, rugged, all-metal single rack space housing - makes operating 4 wireless systems at the same time easier than ever
  • Front-mount dual antenna jacks for either onboard or remote antennas
  • Front panel Power ON/OFF switch, plus Power ON LED, TX ON and AF signal level LED displays
  • Rear panel individual XLR AF Output jacks, volume and RF mute controls for each of the 4-channels and 4-Channels-Mixed AF Out 1/4? phone jack
  • Noise-free transmitter ON/OFF operation
  • High performance - unmatched transparent audio with 120 dB dynamic range and up to 250+ feet optimum line-of-sight operation
  • Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback, rejection and minimal handling noise
  • OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"
  • Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert
  • Rubber, "easy-mount" mic clip included
  • Choice of instrument or headworn/lavalier microphone bodypack transmitter
  • OFF/STANDBY/ON switch allows convenient audio muting with the transmitter"ON"
  • Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert
  • Locking 3.5mm mini-jack provides secure connection for removable microphone instrument cable
  • Easily accessible input level adjust control for optimum sound
  • Plug-in transmitter converts your favorite XLR handheld or lavalier microphone to wireless instantly
  • Rugged construction and positive locking connector for reliable performance
  • Selectable phantom power
  • Optional leatherette pouch with clip available for use as bodypack

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Four independent VHF receivers in single rack space housing
  • Front-mount dual antenna jacks
  • Rear panel individual XLR AF Output jacks, volume and RF mute controls
  • Noise-free transmitter ON/OFF operation
  • High performance
  • Features the Nady DM-10D unidirectional neodymium dynamic cartridge

What's in the box:

  • Nady 401X Quad Receiver with Omnidirectional Condenser
  • WHT Handheld Microphone Transmitter
  • WLT Lavalier Microphone
  • WGT Instrument Bodypack Transmitter
  • LINK 2 Plug-In Transmitter
  • AC/DC Adapter
  • Nady 1 Year Warranty
