Review Summary
25 Degree, 45 Degree
BE Mount (Bowens Mount Compatible)
Standard/General Purpose Reflector
Silver
Direct Attachment (Requires No Bracket/Speed Ring) with Proprietary Mount: For Nanlux Evoke 600C
Direct Attachment (Requires No Bracket/Speed Ring) with Bowens S Mount
Aluminum, Nylon
25 Degree:
Reflector: 3.73 lbs (1.69kg)
Carrying Bag: 13.76 oz (390g)
45 Degree:
Reflector: 1.85 lbs (840g)
Carrying Bag: 7.05 oz (200g)
25 Degree:
Reflector: 10.7 x 5.19 x 14.67" (273 x 131.8 x 372.5mm)
Carrying Bag: 11.02 x 18.5" (280 x 470mm)
45 Degree:
Reflector: 8.11 x 5.19 x 7.59" (206 x 131.8 x 192.7mm)
Carrying Bag: 8.46 x 11.42" (215 x 290mm)
25 Degree: 6949987492290 | 45 Degree: 6949987492658
Designed with a BE mount (Bowens mount with electronic contacts), it is compatible with BE mount fixtures and such as the Evoke 600C, and can assist the fixture in adjusting lighting parameters.
The front end features a gel slot and latch for quick installation and removal of gels (gel clip needs to be prepared separately). The mount has electronic contacts that can be recognized by BE mount fixtures to automatically adjust parameters, ensuring accurate and stable lighting performance.

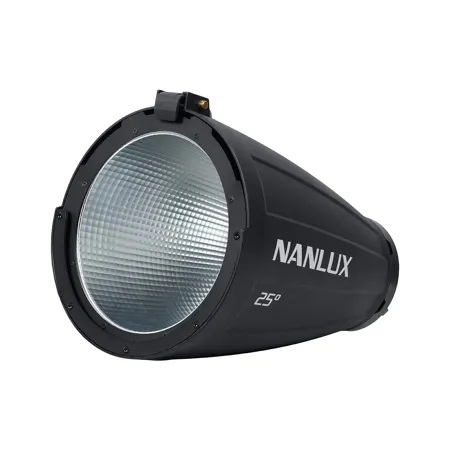

25 Degree Reflector
The reflector has a 25 Degree beam angle, allowing it to concentrate light for higher illuminance. When used with the Evoke 600C, the illuminance at 1 meter reaches over 300,000 lux (5600K).
45 Degree Reflector
The reflector has a 45 Degree beam angle, allowing it to concentrate light for higher illuminance. When used with the Evoke 600C, the illuminance at 1 meter reaches up to 83,900 lux (5600K), approximately 3.4 times compared to the bare light.
