Nady PEM 1000 100-Channel PLL Synthesized UHF Wireless In-Ear Monitor System
SKU: NAPEM1000
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Nady PEM 1000
This PEM-1000 offers all of the advantages of wireless in-ear monitoring-mobility, more focused audio, freedom from feedback, and elimination of transport issues associated with conventional floor monitors-as well as the long-term health benefits of safe listening levels. For the first time, a wireless in-ear monitor system combines state-of-the-art advanced frequency synthesized UHF technology, high-end performance, ease of use, and unprecedented affordability.
The PEM-1000 offers a choice of 100 user selectable UHF channels for the transmitter and receiver(s), as well as stereo (MPX system) or mono mode transmission. This system is indispensable for live-stage music performance, and is loaded with features previously found only in units costing several times more
Nady PEM 1000 Features
- System Features
- Available on selected frequency bands within the UHF band for interference-free, long-range performance (up to 8 systems can be operated simultaneously, depending on country and frequency band)
- System consists of PEM-1000T transmitter and one bodypack PEM1000R receiver, both of which offer 100 channels user select-ability. Any number of additional receivers can also be operated with the same transmitter if they are all set to the same channel
- AUTO-SCAN on receiver unit for easily locating clear channels or manual chose Group/Channel on transmitter
- IR (Infrared) synchronization both ways interface between receiver and transmitter
- User-friendly menu operation with more control options shown in LCD display
- Proprietary companding circuitry for wide Dynamic Range and clear, natural sound
- Operating Range: Up to 500 feet typical (depending on site conditions)
- Rugged, foam-padded traveling case provides easy, safe transport and storage

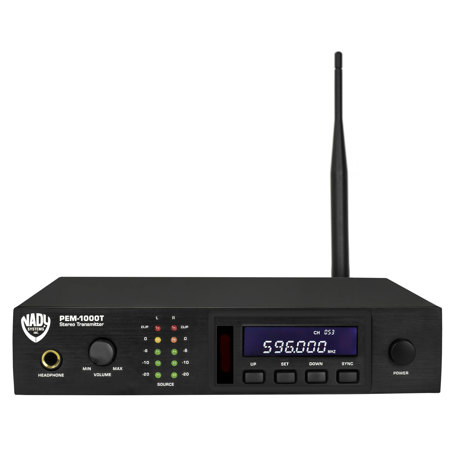

- PEM-1000T Transmitter Features
- Rugged, all metal half-rack that can be rack mounted singly or side-by-side with optional rack kits
- Front panel features stereo headphone monitor output jack and volume control, select button for choosing one of 100 UHF channels, Left/Right 5-segment audio input level displays, LCD channel display, and IR SYNC to system receivers
- Back panel provides BNC jack for the detachable antenna, a combo 1/4" TRS unbalanced, and balanced XLR jacks for Left and Right Line inputs, Left and Right 1/4" TRS unbalanced loop outputs
- Externally powered by AC-DC power adapter
- PEM-1000R Receiver Features
- Portable bodypack receiver features a power switch switchable with built-in volume output level control, select button for choosing one of 100 UHF channels, LCD channel display, stereo/mono, Signal/ Low Battery LED indicator
- Receiver has AUTO-SCAN for an open channel and IR SYNC to system transmitter
- Handy Mute Button for muting audio if desired during use
- Operates up to 8 hours (depending on volume) on 2x1.5V AA alkaline batteries
- Each receiver is supplied with a pair of miniature, lightweight (yet powerful) in-ear speakers with soft rubber mounts, designed for "custom" form-fitted comfort and optimum acoustic transfer and isolation
- Rear clip can be rotated 180 Degree for attaching receiver either vertically up or down position
