Nady 401X Quad LT 4-CH VHF Wireless Mic System, Channels E4/F/H/E
See all Nady items

Nady 401X Quad LT 4-CH VHF Wireless Mic System, Includes 4 WLT Transmitter, 4 Omni Lavalier Mic, Receiver, 2 Antennas, Power Supply, Channels E4/F/H/E

SKU: NAXQLTOE4FHE

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Nady 401X Quad LT 4-CH VHF Wireless Mic System, Channels E4/F/H/E Specifications

  • Type of System

    4-Channel VHF Bodypack

  • RF Carrier Frequency Range

    E4 / 173.800MHz, F / 203.400MHz, H / 191.300MHz, E / 215.200MHz

  • Approx. Working Range

    250 feet typical - up to 500+ feet optimum line-of-sight

  • Overall Frequency Response

    30 - 18kHz (-3dB)

  • No of Channels

    4 Discrete

  • Receiver: Type of Outputs

    4x XLR

  • Receiver: Power Requirements

    16V at 800mA, nominal, AC/DC adapter supplied

  • Receiver: Display

    1 Power ON LED, 4 AF LED, 4 TX ON LED

  • Receiver: Mounting Options

    19" Rackmoutable

  • Receiver: Antenna Type

    Dual female BNC connectors

  • Transmitter: Type of Microphone

    Lavalier

  • Transmitter: Polar Pattern

    Omnidirectional

  • Transmitter: Battery Type/Approx. Life

    9V Alkaline
    Up to 20 hours

  • Transmitter: Mute Switch

    OFF/STANDBY/ON switch

  • Transmitter: RF Output

    50mW (Max. allowed by FCC)

  • Transmitter: Display

    Unit "ON" (single flash), Low Battery Alert (steady)

  • Dimensions

    Receiver: 1.75 x 7.5 x 16.5" (4.44 x 19.05 x 41.91cm)
    Transmitter: 4.1 x 2.4 x 0.8" (10.41 x 6.09 x 2.03cm)

  • Weight

    Receiver: 4.5 lbs (2.04 kg)
    Transmitter: 3.6 oz (102.05 g)

  • UPC Code

    634343260496

About Nady 401X Quad LT 4-CH VHF Wireless Mic System, Channels E4/F/H/E

The Nady 401x Quad LT 4-CH VHF Wireless Mic System (Channels E4/F/H/E) is a cost effective, multi-microphone solution that supports simultaneous operation of up to 4 wireless microphones. The 401x Quad receiver features 4 discrete audio channels with level control and an XLR output per channel. Adjust microphone level separately using the level controls on the front panel. This system includes 4 WLT bodypack transmitters with omnidirectional lavalier microphones and on/off/standby switches. The Nady 401x Quad is ideal for restaurants, bars, schools, presentations, small performances, houses-of-worship and more.

Nady 401X Quad LT 4-CH VHF Wireless Mic System, Channels E4/F/H/E Features

  • Four independent VHF receivers in one convenient, rugged, all-metal single-rack space housing
  • Front dual antenna jacks for either onboard or remote antennas
  • Front panel Power On/Off switch, plus Power On LED, TX On and AF signal level LED displays
  • Rear panel individual XLR output jacks; volume and RF mute controls for each of the four channels; 4-channels-mixed AF out ¼" phone jack
  • Noise-free transmitter On/Off operation
  • High performance-unmatched transparent audio with 120 dB dynamic range and up to 250+ ft. optimum line-of-sight operation
  • The system includes four WLT bodypack transmitters. Handheld and instrument transmitters are available and any combination may be used simultaneously
  • WLT Bodypack Transmitters: The WLT Bodypacks in this system feature LM-14O omnidirectional microphones. Optional unidirectional lavalier (LM-14U) and a headworn microphone are also available
  • WLT Bodypack Transmitters: Off/Standby/On switch allows convenient audio muting with the transmitter on
  • WLT Bodypack Transmitters: Input level adjust
  • WLT Bodypack Transmitters: Locking 3.5mm jack
  • WLT Bodypack Transmitters: LED status indicator flashes once for unit on, lights steady for low-battery alert

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Front dual antenna jacks for either onboard or remote antennas
  • Rear panel individual XLR output jacks
  • Noise-free transmitter On/Off operation
  • WLT Bodypack Transmitters

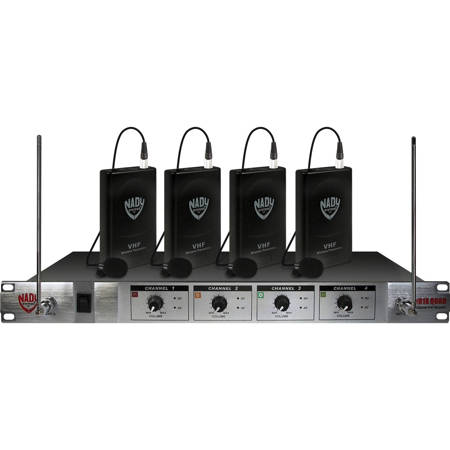

What's in the box:

  • Nady 4 x WLT Bodypack Transmitters
  • 4 x Omnidirectional Lavalier Microphones
  • 401X Quad Receiver
  • 2 x Antennas
  • Power Supply
  • Nady Warranty
