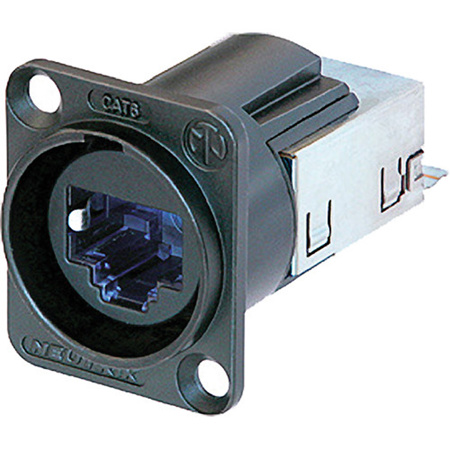

Neutrik NE8FDY-C6-B etherCON CAT6 D-Shape Panel Connector, Black

SKU: NE8FDYC6B

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neutrik NE8FDY-C6-B Specifications

General

General

Jump to...
  • Color

    Black

  • Gender

    Female

Electrical

Jump to...
  • Contact resistance

    < 10 m Ohm

  • Dielectric strength

    1 kVdc

  • Frequency range

    1 - 250 MHz

  • Insulation resistance

    > 0.5 G Ohm

  • Rated current per contact

    1.5 A

  • Rated voltage

    < 50 V

  • Transmission performance

    CAT 6

  • Standard compliance

    TIA/EIA 586B, IEC11801

Mechanical

Jump to...
  • Insertion force

    <= 40 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Panel thickness

    max. 3mm, 0.12"

  • Wiresize

    Solid: 0.205 - 0.324 sq. mm (AWG 24 - AWG 22)
    Stranded: 0.141 - 0.355 sq. mm (AWG 26/7 - AWG 22/7)

  • Locking device

    Push-Pull

  • Chassis shape

    D

Material

Jump to...
  • Contact plating

    0.7 microm Au over 1.2 microm Ni plating

  • Contacts

    Bronze (CuSn8)

  • Insert

    Polycarbonate

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Stainless steel

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Protection class

    IP 65

  • Temperature range

    14 to 140 Degree F (-10 to 60 Degree C)

About Neutrik NE8FDY-C6-B

Be prepared for a seamless and efficient connectivity experience with the NE8FDY-C6-B etherCON CAT6 D-Shape Panel Connector in a sleek black finish. Crafted by the trusted brand Neutrik, this high-quality panel connector is designed to provide a robust and reliable connection for your Ethernet cables.

Constructed with durable materials, this stylish and innovative connector is built to last, ensuring long-term performance. Its unique D-shape design not only enhances its aesthetic appeal but also contributes to its functionality, making it compatible with a wide range of devices.

One of the standout features of this panel connector is its secure latching system. This feature ensures a stable connection, minimizing the risk of disconnection and enhancing the reliability of your network.

Moreover, the NE8FDY-C6-B etherCON CAT6 D-Shape Panel Connector boasts a tool-free and gas-tight IDC termination. This feature simplifies the cable assembly process, making it quick and hassle-free.

Ideal for professional audio and video applications, this panel connector is designed to be mounted on a wall or other surfaces, offering a versatile solution for your connectivity needs. Experience the perfect blend of style, durability, and performance with the NE8FDY-C6-B etherCON CAT6 D-Shape Panel Connector.

Neutrik NE8FDY-C6-B Features

  • CAT6 compliant - data rate up to 10 GBit/s
  • CAT6 performance - fast data transmission and high bandwidth applications
  • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ground lead jumper on panel connector with selectable grounding option
  • Gas-tight IDC termination without tool

Key Features

  • Ensure reliable data connections with this Neutrik CAT6 etherCON panel connector.
  • Achieve optimal performance with a broad 1-250 MHz frequency range on your network.
  • Built for durability, this etherCON CAT6 connector withstands over 1000 mating cycles.
  • Secure your connections with the robust push-pull locking device on this CAT6 connector.
  • This CAT6 D-Shape panel connector offers excellent shielding & secure data transfer.
  • With black chromium plating, this Neutrik etherCON CAT6 connector provides lasting quality.

What's in the box:

  • NE8FDY-C6-B etherCON CAT6 D-Shape Panel Connector
  • Neutrik 6 Month Limited Warranty
