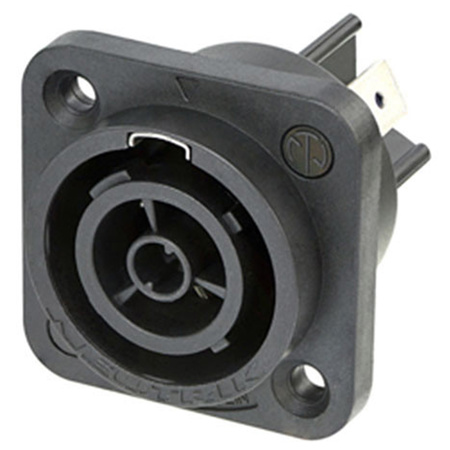

Neutrik NAC3FPX-TOP powerCON TRUE1 Appliance Outlet Female Connector, 1/4" Flat Tab Terminals, Black

SKU: NENAC3FPXTOP

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NAC3FPX-TOP Specifications

General

General

Jump to...
  • Color

    Black

  • Gender

    Female

Electrical

Jump to...
  • Contact resistance

    <= 2 m Ohm

  • Dielectric strength

    4 kVdc / 2.8 kVac

  • Insulation resistance

    > 1 G Ohm (after damp heat test)

  • Number of electronical contacts

    2 + PE

  • Rated current per contact

    16 A rms (USA: 20 A)

  • Rated voltage

    250 V ac

Mechanical

Jump to...
  • Lifetime

    > 5000 mating cycles

  • Wiresize

    2.5 sq. mm
    12 AWG

Material

Jump to...
  • Contact plating

    2 microm Ag

  • Locking element

    Stainless steel

  • Shell

    Polyamide (PA 6.6)

  • Contacts

    Spring Copper (CuSn0.2)

Environmental

Jump to...
  • Flammability

    UL 94 V-0

  • Protection class

    IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX)

  • Temperature range

    -22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

About Neutrik NAC3FPX-TOP

Overcome power connection challenges with the NAC3FPX-TOP powerCON TRUE1 Appliance Outlet Female Connector, featuring 1/4" flat tab terminals. This robust, locking 16 A true mains connector is specifically designed for outdoor applications, providing a reliable and durable solution for power connectivity in demanding environments. Unlike standard appliance couplers, this powerCON TRUE1 TOP connector offers enhanced ruggedness and a secure locking device, ensuring a safe and uninterrupted power connection even in the most challenging conditions. One of its standout features is its breaking capacity (CBC), which allows it to be safely connected or disconnected under load or live. This black powerCON TRUE1 TOP connector is not just a component; it's a testament to safety, reliability, and performance in power connectivity.

Neutrik NAC3FPX-TOP Features

  • Heavy duty sealed power connector for harsh and demanding environment
  • IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Key Features

  • Ensure a secure power connection with this Neutrik powerCON TRUE1 female connector.
  • This power supply connector offers a reliable 16A/250V AC rating for pro audio setups.
  • The NAC3FPX-TOP features quick, easy 1/4" flat tab terminals for efficient wiring.
  • With IP65 protection, this extension cord connector is perfect for demanding environments.
  • Enjoy long-term use: this heavy-duty connector is rated for over 5000 mating cycles.
  • This powerCON TRUE1 outlet is UL 94 V-0 flammability rated for enhanced safety.

What's in the box:

  • NAC3FPX-TOP powerCON TRUE1 Appliance Outlet Female Connector
  • Neutrik 6 Month Limited Warranty
