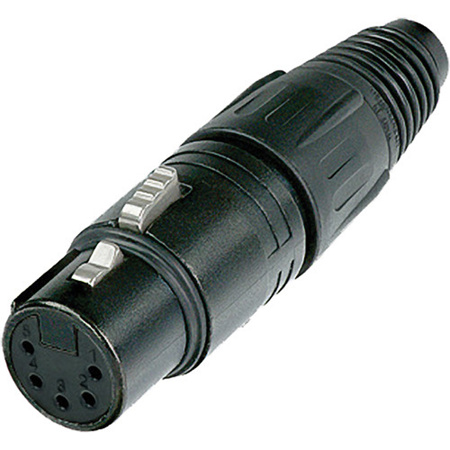

Neutrik NC5FX-B 5-Pole XLR Female Cable Connector, Black Metal Housing, Gold Contacts

SKU: NENC5FXB

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NC5FX-B Specifications

General

General

Jump to...
  • Color

    Housing: Black Metal
    Contacts: Gold

  • Connection Type

    XLR

  • Gender

    Female

Electrical

Jump to...
  • Capacitance between contacts

    <= 7 pF

  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    1.5 kVdc

  • Insulation resistance

    > 10 G Ohm (initial)

  • Rated current per contact

    7.5 A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    3.5 - 8.0 mm

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    max. 1.0 sq. mm
    max. 18 AWG

  • Wiring

    Solder contacts

  • Locking device

    Latch lock

Material

Jump to...
  • Boot

    Polyurethane

  • Contact plating

    0.2 microm Au hard alloy over 2 microm Ni

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    St3K32 (latch) / Ck 67 (spring)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Approvals

    UL

  • Flammability

    UL 94 HB

  • Standard compliance

    IEC 61076-2-103

  • Protection class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 Degree F to 176 Degree F (-30 Degree C to +80 Degree C)

  • UPC Code

    7613187003370

About Neutrik NC5FX-B

Discover the NC5FX-B 5-Pole XLR Female Cable Connector, a high-quality audio accessory designed with a sleek black metal housing and gold contacts for optimal signal transmission. This product is recognized as the "industry standard" in the realm of XLR cable connectors, offering an easy assembly process with just four components and no need for screws.

The compact design of this 5-pole female cable connector ensures a perfect fit in any setup, while the robust diecast shell provides long-lasting durability. The connector also features a fiberglass-reinforced hard plastic insert, designed to withstand the rigors of regular use.

One of the standout features of the NC5FX-B 5-Pole XLR Female Cable Connector is its chuck type strain relief, which ensures secure clamping of all cables. This feature not only enhances the safety of your equipment but also contributes to maintaining the integrity of your audio signal.

Whether you're a professional audio engineer or a passionate audiophile, the NC5FX-B 5-Pole XLR Female Cable Connector is an essential tool for your audio and video equipment needs.

Neutrik NC5FX-B Features

  • Rugged zinc diecast shell, long lasting and durable
  • Boot with rubber gland gives high protection against bending stresses
  • UL recognized components
  • Chuck type strain relief system for secure clamping of cables
  • Colored rings and boots available for coding and marking

Key Features

  • Experience superior signal quality with this Neutrik 5-pole female XLR cable connector.
  • Achieve reliable audio connections using the gold contacts for optimal conductivity.
  • This durable XLR connector features a black metal housing, built to withstand frequent use.
  • Enjoy broad compatibility; this female XLR connector works with various audio devices.
  • Ideal for professional audio setups, ensuring secure and noise-free XLR cable links.
  • Withstand harsh conditions; this XLR connector operates from -22°F to 176°F.

What's in the box:

  • NC5FX-B 5-Pole XLR Female Cable Connector
  • Neutrik 6 Month Limited Warranty
