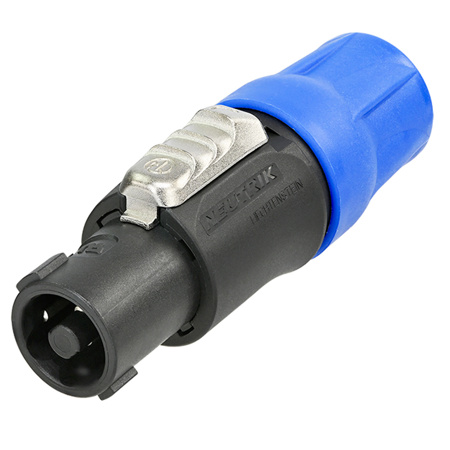

Neutrik NL4FC 4-Pole SpeakON Cable Connector with Latch Lock

SKU: NENL4FC

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NL4FC Specifications

General

General

Jump to...
  • Connection Type

    speakON

  • Gender

    Female

Electrical

Jump to...
  • Contact resistance

    <= 3 m Ohm (after lifetime)

  • Dielectric strength

    4 kVdc (peak)

  • Insulation resistance

    > 1 G Ohm (after dampheat)

  • Rated current per contact

    30 A rms continuous
    40 A audiosignal, duty cycle 50 %

  • Rated voltage

    250 V ac

Mechanical

Jump to...
  • Cable O.D.

    6 - 15 mm

  • Cable retention

    >= 220 N (subject to cable O.D. and material)

  • Lifetime

    > 5000 mating cycles

  • Wiresize

    4 sq. mm.
    12 AWG

  • Wiring

    screw type terminals or soldering

  • Locking device

    Quick Lock (latch)

Material

Jump to...
  • Contact plating

    4 microm Ag

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    PBTP 20 % GR

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Polyamide (PA 6 30 % GR)

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Flammability

    UL 94 V-0

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 to 176 Degree F (-30 to +80 Degree C)

  • UPC Code

    7613187003806

About Neutrik NL4FC

Find unparalleled connectivity for your audio setups with the NL4FC 4-Pole SpeakON Cable Connector, featuring a robust latch lock system. This industry-standard connector is designed to deliver extremely reliable and durable connections for loudspeakers and audio equipment, ensuring your sound transmission is uninterrupted and crystal clear.

Crafted by Neutrik, a leader in audio connector innovation, this high-quality 4-pole cable connector is equipped with a chuck type strain relief that not only secures the cable but also prevents wear and tear from repeated use. The solid contacts are designed with screw-type terminals, providing a steadfast connection that accommodates both stranded wire protection and solder termination, making it a versatile choice for various audio setups.

The NL4FC SpeakON connector's easy-to-use locking system is engineered for those who demand a stable and reliable connection, especially in professional environments where every detail in sound quality matters. Its reliable locking mechanism ensures that once connected, your audio performance is seamless and free from the worries of disconnections.

Whether you're setting up a stage for a live performance, installing a sophisticated home theater system, or creating a professional recording studio, this SpeakON cable connector is an essential component for a secure and high-fidelity audio experience. Choose the NL4FC 4-Pole SpeakON Cable Connector for a connection that harmonizes durability, reliability, and exceptional audio quality.

Neutrik NL4FC Features

  • Up to 30 A rms current rating
  • Reliable and robust, easy and fast to assemble
  • Cable strain relief for 6 - 15 mm cable O.D.
  • Accurate and dependable twist lock latching system "Quick Lock"
  • Glass reinforced material for insert and housing, long-lasting and dependable
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Key Features

  • Neutrik-designed 4-pole SpeakON cable connector for superior sound transmission
  • Durable latch lock system ensuring secure and reliable audio connections
  • Chuck type strain relief for enhanced cable longevity and protection
  • Versatile screw-type terminals compatible with stranded wire protection and soldering
  • High-quality, solid contacts for consistent and uninterrupted audio performance
  • Ideal for professional audio setups, live performances, and sophisticated home theaters

What's in the box:

  • NL4FC 4-Pole SpeakON Cable Connector with Latch Lock
  • Neutrik 6 Month Limited Warranty
