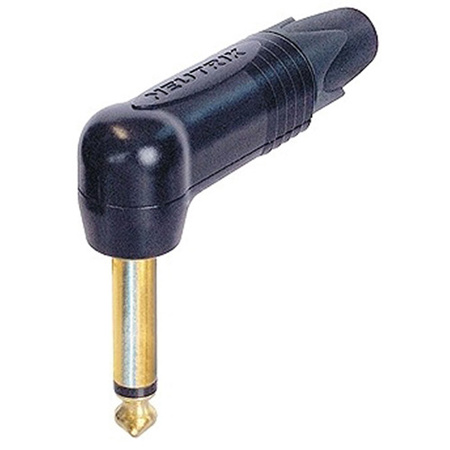

Neutrik NP2RX-B 2-Pole 1/4" Professional Right Angle Phone Plug, Black Shell, Gold Contacts

SKU: NENP2RXB

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NP2RX-B Specifications

General

General

Jump to...
  • Color

    Shell: Black
    Contacts: Gold

  • Connection Type

    Plug

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    depends on mating connector m Ohm

  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 2 G Ohm (initial)

  • Rated current per contact

    depends on mating connector A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    4 - 7 mm

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    1 sq. mm
    18 AWG

  • Wiring

    Solder contacts

  • Bushing

    Polyacetal (POM) + PU

Material

Jump to...
  • Contact plating

    0.2 microm Au

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Standard compliance

    IEC 60603-11 / EIA RS-453

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -4 to 149 Degree F (-20 to +65 Degree C)

About Neutrik NP2RX-B

Be assured of superior connectivity with the NP2RX-B 2-Pole 1/4" Professional Right Angle Phone Plug, featuring a sleek black shell and gold contacts. This durable and high-quality product is manufactured by the reputable brand, Neutrik, renowned for their exceptional audio and video connectors.

Designed with the professional in mind, this right-angle phone plug is versatile and reliable, making it an ideal choice for a variety of applications. Whether you're connecting a phone, an electronic device with a 3.5mm stereo headphone jack, or a device with a 2-pole 1/4" phone plug, this product ensures a seamless connection.

The NP2RX-B boasts a unique Neutrik chuck type strain relief, an improvement on the design of the existing C series. This feature enhances the product's durability and ensures a secure connection, even in the most demanding environments.

The slimline shell, with a width of 14.5mm, is designed to meet the latest requirements for high-density jackfields, with a 15.88mm jack pitch. This compact design makes it easier to connect and disconnect cables, especially in tight spaces, making it a preferred choice for professionals.

The precision-machined one-piece tip contact, devoid of rivets, sets this product apart. This unique design prevents hook up in a socket or break off the tip, ensuring a long-lasting and reliable connection.

The NP2RX-B 2-Pole 1/4" Professional Right Angle Phone Plug is suitable for a wide range of applications, including guitar connections, audio cables, snakes, speakers, amplifiers, and mixing desks. Trust in the quality and reliability of this product for all your audio and video connection needs.

Neutrik NP2RX-B Features

  • All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Key Features

  • Experience top-tier sound with this Neutrik 1/4" phone plug, boasting gold contacts for optimal audio clarity.
  • Achieve reliable connections using this durable, right-angle audio connector, perfect for tight spaces.
  • This professional-grade phone plug offers exceptional shielding, minimizing interference for pristine sound.
  • Enjoy long-lasting performance; this Neutrik connector is built to endure over 1000 mating cycles!
  • Ensure compatibility with your audio setup; this 1/4" plug supports cables 4-7mm in diameter.
  • Get superior conductivity with gold contacts on this robust, black shell audio connector for clear signal.

What's in the box:

  • NP2RX-B 2-Pole 1/4" Professional Right Angle Phone Plug
  • Neutrik 6 Month Limited Warranty
