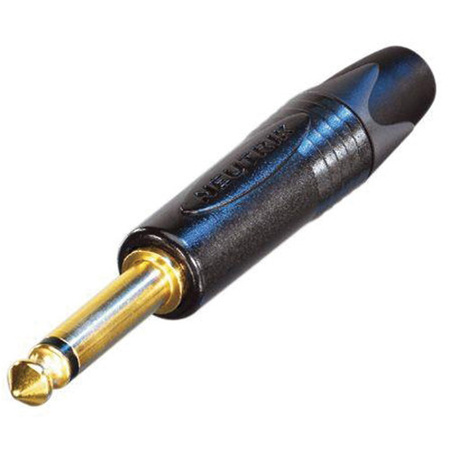

Neutrik NP2X-B 2-Pole 1/4" Male Professional Phone Plug, Black Shell, Gold Contacts

SKU: NENP2XB

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NP2X-B Specifications

General

General

Jump to...
  • Color

    Shell: Black
    Contacts: Gold

  • Connection Type

    Plug

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    depends on mating connector m Ohm

  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 2 G Ohm (initial)

  • Rated current per contact

    depends on mating connector A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    4 - 7 mm

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    1 sq. mm
    18 AWG

  • Wiring

    Solder contacts

  • Bushing

    Polyacetal (POM) + PU

Material

Jump to...
  • Contact plating

    0.2 microm Au

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Standard compliance

    IEC 60603-11 / EIA RS-453

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -4 to 149 Degree F (-20 to +65 Degree C)

About Neutrik NP2X-B

Be at the forefront of professional audio and video connectivity with the NP2X-B 2-Pole 1/4" Male Professional Phone Plug. This high-quality connector, featuring gold contacts and a stylish black shell, is a product of Neutrik, a brand synonymous with excellence in the audio and video industry.

This durable phone plug is designed to withstand the rigors of professional use, making it a reliable choice for live performances, recording studios, and broadcast facilities. The gold contacts offer superior resistance to corrosion, ensuring a long-lasting, stable connection for your audio devices.

The NP2X-B 2-Pole 1/4" Male Professional Phone Plug stands out with its unique Neutrik chuck type strain relief, an improvement on the design of the existing C series. This feature offers the thinnest available A-gauge 1/4" plug on the market, making it a perfect fit for high-density jackfields with a 15.88mm jack pitch.

The slimline shell, measuring a mere 14.5mm in width, not only meets the latest requirements for high-density jackfields but also adds a sleek, professional aesthetic to your audio or video setup.

The plug's one-piece tip contact, precisely machined without rivets, is a unique feature that prevents hook up in a socket or break off the tip. This makes the NP2X-B 2-Pole 1/4" Male Professional Phone Plug an ideal choice for a variety of applications, including guitar connections, audio cables, snakes, speakers, amplifiers, and mixing desks.

Experience the difference in quality and performance with the NP2X-B 2-Pole 1/4" Male Professional Phone Plug, a testament to Neutrik's commitment to innovation and excellence in the professional audio and video industry.

Neutrik NP2X-B Features

  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Key Features

  • Experience superior sound quality with this Neutrik 1/4" male phone plug.
  • Ensure long-lasting durability with the rugged, black Neutrik connector shell.
  • Achieve optimal signal transfer with the gold-plated contacts on this audio plug.
  • Enjoy broad compatibility; this 1/4" phone plug works with many audio devices.
  • Rely on excellent shielding; this audio connector minimizes unwanted interference.
  • Ideal for custom cables, offering secure and professional audio connections.

What's in the box:

  • NP2X-B 2-Pole 1/4" Male Professional Phone Plug
  • Neutrik 6 Month Limited Warranty
