The Nextorage AtomX SSDmini is designed with a compact form that fits the media slots of Atomos devices. It also has a built-in SATA III connector for seamless integration with all Atomos monitor-recorders.
The Nextorage AtomX SSDmini is encased in a rugged aluminum die-cast case that can withstand rigorous heat dissipation and drop tests. It also has a robust connector tested over 3,000 times and shock resistance of up to 1,500G/0.5ms.
The Nextorage AtomX SSDmini can handle professional video and RAW formats. It's certified to record any codec supported on Atomos recorders, including ProRes RAW HQ up to 8Kp30, 5Kp60, and 4Kp120 on Ninja V+ and ProRes RAW HQ 6K up to 30p, 4Kp60, and 2Kp240 on Ninja V.
Yes, an additional AtomX SSDmini Handle can be attached to the Nextorage AtomX SSDmini, allowing for easy insertion and removal from the drive bay of Atomos devices.
The Nextorage AtomX SSDmini offers impressive data transfer speeds, with read speeds of up to 550MB/s and write speeds of up to 500MB/s.
Review Summary
1TB, 500GB
SATA III (6Gbps)
Read: Up to 550 MB/s
Write: Up to 500 MB/s
NPS-AS1TB: 3,000 TB
NPS-AS500: 1,500 TB
104 Degree F - 32 Degree F (0 Degree C - 40 Degree C)
-40 Degree F - 185 Degree F (-40 Degree C - 85 Degree C) (No condensation)
External: 2.97 x 3.14 x 0.36" (75.5 x 80 x 9.3mm)
2.85 oz (81g)
810059750012
For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.
Dedicated to all Atomos recorders

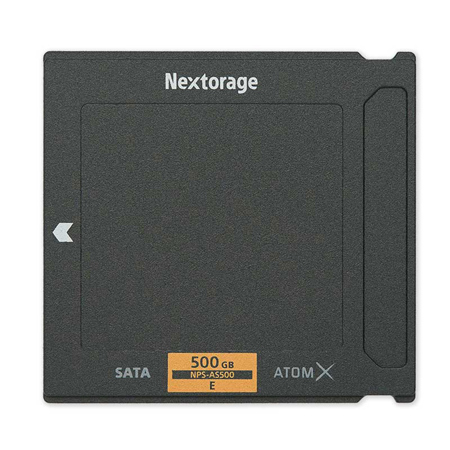

The Nextorage AtomX SSDmini is a compact form factor SSD specifically designed for Atomos recorders. It's 20% smaller than conventional 2.5-inch SSDs and neatly fits into the compact media slot of the Ninja V, Ninja V+, Shogun 7 and Neon devices. Using an adapter handle, it's even compatible with the Sumo 19, Ninja CAST and Shogun Studio 2.
Rugged & Cooler
Coming with a rugged aluminum die-cast case stands the rigorous heat dissipation and drop tests, and a durable connector tested over 3,000 times and shock resistance of up to 1,500G / 0.5ms, the Nextorage AtomX SSDmini is exceptionally reliable in a multitude of use cases.
Record video and RAW without compromise
The Nextorage AtomX SSDmini achieves steady, yet superfast performance at 550MB/s read- and 500MB/s write speed. It's certified to record any codec supported on Atomos recorders, enabling users to shoot in the highest-end Video and RAW formats without dropping a frame.
It's the ideal companion to record ProRes RAW HQ up to 8Kp30, 5Kp60, and 4Kp120 on Ninja V+ and ProRes RAW HQ 6K up to 30p, as well as 4Kp60 and 2Kp240 on Ninja V.
The perfect fit for All Atomos Monitor-Recorders
With a built-in SATA III connector, the Nextorage AtomX SSDmini can be used with all Atomos monitor recorders. For use with the Sumo 19, AtomX CAST, or Shogun Studio 2, just screw the AtomX SSDmini Handle onto the Nextorage AtomX SSDmini. With the handle attached, the drive can be easily inserted and removed from the drive bay, eliminating the need to use Master Caddy II.
Designed for use with: Atomos Ninja
