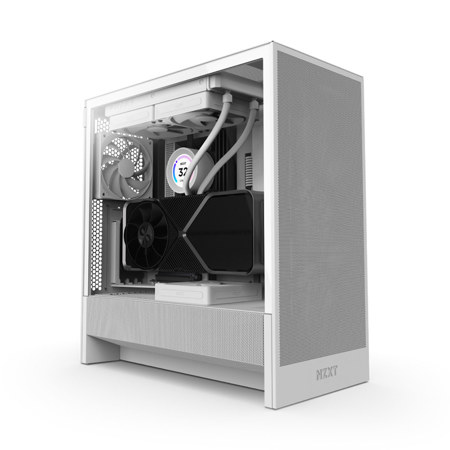

NZXT H5 Flow Compact Tempered Glass ATX Mid-Tower Airflow Computer Case, White

SKU: NZCCH52FW01 MFR: CC-H52FW-01
$109.00
Earn VIP Reward Points

Key Features

  • Optimize airflow with the H5 Flow's perforated front panel for superior cooling.
  • Showcase your build through the sleek tempered glass side panel of this ATX case.
  • Enjoy ample space for components; this mid-tower case supports up to E-ATX boards.
  • Keep your system cool; supports front radiators up to 360mm for liquid cooling setups.
  • Manage cables easily with dedicated routing channels, ensuring a clean PC build.
  • Two pre-installed F120Q fans offer great airflow at low noise in this white case.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NZXT H5 Flow Specifications

General

General

Jump to...
  • Color

    White

  • Material

    Case: SGCC Steel, Ultra-Clear Tempered Glass

  • Motherboard Support

    E-ATX (Up to 277mm wide), ATX, Micro-ATX, Mini-ITX

  • Enclosure Type

    Mid-Tower

Compatibility & Clearance

Jump to...
  • CPU Cooler Height

    Up to 6.69" (170mm)

  • GPU Length

    Up to 16.14" (410mm)

  • PSU Length

    Up to 7.87" (200mm)

  • Cable Management

    Up to 1.12" (28.7mm)

  • Top Radiator

    Up to 9.44" (240mm)
    With low-profile memory: 11.02" (280mm)

  • Top Mounted Thickness

    140mm / 280mm Radiator and Fan Combined: Up to 2.16" (55mm)

Front Ports

Jump to...
  • USB 3.2 Type-A

    1x

  • USB 3.2 Gen 2x2 Type-C (20 Gbps)

    1x

  • Headset Audio Jack

    1x

Expansion Slots

Jump to...
  • Standard

    7

  • Vertical

    0

Drive Bays

Jump to...
  • 2.5"

    2

  • 3.5"

    1

Fan Support

Jump to...
  • Front

    3x 120mm / 2x 140mm (1 x F120Q Case Version included)

  • Top

    2x 120mm / 2x 140mm

  • Bottom

    2x 120mm

  • Rear

    1x 120mm (1 x F120Q Case Version included)

Radiator Support

Jump to...
  • Front

    Up to 360mm

  • Top

    Up to 240mm (280mm with low-profile memory only)

  • Speed

    1,350 +/- 150 RPM

  • Airflow

    60.2 CFM

  • Static

    1.05mm-H2O

  • Noise

    24.1 dBA

  • Fan Connector

    3-pin

Physical

Jump to...
  • Dimensions (H x W x D)

    18.31 x 8.86 x 16.93" (46.5 x 22.5 x 43cm)

  • Weight

    16.04 lbs (7.28kg)

  • UPC Code

    810074845908

About NZXT H5 Flow

You can elevate your PC building experience with the NZXT H5 Flow Compact Tempered Glass ATX Mid-Tower Airflow Computer Case in White. Designed to enhance airflow and GPU cooling, this case features a perforated PSU shroud and mesh panels, ensuring optimal ventilation in a compact mid-tower form factor. The H5 Flow is engineered for high airflow, offering superior GPU cooling and accommodating large radiator setups.

Maximize your system's cooling potential with the mesh PSU shroud, which allows for increased air intake from two 120mm bottom-mounted fans (fans not included). This case supports a 360mm radiator in the front and a 240mm radiator on top, making it ideal for powerful liquid cooling configurations. The ultra-fine mesh panels not only facilitate exceptional airflow but also help filter out dust particles, keeping your components clean and efficient.

The NZXT H5 Flow comes pre-installed with two 120mm Quiet Airflow fans one positioned at the front and another at the rear providing effective cooling right out of the box. Cable management is made easy with wide channels, hooks, and straps, allowing you to effortlessly route and conceal cables for a clean and organized build.

Accessing your components is a breeze with tool-less entry to the front, side, and top panels, making upgrades and maintenance hassle-free. Crafted from thick steel and tempered glass, this case combines durability with a sleek, modern aesthetic, ensuring long-lasting quality and a stylish appearance for your setup.

NZXT H5 Flow Features

  • The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included)
  • Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential
  • Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust
  • Equipped with two 120mm Quiet Airflow fans (CV) - one in front, one in rear, for solid out-of-the-box performance
  • Effortlessly route and conceal cables using the wide channels, hooks, and straps

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Optimize airflow with the H5 Flow's perforated front panel for superior cooling.
  • Showcase your build through the sleek tempered glass side panel of this ATX case.
  • Enjoy ample space for components; this mid-tower case supports up to E-ATX boards.
  • Keep your system cool; supports front radiators up to 360mm for liquid cooling setups.
  • Manage cables easily with dedicated routing channels, ensuring a clean PC build.
  • Two pre-installed F120Q fans offer great airflow at low noise in this white case.

What's in the box:

  • NZXT H5 Flow Compact Tempered Glass ATX Mid-Tower Airflow Computer Case (White)
  • 2x F120Q Fan (Case Version)
  • Mounting Hardware
  • User Manual
  • NZXT 2 Year Limited Warranty
