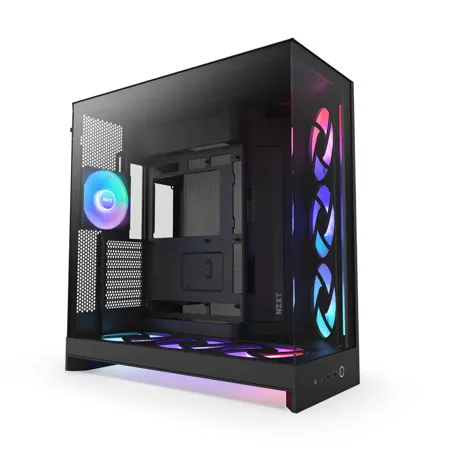

NZXT H9 Flow RGB+ Dual-Chamber ATX Mid-Tower Airflow Computer Case Black

SKU: NZCMH92FBP1 MFR: CM-H92FB-P1
Earn VIP Reward Points

Key Features

  • Experience superior cooling performance with the dual-chamber design, optimizing airflow for your high-end components.
  • Showcase your build with stunning aesthetics, available in various colors to match your personal style and setup.
  • Enjoy versatile compatibility, supporting E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards for diverse PC builds.
  • Benefit from extensive radiator and fan support, ensuring efficient thermal management for even the most demanding systems.
  • Simplify your setup with thoughtful cable management options, keeping your interior clean and enhancing airflow.
  • Connect all your peripherals effortlessly with multiple front I/O ports, including USB 3.2 Type-A and Type-C options.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NZXT H9 Flow RGB+ Dual-Chamber ATX Mid-Tower Airflow Computer Case Specifications

General

General

Jump to...
  • Available Colors

    Black, White

  • Material

    SGCC steel, clear tempered glass (white), tinted tempered glass (black)

  • Enclosure Type

    Mid-tower

  • Motherboard Compatibility

    E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX

  • Rear-Connecting Motherboard Support

    Yes (ATX) (BTF, Project Zero)

  • Country Of Origin

    China

Clearance

Jump to...
  • CPU Cooler Height

    165mm

  • GPU Length

    Up to 459mm (with <56mm thickness fans installed at the front-right)
    Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

  • PSU Length

    200mm

  • Top Radiator & Fan Thickness

    Up to 80mm (360mm)
    Up to 62mm (420mm)

Front I/O Ports

Jump to...
  • USB 3.2 Type-A

    2x

  • USB 3.2 Gen2x2 Type-C

    1x

  • Headset Jack

    1x

Expansion Slots

Jump to...
  • Standard

    7

  • Vertical

    0

Drive Bays

Jump to...
  • 2.5"

    4+2

  • 3.5"

    2

Fan Support

Jump to...
  • Front-Right

    3x 120mm / 3x 140mm (1 x F420 RGB Core included)

  • Top

    3x 120mm / 3x 140mm

  • Bottom

    3x 120mm / 3x 140mm (1 x F420 RGB Core included)

  • Rear

    1x 120mm (1 x F120 RGB (CV) included)

Radiator Support

Jump to...
  • Front-Right

    Up to 420mm

  • Top

    Up to 420mm

  • Bottom

    Up to 360mm

  • Rear

    Up to 120mm

  • Model

    F420 RGB Core
    F120 RGB Core (CV)

  • Speed

    F420 RGB Core: 2,000 +/- 200 RPM
    F120 RGB Core (CV): 1,300 +/- 130 RPM

  • Airflow

    F420 RGB Core: 98.61 CFM
    F120 RGB Core (CV): 55.17 CFM

  • Static Pressure

    F420 RGB Core: 3.2 mmH2O
    F120 RGB Core (CV): 1.27 mmH2O

  • Noise

    F420 RGB Core: 34.5 dBA
    F120 RGB Core (CV): 26.1 dBA

  • Fan Connector

    F420 RGB Core: 8-pin
    F120 RGB Core (CV): 3-pin

Control Hub

Jump to...
  • Fan Channels

    3x NZXT 8-pin (PWM only)
    1x NZXT 8-pin (DC+PWM control)
    1x 4-pin PWM (DC+PWM control)

  • RGB Channels

    4x NZXT 8-pin
    1x NZXT RGB

  • Max LED Support

    Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices

  • System Requirements

    USB 2.0 Internal Header 8-pin PCIe Power

Physical

Jump to...
  • Volume

    4680.52 cu. in (76.7L)

  • Dimensions (H x W x D)

    19.9 x 12.4 x 18.9" (506 x 315 x 481mm)

  • Weight

    29.54 lbs (13.4kg)

  • UPC Codes

    Black: 810074847896 | White: 810074847889

About NZXT H9 Flow RGB+ Dual-Chamber ATX Mid-Tower Airflow Computer Case

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

Dual-Chamber Design
Separates main components from the PSU and drives for improved thermal performance and cable management.

Optimized Airflow
Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

RGB Ready
Includes two F420 RGB Core single-frame fans, one F120 RGB Core (CV) fan in the rear, and an NZXT Control Hub. CV = Case Version (3-pin DC)

Ten-Fan Capacity
Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

Panoramic View
Showcase every detail of your build with seamless, wraparound tempered glass paneling.

Large Radiators & GPUs
Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

Easy Cable Management
Extra-wide channels, built-in Self-Securing Closure straps, and tie-down points make cable routing effortless.

Back-Connect Ready
Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

Built to Flow. Made to Show
The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.

NZXT H9 Flow RGB+ Dual-Chamber ATX Mid-Tower Airflow Computer Case Features

  • Optimized Airflow: Angled front-right fans and an airflow-optimized layout keep temps low and performance steady
  • Mesh Panels: Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust
  • Spacious Dual-Chamber: Separates heat-generating components for improved airflow and a cleaner build
  • 10-Fan Cooling: Fits up to nine140 mm fans and one120 mm rear fan
  • Large Radiator Support: Holds up to 420mm radiators on the top and front-right panels for versatile cooling
  • Maximum Graphics: Handles GPUs up to 435mm, giving plenty of space for top-tier graphics cards
  • Back-Connect Ready: Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look
  • Easy Cable Management: Extra-wide channels, Self-Securing Closure straps, and tie-down points make cable routing simple

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior cooling performance with the dual-chamber design, optimizing airflow for your high-end components.
  • Showcase your build with stunning aesthetics, available in various colors to match your personal style and setup.
  • Enjoy versatile compatibility, supporting E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards for diverse PC builds.
  • Benefit from extensive radiator and fan support, ensuring efficient thermal management for even the most demanding systems.
  • Simplify your setup with thoughtful cable management options, keeping your interior clean and enhancing airflow.
  • Connect all your peripherals effortlessly with multiple front I/O ports, including USB 3.2 Type-A and Type-C options.

What's in the box:

  • NZXT H9 Flow RGB+ Dual-Chamber ATX Mid-Tower Airflow Computer Case
  • 2x Pre-Installed F420 RGB Core Fan
  • Pre-Installed F120 RGB Core Fan (CV)
  • Control Hub
  • Mounting Hardware
  • User Manual
  • NZXT 2 Year Limited Warranty
