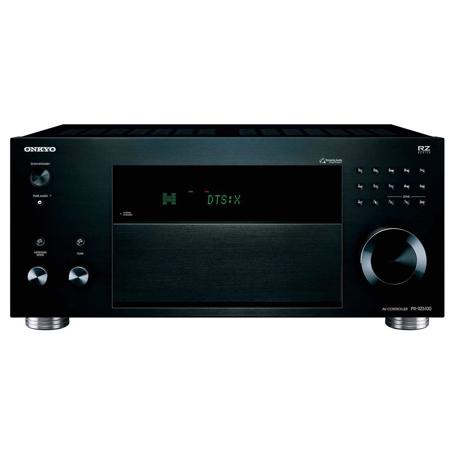

Onkyo PR-RZ5100 11.2-Channel Network A/V Preamplifier

SKU: ONPRRZ5100

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Onkyo PR-RZ5100 Specifications

General

General

Jump to...
  • Input Sensitivity/Impedance

    Line: 200 mV / 82 kOhms
    Phono MM: 3.5 mV / 47 kOhms

  • RCA Output Level and Impedance

    Zone Out: 200 mV / 1.2 kOhms
    Zone Pre-Out: 2 V / 1.2 kOhms
    Pre-Out / Subwoofer Pre-Out: 1 V / 330 Ohms

  • Phono Overload

    70 mV (MM, 1 kHz 0.5 %)

  • Frequency Response

    Direct Mode: 5 Hz to 100 kHz / +1 dB, -3 dB

  • Tone Control

    Bass, Treble: +/-10 dB, 20 Hz

  • Signal to Noise Ratio

    Line, IHF-A: 110 dB
    Phono, IHF-A: 80 dB

  • Digital Inputs

    8x HDMI
    3x Optical TOSLINK
    2x Digital coaxial
    1x USB (rear)

  • Analog Input

    7x Stereo RCA (1 phono)
    2x RCA component video
    2x RCA composite video

  • Wireless Connectivity

    Apple AirPlay
    FireConnect ready
    Google Cast

  • Digital Outputs

    2x HDMI

  • Analog Output

    1x Component video
    1x 0.25" (6.3mm) headphone output

  • Pre-Out

    11.2-channel XLR
    11.2-channel RCA

Control Connectors

Jump to...
  • I/O

    1x 12 V assignable trigger out with IR input
    1x RS232

Physical Characteristics

Jump to...
  • Power Requirements

    120 VAC, 60 Hz

  • Power Consumption (Operating)

    65 A

  • Power Consumption (Standby)

    0.15 W

  • Dimensions (W x H x D)

    17.1 x 17.8 x 18.4" (435 x 199 x 466.5mm)

  • Weight

    30.9 lb (14kg)

  • UPC Code

    889951000273

About Onkyo PR-RZ5100

Processing Prowess, Integration Ready

Update your lovingly assembled home theater and join the object-based sound revolution with a flexible and sophisticated controller capable of delivering a full-scale multidimensional surround-sound experience without caveat or compromise. DTS:X and Dolby Atmos formats are decoded and sent to your power-amp and floorstanding/in-ceiling speaker layout with utmost fidelity through RCA or XLR pre-outs, unlocking a truly immersive theater experience.

Works with Sonos
With Sonos Connect, the awesome home theater you've built around your Onkyo receiver can now be part of your existing Sonos Home Sound System, or the start of a new one. Instantly upgrade the music streaming capability of your home theater with Sonos Connect and a free firmware update. After a simple set up, your Onkyo A/V receiver will seamlessly tie into Sonos, instantly waking, changing inputs and playing at the volume you command through the familiar Sonos app.

Ready for DTS Play-Fi Multi-room Audio
The DTS Play-Fi app for iPad, iPhone, Android, Kindle Fire, and Windows PC lets you stream from online services, media server, or device library over Wi-Fi to any number of compatible speakers. DTS Play-Fi connects systems for synchronized music in every room, and can stream different music to different rooms from the same device. Speakers can be used individually with unique devices at the same time, and lossless audio is supported.

Music Made Easy with Chromecast built-in
Stream any music from your smartphone, laptop, or PC to the PR-RZ5100 with ease. Control playback with Chromecast enabled apps you know and love from your iPhone, iPad, Android phone or tablet, Mac or Windows laptop, or Chromebook.

THX Ultra2 Plus for Reference Sound
THX Certification guarantees the same high-volume sound you experience in a multiplex theater. Your PR-RZ5100 processor has passed more than 2,000 laboratory tests to ensure every aspect of audio performance meets rigorous standards for theater-reference sound.THX Ultra2 Plus is recommended for screen-to-seat viewing distances greater than 12 feet and for room volumes 3000 cubic feet or greater.

Engineered for Hi-Res Audio
The PR-RZ5100 is engineered for universal hi-res compatibility and ease of use. It's now remarkably easy to enjoy albums mastered in high-resolution that you've downloaded and stored on your computer or media server. Almost every hi-res and lossless format is supported, from gapless FLAC and WAV to ALAC and WMA. The PR-RZ5100 also handles 11.2 MHz DSD, 192/24 PCM and Dolby TrueHD formats for the ultimate in depth and clarity.

Chromecast built-in, AirPlay, Wi-Fi and Bluetooth
Most smartphone and PC music apps let you mirror what's playing to your PR-RZ5100 within moments using Chromecast built-in. The receiver also features AirPlay, Bluetooth, and Wi-Fi for universal wireless audio support, including DSD up to 11.2 MHz.

Housewide Playback of Any Source
Put extra speakers you have to good use-plug them in to an external power amp connected to the controller using its Zone 2 and Zone 3 pre-/line-outs. Dedicated DACs and smartphone control app lets you manage digital and analog content via the controller in any zone.

Engineered for Audio-Video Perfection
Cutting-edge audio-video processing and handcrafted construction combine to deliver a vivid and immersive entertainment experience. At the heart of the PR-RZ5100 are dual Analog Devices SHARC processors capable of up to six billion operations per second. Digital-to-analog audio conversion comes courtesy of discrete high performance AKM 32-bit DACs. From source device to output, audio and video signals are kept clean and clear for optimal performance.

Noiseless Signal Processing with VLSC
No matter how good the DAC, pulse noise is an inevitable consequence of digital-to-analog conversion. VLSC (Vector Linear Shaping Circuitry) compares vectors from the input/output signal and uses that information to erase digital noise. A pure, noise-free analog signal is fed to your amps, resulting in improved detail resolution and clarity.

Get the Complete DTS:X and Dolby Atmos Experience
With 11.2 pre-amp channels, you can let your speakers deliver a complete multidimensional movie experience in your home theater through a 7.2.4 layout. Dolby Atmos and DTS:X unlock sound from conventional channels and free audio to move above and around the audience for a thoroughly captivating and immersive movie experience.

This Onkyo PR-RZ5100 features Dual 32-bit DSP engines to decode and scale DTS:X and Dolby Atmos to your home theater layout. Additionally, a Dolby surround up-mixer allows for your current channel-based content (that has not been mixed for Dolby Atmos) to be expanded to fill the flexible speaker layouts of a Dolby Atmos system.

DTS Neural:X retrieves spacial cues from standard multichannel formats and upmixes for a 3D soundtrack that's virtually identical to a native DTS:X source, giving your existing Blu-ray library a new lease on life.

Welcome to a new world of sound that delivers the full impact of tertainment.

Supports HDR10, Dolby Vision, BT.2020, 4K/60 Hz, and HDCP 2.2
Seven rear HDMI inputs (HDMI 1-7), Main Out, and Sub/Zone 2 Out support pass-through of HDR10, and Dolby Vision; the BT.2020 4K color standard; 4K/60 Hz video playback; and HDCP 2.2 for premium video content. Front HDMI terminal is ideal for temporary device connections.

Spotify, Pandora, Deezer, TIDAL, and TuneIn
Enjoy the music you want any time on your home theater via Spotify, Pandora, Deezer, TIDAL, and TuneIn.

FlareConnect Multi-Room Audio
The PR-RZ5100 includes industry-leading cast anything playing through your receiver, including vinyl and streaming audio, to compatible speakers around your home using FlareConnect technology. Manage multi-zone playback with our free smartphone app.

Cohesive Multi-Dimensional Sound
AccuReflex, part of the AccuEQ room calibration suite, phase-matches height and floor-standing speakers for transparent and seamless reproduction of object-based sound. AccuEQ optimizes the entire system to suit your space without affecting front-speaker characteristics for pure stereo listening.

Limitless Performance. Installation Friendly.
The Onkyo RZ Series was designed for home theater integration and performance above and beyond your expectations. From multi-zone audio and video options to dedicated RZ Series phone support and a three-year product warranty, the Onkyo RZ Series delivers superior audio performance in the configurations you want with the support you should expect from the leader in home audio.

Additional Features

Preamplifier
• # Channels: 11.2
• THX Certified: Ultra2 Plus
• Signal-to-Noise Ratio 110 dB (LINE, IHF-A): 80 dB (Phono MM, IHF-A)
• Discrete Output Stage Circuitry: Yes
• Independent Block Construction (Analog/Digital): Yes
• Bi-amp Capability For Front: Yes

Processing
• Dolby Atmos: Yes
• 32-Bit Digital Signal Processing Engine: Yes
• Dolby Decoder: Atmos, True HD, DD Plus, PLIIz
• DTS:X: Yes
• DTS Decoder:DTS:X, DTS-HD Master Audio
• ONKYO GAME Surround Modes: Yes (Rock, Sports, Action, RPG)
• VLSC for Noiseless Audio Processing: Yes (All Channels)
• THX Processing Mode: Yes
• AccuEQ Room Calibration: Yes (w/ AccuReflex)
• Direct/Pure Mode: X / X
• Advanced Music Optimizer: Yes
• 384K/32 Bit DACs: Yes

Connectivity
• Audio I/O: 7 / 0
• Phono Input: Yes
• Digital Audio IN (OPT/COAX): 3 / 2
• Composite I/O: 2 / 0
• Component Video I/O: 2 / 1
• Front Panel HDMI: Yes
• USB Input: Yes (Rear)
• HDMI I/O: 8 / 2
• HDMI 4K/60 Hz- Capable HDMI Terminals: Yes
• HDCP 2.2 Copy-Protection Compatibility: Yes
• HDMI Support for High Dynamic Range: Yes (Dolby Vision via firmware update)
• HDMI Support for 3D, Audio Return Channel and CEC: Yes
• HDR10 and BT.2020 Support: Yes
• HDMI Support for Deep Color, x.v.Color, LipSync: Yes
• HDMI Support for DVD-Audio, SACD, Multichannel PCM: Yes
• Analog To HDMI Upconversion: Yes
• 1080p to 4K Upscaling: Yes
• 4K Passthrough: Yes
• Analog Pre-Outs: 11.2 Ch
• XLR Balanced Audio Pre-outs: 11.2 Ch
• Zone 2 Line Out: Yes
• Zone 2 Video Out: Yes
• Zone 2 Digital to Analog Audio Conversion: Yes (Net/SPDIF/HDMI)
• Zone 3 Line Out: Yes
• Whole House Mode: Yes
• FlareConnect Multi-room Audio: Yes
• Airplay: Yes
• Chromecast built-in: Yes
• Supports Onkyo Controller App: Yes
• Internet Radio Capable: Yes
• Spotify Connect Support: Yes
• Tidal: Yes
• Streaming Audio From PC / Network: Yes
• Hi-Res Streaming Audio Formats: Yes
• Streaming Audio From USB memory: Yes
• Wireless Network IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz
• Bluetooth: Yes (Built-in)
• PC Input (15 pin D-sub): Yes

Integration Access
• RS-232: Yes
• IR Input: Yes
• Ethernet: Yes
• ONKYO-RI System Control: Yes
• RIHD (Remote Interactive Over HDMI): Yes
• 12V Trigger: Yes

Miscellaneous
• Hybrid Standby Function: Yes (to Reduce Power Consumption)
• Smart Grid-Ready: Yes
• Auto Speaker Calibration W/Mic.: AccuEQ w/AccuReflex
• OSD Out: Yes
• Solid Aluminum Front: Yes
• Detachable AC Cord: Yes

Onkyo PR-RZ5100 Features

  • PR-RZ5100 Features:
  • THX Ultra2 Plus Certification
  • DTS:X and Dolby Atmos to 7.2.4 Channels
  • DTS Neural:X Upmixing for Legacy Multichannel Formats
  • Chromecast built-in, DTS Play-Fi, AirPlay, Wi-Fi, and Bluetooth Audio Streaming
  • AccuEQ Room Calibration with AccuReflex Technology
  • FlareConnect Multi-Room Wireless Technology
  • HDMI 8 In (1 Front), Main Out, Zone 2 Out (HDCP 2.2/HDR Pass-through)
  • Advanced Features:
  • THX Ultra2 Plus Theater-Reference Audio Performance
  • 7.2.4-channel DTS:X and Dolby Atmos Object-based Audio Decoding
  • DTS Neural:X Upmixes Standard 5.1 and 7.1 formats to 3D Sound
  • HDMI Supports 4K/60 Hz, BT.2020, HDR (HDR10/Dolby Vision) Pass-through, 4:4:4 Color Space, and HDCP 2.2-protected Video
  • Customized and Shielded Low-Hum Transformer and Separate Transformer for Standby
  • VLSC (Vector Linear Shaping Circuitry) Noise-free Signal Processing for All Channels
  • Chromecast built-in, DTS Play-Fi, AirPlay, Wi-Fi, Bluetooth, TuneIn, Pandora, Spotify, TIDAL, and Deezer Audio Streaming
  • MP3, WMA, WMA Lossless, FLAC, WAV, AAC, and Apple Lossless Playback Over Network and USB
  • Network Hi-Res Audio (DSD 11.2 MHz, 192/24 PCM, Dolby TrueHD)
  • Whole House Mode
  • AccuEQ Calibration with AccuReflex for Seamless Object-based, Multichannel, and Stereo Sound (Setup Mic Included)
  • FlareConnect Multi-room Audio Distribution to Compatible Components and Speakers
  • 11.2 Multichannel and XLR Pre-Outs for Amplifier Connection
  • PLL (Phase Locked Loop) Jitter-Cleaning Circuitry for S/PDIF Audio
  • Onkyo Controller 4 App for iOS and Android Devices
  • Processing Features:
  • HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor, x.v.Color, LipSync, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround, DTS:X, DTS-HD Master Audio, DTS 96/24, DTS-ES, DTS Express, DTS Neural:X, THX Cinema/Music/Game,DVD-Audio, Super Audio CD, Multichannel PCM, and CEC Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Au
  • Separate 384 kHz/32-bit AK4490 Stereo DAC (Front L/R), 2x 768 kHz/32-bit AK4458 Multichannel DACs (Surround Channels)
  • Discrete 192 kHz/24-bit AK4388 Stereo DACs (x2) for Zone 2 and Zone 3
  • Multiple 32-bit Digital Signal Processing Engines
  • 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
  • Theater-Dimensional Virtual Surround Function
  • Direct Mode and Pure Audio Mode
  • Connection Features:
  • 8 HDMI Inputs (1 Front/7 Rear), Main, and Zone 2 Outputs
  • Component Video Switching (2 Inputs and 1 Output) and 2 Composite Video Inputs
  • 5 Digital Audio Inputs (3 Optical and 2 Coaxial) and 7 Analog Audio Inputs
  • Phono Input (MM) for Turntable Connection
  • Mass Storage Class USB Memory Playback Capability (Rear Input)
  • 11.2 Multichannel and XLR Pre-Outs
  • Zone 2 and Zone 3 Pre-/Line Outs
  • Dual Subwoofer Pre-Outs
  • 12 V Trigger Out (Assignable) with IR Input; Supports IP and RS232
  • 1/8" (6.3mm) Headphone Input
  • Other Features
  • Tone Controls (Bass/Treble) +/-10 dB for All Channels
  • Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
  • A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
  • New Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Setup Function
  • Hybrid Standby Function with HDMI Passthrough
  • 40 FM/AM and 40 Internet Radio Station Presets
  • RIHD (Remote Interactive Over HDMI) for System Control
  • Aluminum Front Panel and Volume Control Knob
  • Simple Remote Control

Key Features

  • THX Ultra2 Plus Certification
  • Native DTS:X and Dolby Atmos to 7.2.4 Channels
  • DTS Neural:X Upmixing for Legacy Multichannel Formats
  • Chromecast built-in, AirPlay, Wi-Fi, and Bluetooth App Streaming
  • AccuEQ Room Calibration with AccuReflex Technology
  • FlareConnect Multi-Room Wireless Technology

What's in the box:

  • PR-RZ5100 11.2-Channel Network A/V Preamplifier
  • Indoor FM Antenna
  • AM loop Antenna
  • Speaker Setup Microphone
  • Remote Controller
  • 2x AA Batteries (R6)
  • Instruction Manual
  • Onkyo 3 Year Limited Warranty
