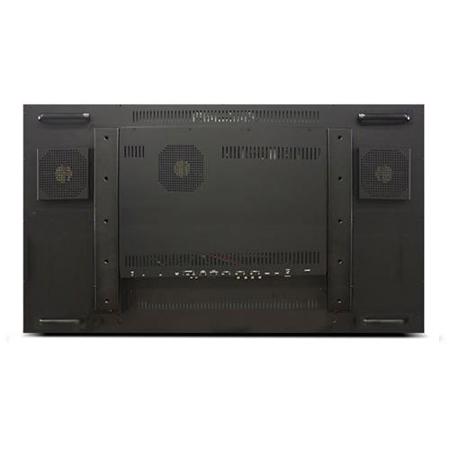

Orion Images R4K Series 65" 4K UHD Video Wall LCD Monitor with Narrow Bezel and Built-in Speakers, 3840x2160

SKU: ONR4K654KNB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Orion Images R4K65NNU Specifications

Display

Display

Jump to...
  • Screen Size

    65"

  • Bezel Width

    20.4mm (0.80")

  • Maximum Resolution

    3840 x 2160 at 60Hz

  • Backlight Unit

    LCD

  • Pixel Pitch

    0.372 x 0.372mm

  • Brightness

    500cd/m2

  • Contrast Ratio

    1100:1

  • Aspect Ratio

    16:9

  • Viewing Angle

    178 deg. / 178 deg. (H/V)

  • Display Color

    1.07 Billion (10bits)

  • Response Time

    < 8ms (Gray to Gray)

  • Video System

    NTSC / PAL

Interface

Jump to...
  • Display Port In (ver. 1.2)

    1

  • HDMI In / Out

    1/1

  • DVI In / Out

    1/1

  • RS-232 In / Out

    1/1

  • Audio Out (3.5mm)

    1

  • VGA In (15 Pin D-Sub)

    1

Transmitter

Jump to...
  • IR Remote Control

    Yes

  • Built-in Speakers

    Yes (2x 10W)

Monitor Functions

Jump to...
  • Multi Display Function

    Yes (PIP / PBP / QUAD)

  • Temperature Sensor

    Yes (Option)

  • De-Interlace

    Yes

  • Noise Reduction

    Yes

  • One Image Up to 15 x 15

    Yes

  • Auto Fan Control System

    Yes (Option)

  • Auto Pixel Shift

    Yes

  • Auto Source Switching

    Yes

  • Edge Setting (H / V)

    Yes

  • Advance Auto Power Recovery

    Yes

  • Multi Language

    English, Spanish, French, German

  • RS-232C Control

    Monitor OSD control using PC

Cabinet

Jump to...
  • Material

    Electro-Galvanized Steel

  • Consumption

    <150W

  • Electrical Ratings

    AC 100-240V (50/60Hz)

Circumstance

Jump to...
  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • VESA Mount Size

    800 x 600mm

  • Stand Alone

    WB-7080

  • Video Wall

    WSD, WES, WFS, WSR

General

Jump to...
  • Dimensions (WxHxD)

    57.27 x 32.77 x 4.07" (145.47 x 83.24 x 10.34cm)

  • Weight

    116.85 lbs (53.00kg)

About Orion Images R4K65NNU

The R4K (UHD) Series of LCD Displays is the perfect solution for ultra-high definition video walls. Equipped with a standalone 3840 x 2160 resolution panel and the ability to take a single video source and displaying across the entire Video Wall; it is an excellent choice for command & control centers, corporate, AV and digital signage applications. Various Video Wall configurations up to 15 x 15 are available.

Video Walls for Security Center, Control Rooms, Commercial AV, Professional AV
The RNK monitor series can be used for applications in shopping malls, airports, stadiums, lobby signage and boardrooms just to name a few. Whether a small lobby display or an extra large video wall, the R4K series makes a statement. Public display signage with dynamic content receives far more eye contact than with static content and creates cost effective opportunities to improve brand recognition, customer service, safety, training and communications.

Unlike plasma technology, LCD video walls require less power and our built in auto pixel shift feature prevents against image burn in of static content. Individually mounted consumer grade monitors leave gaps between the monitors but with our super & ultra narrow bezels, there are virtually no gaps between monitors in a tiled video wall.

• Security / Control Rooms
• Retail
• Universities & colleges
• Corporations
• Transportation
• Health Care & Medical
• Government
• Financial Institutions
• Hospitality
• Casino

Orion Images R4K65NNU Features

  • Spread 1 image across multiple monitors using 1 video source
  • Configure up to a 15 x 15
  • Video Wall Processor built in
  • Remote Display Management
  • Landscape and Portrait
  • HDMI & DVI-D In / Out
  • Display Port Input (VGA in)
  • RS-232C In / Out for pc / server control
  • Control panel Lock (panel or IR)
  • All metal chassis
  • Auto power recovery / Auto pixel shift
  • PIP / PBP / QUAD Displays
  • VESA standard hole patterns

What's in the box:

  • Orion Images R4K Series 65 " 4K UHD Video Wall LCD Monitor with Narrow Bezel and Built-in Speakers
  • IR Remote Control
  • Orion Images 3 Year Parts and Labor Warranty
