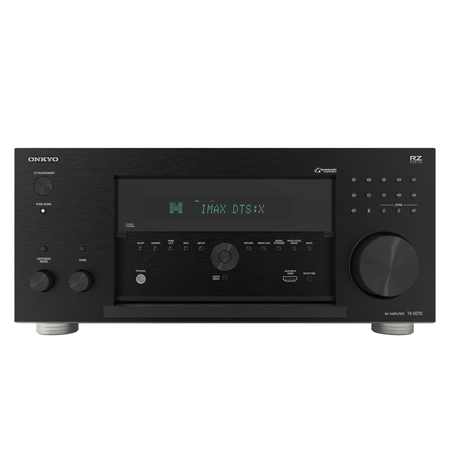

Onkyo TX-RZ70 140W 11.2-Channel 8K/4K Network A/V Receiver

SKU: ONTXRZ70

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Terrence C : Great receiver, great price!SIVAKUMAR T : Excellent specs with high powerBalu V : cutting edge features and latest model

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Onkyo TX-RZ70 Specifications

Amplifier

Amplifier

Jump to...
  • Channels

    11.2
    7.2.4

  • Amplifier Class

    Class-AB

  • Power Output per Channel

    140 W at 8 Ohms

  • Frequency Response

    10 Hz to 100 kHz +1/-3 dB

  • THD+N

    0.08% (20 Hz to 20 kHz)

  • Speaker Impedance

    4 to 16 Ohms

Audio Processing

Jump to...
  • DTS Compatibility

    DTS Neural:X, DTS:X, IMAX Enhanced

  • Dolby Compatibility

    Dolby Atmos, Dolby Surround

  • Auro 3D Support

    Yes

  • Upmixing Technology

    Dolby Surround, DTS Neural:X, Dolby Atmos Height Virtualization Technology

  • HDR Compatibility

    HDR10+, Dolby Vision

  • Upscaling

    None

Connectivity

Jump to...
  • Rear A/V Inputs

    6x HDMI 2.1
    4x Stereo RCA Composite
    1x Stereo RCA (Phono) with Ground Screw Composite
    2x RCA Composite
    1x 3RCA Component
    2x Digital Coaxial
    2x Optical TOSLINK

  • Rear A/V Outputs

    3x HDMI 2.1 Zone 2
    2x RCA Subwoofer Pre-Out
    1x Stereo RCA Composite Zone 3 Pre-/Line-Out
    1x Stereo RCA Composite Zone 2 / Zone B Line-Out
    3x Stereo RCA Composite Pre-Out
    2x Stereo RCA Composite Height Pre-Out
    1x RCA Composite Pre-Out

  • Front I/O

    1x HDMI Input
    1x 1/4" (6.35mm) Headphone Output
    1x 1/8" (3.5mm) Setup Mic Input

  • Other Rear I/O

    1x AM Block Input
    1x FM Coaxial F-Type Input
    1x RJ45 (Ethernet) Input/Output
    1x USB-A Input/Output
    1x 1/8" (3.5mm) (12 V Trigger) Output
    1x 1/8" (3.5mm) (IR) Input
    1x DE-9 (RS-232C) Input

  • Speaker I/O

    13x Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround)

  • HDCP Support

    Yes, Version 2.3

  • Audio Return Channel (ARC)

    eARC

  • HDMI CEC

    Yes

  • Bi-Amp Capability

    Yes

Wireless Connectivity

Jump to...
  • Wi-Fi

    Yes

  • Bluetooth

    Yes

  • Supported Audio Codecs

    AAC, aptX, aptX HD, SBC

  • Wireless Audio Protocols

    AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Ready, Spotify Connect

Control

Jump to...
  • Virtual Assistant

    Apple AirPlay, Works with Alexa, Works with Google Assistant

  • Mobile App Compatible

    Yes

  • AC Input Power

    120 VAC, 60 Hz

  • Power Consumption

    Maximum: 1095 W

Physical

Jump to...
  • Dimensions (W x H x D)

    17.1 x 7.9 x 18.9" (435 x 201 x 480mm)

  • Weight

    48.5 lbs (22kg)

  • UPC Code

    889951003892

About Onkyo TX-RZ70

The all-new TX-RZ70 delivers remarkably pure sound, stellar visuals and the latest technologies to power the heart of your home entertainment system. Rest easy: With uncompromising high resolution audio/video reproduction, you'll enjoy movies, music and games exactly as the creators intended.

11 Channels, 140 Watts
Home theater buffs rejoice! The Onkyo TX-RZ70 is our most powerful AVR yet, giving you the power to design the ultimate entertainment space with discrete zones, multiple subwoofers, and high-performance components that won't overheat or lag.

Studio Grade Processing
Built by and for audiophiles, but intuitively built for the everyman. Utilizing the very latest audio technology including ESS Sabre DACs, THX Certification, and eARC functionality, the Onkyo TX-RZ70 overdelivers on premium home theater performance.

• HDMI & Video Inputs
• 8K/4K Ultra HD
• Dolby Vision
• HDMI 2.1
• HDCP2.3 and HDR10+

Dirac Live Technologies
You deserve an AVR that adapts to your life, not the other way around. With built-in Dirac Live Room Calibration Full Bandwidth, the Onkyo TX-RZ70 uses machine learning to perfectly adapt and calibrate your audio settings to your unique speaker system and room layout. And big bass fans can upgrade their system with Dirac Live Bass Control Single/Multi Subwoofer for optimal calibration of the lowest tones.

IMAX Enhanced Mode
Bring the theater experience to your home by recreating IMAX content just as filmmakers intended. The TX-RZ70 meets the precise quality standards established by IMAX to reduce noise and grain to produce brighter, clearer pictures, plus immersive sound for the ultimate cinema experience. IMAX Enhanced Mode also provides a stretched aspect ratio for up to 26% more picture on your screen.

THX Certified
In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified, after thousands of tests. No matter what input is used, what combination of built-in features are used, what preamplifier or amplifier, there can be absolutely nothing added, nothing taken away from the source material. And the TX-RZ70 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.

Klipsch Optimize Mode
Klipsch and Onkyo teamed up to implement the precise crossover values for specific new speakers, so you can easily and seamlessly integrate your Klipsch Reference and Reference Premiere speakers with your new Onkyo AVR. Simply select the model of speaker for each channel, and the optimized crossover setting will be automatically applied.

Advanced Music Streaming & Connectivity
Our customers are precise and value the latest technology. That's why we've included a host of built-in options for your favorite streaming apps and smart home assistants.

Ready For DTS Play-Fi
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.

Works With Sonos Certified
This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app. The TX-RZ70 can work with up to three Sonos Ports-one for each of three independent zones-each playing a completely different streaming service from Sonos Radio.

Multi-Zone Streaming & Voice Control
The Onkyo TX-RZ70 11.4-Channel THX Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.

The Ultimate 4K Gaming Experience
Made with gamers in mind, 4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp. Sports, action movies and high-performance gaming benefit significantly.

Discrete Zone 2 HDMI Switching
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.

Bi-Directional Bluetooth Technology
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.

Onkyo TX-RZ70 Features

  • Wi-Fi/Bluetooth
  • Dirac Live Room Correction
  • Optional Dirac Live Bass Control
  • THX Certified for Theater Reference Sound
  • Klipsch Optimized Mode

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Wi-Fi/Bluetooth
  • Dirac Live Room Correction
  • Optional Dirac Live Bass Control
  • THX Certified for Theater Reference Sound
  • Klipsch Optimized Mode

What's in the box:

  • Onkyo TX-RZ70 140W 11.2-Channel Network A/V Receiver
  • Remote Control
  • 2x AAA Batteries
  • Speaker Setup Microphone
  • Indoor FM Antenna
  • AM Loop Antenna
  • Power Cord
  • User Manual
  • Onkyo 2 Year Limited Warranty
