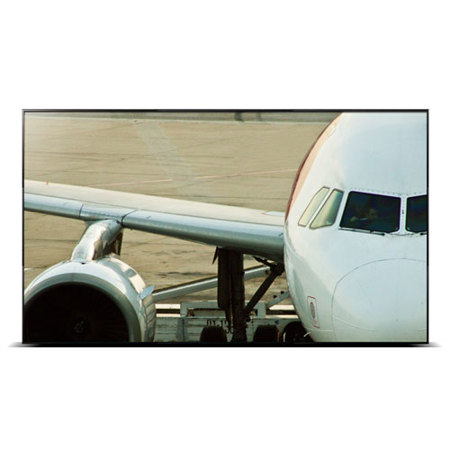

Orion Images RNK46UNF 46" Video Wall Full HD LED Monitor, 1920x1080

ORION Images is a true manufacturer of LCD CCTV monitors. The ORION Images monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Their monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.

• 46 Inch Screen Size Full HD Ultra Narrow Bezel Video Wall
• 2.3mm / 1.2mm Ultra Narrow Bezel Width is Perfect for tight mounting Video Wall
• 1920 x 1080p Full HD Resolution
• Video (BNC Type) 2 In / 2 Out, HDMI 1 In / 1 Out, DVI-D 1 In / 1 Out, VGA 1 In / 1 Out, Audio 2 In, RS232 1 In / 1 Out, PC Stereo 1 In, Speaker 1 Out
• View Dual Input Sources on 1 Monitor via PBP
• RS-232C In & Out for Controlling the Monitors
• Perfect for both Video Wall or Independent Mount Solutions
• RNK Video Wall has Immediate Benefits for Security Room, Retail, Shopping Mall, Corporation, Broadcast, Transportation, Government, Health Care, Casino and more
• Optional Video Wall Mount Solutions

ORION Images is leading the market as being an expert in control room solutions for broadcasting, telecommunications, public utilities, process control, traffic control, surveillance and command & control applications. Their LCD video wall solutions are ideal for Emergency Operations Centers, traffic and surveillance centers and utilities and process control rooms. The ORION Images 46 inch RNK46UNF with 2.3mm / 1.2mm ultra narrow Bezel Multi Vision Video Wall Series is perfect solution for Displaying 1 image across multiple monitors using 1 video source up to a 20 x 20 configuration.

In addition, this solution can also be used for corporate AV and Digital Signage applications such as shopping malls, airports, stadiums, retail, casino and more. Whether small lobby display or extra large video walls, the tiled RNK series makes statement. Public Display Signage receives 10 times the eye contact of static signage and is creating cost-effective opportunities to improve customer service, safety, way finding, branding, training and communications.

Unlike plasma technology, LCD & LED video walls require less power consumption and with auto pixel shift built in they are not subject to permanent, irreversible burn-in. Unlike individual mount LCD's that leave gaps between each monitor, tiled video walls offer more flexibility, scalability and the possibility for a higher resolution.

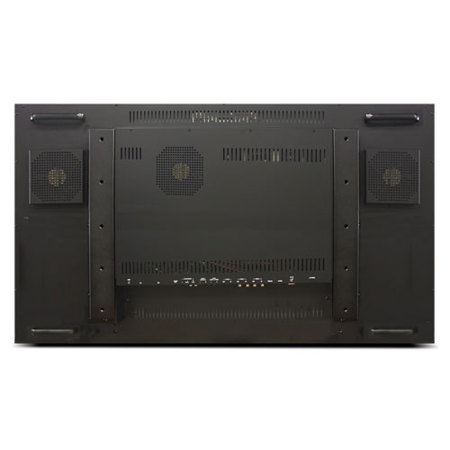

ORION Images provides various mount solutions including wall mount scissor & door styles as well as free standing options. The video wall displays can be easily accessed from the rear without taking the monitor down. They require no back room space at all, so they are ideally suited for control rooms where space is limited. The high resolution and sharp viewing angle allows operators to sit close by and monitor high-density information. Orion Images will help you determine the right display for your application.

Control Management Software
• Extremely easy to use
• Control each display Separately or All at once
• Select 1 or multiple monitor viewing configurations
• Multi Vision options: example - 5x5 (boarder) from DVI and 3x3 (in the center)
• Schedule a sequence of multiple display content configurations
• File Management Save and store edited contents for easy replay access
• Select input source
• Menu lock out (IR or panel)
• Power control - On / Off
• Color setting (RGB) & Brightness
• Edge setting (horizontal & vertical gap)

Hardware Features
• Spread 1 image across multiple monitors using 1 video source
• Configure up to a 20 x 20
• Video Wall Processor built in
• 1080p Full HD High Resolution Native 1920 x 1080p
• Stylish Slim & Ultra Slim Bezel Design
• Remote Display Management
• Landscape and Portrait
• DVI-D In / Out
• HDMI In / Out
• RS-232C In / Out for pc / server control
• Control panel Lock (panel or IR)
• All metal chassis
• Auto power recovery
• Auto pixel shift
• PIP / PBP - Dual signal In
• VESA standard hole patterns

Dual Screen Display
Picture-in-Picture (PIP) mode allows an image from an AV source to be displayed as a picture with in the image from a PC source (or vice-versa). Picture-by-Picture (PBP) mode permits images from an AV and PC source to be displayed side by side for split-screen viewing

Security Lock Out
Orion Images commercial displays have features to protect the unit including Menu button lock out & IR Lock Out. Controls on the front of the monitor can be locked, while additional buttons for other functions are usually hidden to prevent unauthorized access.

Narrow Bezel
ORION Images RNK46SHF 46 inch video wall's bezel width is 3.8mm / 1.9mm super narrow bezel to bezel. With super narrow bezel monitors can be joined together to create multiplex screen.

Auto Pixel Shift
Minutely moves pixels diagonally to prevent after-image / static image burn in.

Auto Power Recovery
If power outage occurs, their monitors will automatically power back on to their previous settings.

Display Up to 20 x 20
ORION Images Multi Vision Video Wall can display across up to 400 monitors (in a vertical & horizontal 20 x 20 arrangement).

3D Comb Filter, Deinterlace, NR
Combined: Sharpens the Edges, Reduces Noise, Enhances light with shade and minimizes ghosting.

Auto Sequential Source Switching
Adjustable dwell time for up to 7 sources.

All Metal Chasis
Designed with a unique durable housing for various environments including commercial & industrial.

Magnet Key Controller
Designed with a unique durable housing for various environments including commercial & industrial.
