Osprey Video 210 PCI Analog Video Capture Card with Stereo Audio Specifications

  • Format

    PCI 32-bit/5 Volt

  • Video Input

    Composite, S-Video

  • Video Connector

    Composite (BNC x 1), S-Video (mini-DIN)

  • Video Modes

    NTSC/PAL
    720 x 480 29.97, 30/i (NTSC)
    852 x 480, 29.97, 30/i (NTSC Wide Screen)
    720 x 576 25/i (PAL)
    Wide Screen Signaling (WSS)

  • Audio Input

    Unbalanced stereo

  • Audio Output

    Unbalanced stereo line (3.5 mm)

  • Audio Connector

    Unbalanced stereo (RCA x2)
    Unbalanced (3.5 mini phono) stereo

  • Power Consumption

    2.45W

  • Operating Temp Range

    0 to 40 deg. C / 32 to 104 deg. F

  • Non-Operating Temp Range

    -40 to 75 deg. C / -40 to 167 deg. F

  • Rel Humidity Operating

    Between 5 % and 80 % (noncondensing)

  • Rel Humidity Non-Operating

    95 % RH (non-condensing); gradient 30% per hour

  • Operating Altitude Range

    0 to 3048.04m (10000')

  • Non-Operating Altitude Range

    0 to 15240.19m (50000')

  • Dimensions (L x H)

    5.08 x 4.20" (12.90 x 10.67cm) (Full-height/short)

  • Weight

    71g / 2.50oz

About Osprey Video 210 PCI Analog Video Capture Card with Stereo Audio

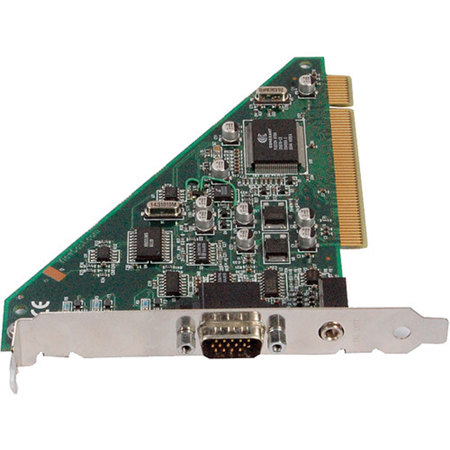

PCI Analog Video Capture With Stereo Audio
The Osprey 210 video capture card offers legendary Osprey dependability in a single channel analog video card with unbalanced stereo audio input. In production for nearly 15 years and still in demand for mission critical delivery or legacy PC platforms.

Mission Critical Video Capture
• Security, such as ATM machines
• Medical and scientific equipment

Surveillance equipment Single Channel With Switchable Inputs
• 1 composite (RCA)
• 1 S-Video (mini-DIN)

Multiple Card Support
Deploy two or more cards in a single PC chassis for maximum versatility.

Driver Support
• Microsoft DirectShow drivers are available for compatibility with most software.
• Linux
• Windows SDK lets you create custom applications.

Driver Based Pre-Processing
• Closed-caption extraction/rendering
• Logo/bitmap overlay
• Scaling, cropping, de-interlacing and inverse telecine

Osprey SimulStream Ready
SimulStream is an optional Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video 210 PCI Analog Video Capture Card with Stereo Audio
  • BNC to RCA Adapter
  • Low-Profile Bracket
  • Breakout Cable
  • Driver and Documentation CD
  • Osprey Video 1 Year Parts & Labor Limited Warranty
