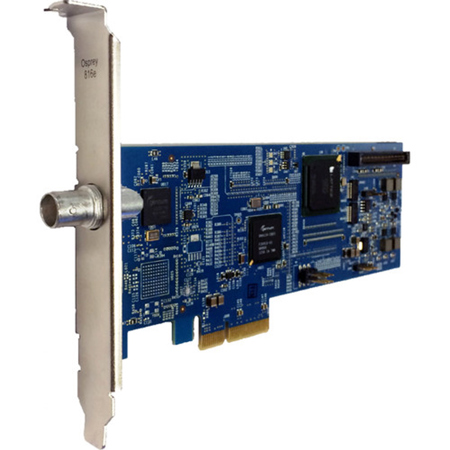

Osprey Video 816e Single Input 3G SDI/DVB-ASI Video Capture Card
See all Osprey Video items

Osprey Video 816e Single Input 3G SDI/DVB-ASI Video Capture Card with SimulStream

SKU: OSP9500495

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Osprey Video 816e Specifications

  • Format

    PCI Express (x 4): Slots: x4, x8, or x16 PCIe 1.1

  • Video Input

    3G SMPTE 424M
    HD SMPTE 292M
    SD SMPTE 259M
    DVB-AS

  • Video Connector

    SDI (BNC)

  • Video Modes

    1080i 50, 59.94, 60
    1080p 23.98, 24, 25, 29.97, 30
    720p 23.98, 24, 25, 29.97, 50, 59.94, 60
    720 x 480 29.97, 30/i (NTSC)
    720 x 576 25/i (PAL)
    720 x 576 25, 50/p

  • 3G SDI

    1080p 50, 59.94, 60

  • Audio Input

    Embedded SDI: 4 stereo pairs
    Optional: 2 x stereo unbalanced RCA
    Optional: 2 x stereo balanced XLR
    Optional: 2 x stereo balanced XLR or AES/EBU or SPDIF

  • Adapter

    No

  • Available Drivers

    Microsoft Windows
    Linux

  • System recommendations

    High quality video capture requires a PCIe bus with direct access to the CPU

  • Power Consumption

    6.3W

  • Operating Temperature Range

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature Range

    -40 to 75 deg. C / -40 to 167 deg. F

  • Operating Relative Humidity

    Between 5% and 80% (noncondensing)

  • Non-Operating Relative Humidity

    95% RH (non-condensing); gradient
    30% per hour

  • Dimensions (L x H)

    6.60 x 2.71" / 16.76 x 6.88cm Low profile

  • Weight

    70g / 2.47oz

  • UPC Code

    850189006467

About Osprey Video 816e

Single Input 3G SDI or DVB-ASI
Ideal for high-density applications, the Osprey 816e card features a single highly configurable input.

Four Input Formats
• 3G SDI(424M)
• HD SDI (292M)
• SD DI(259M)
• DVB-ASI MPTS/SPTS (Windows only)

Embedded SDI audio
Four stereo audio pairs. Additional Audio Options with the 800a Audio card

Osprey SimulStream
A standard feature on all Osprey 800 series cards, SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.

Signal Loss
In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.

Video Pre-Processing
• VBI/VANC closed-caption extraction/on-screen rendering
• Logo/bitmap overlay
• Scaling, cropping, de-interlacing and inverse telecine
• ProcAmp control
• Vector Scope and Lumi Scope

Driver Support
Microsoft DirectShow API, Linux

Osprey SDK
An Osprey SDK is also available to allow developers to take full advantage of the Osprey 800e driver capabilities.

Osprey 800a Audio Input Expansion board
The Osprey 800a audio input card is a separate expansion board that adds two pairs of balanced audio via XLR connectors along with two additional pairs that can be configured as either unbalanced (RCA), AES/EBU (XLR) or SPDIF (RCA).

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Osprey Video 816e Single Input 3G SDI/DVB-ASI Video Capture Card with SimulStream
  • Low-Profile Bracket
  • Osprey Video 1 Year Limited Warranty
