See Options
1 Year
$47.99
2 Year
$79.99
3 Year
$129.00
Need help? Ask our experts.
Review Summary
4TB, 8TB, 12TB, 16TB, 24TB, 32TB, 40TB, 48TB
Black
High quality aluminum for optimized heat dissipation
2 bays supporting: 2.5" SATA HDDs, 2.5" SATA SSDs, 3.5" SATA HDDs, 3.5" SATA SSDs, 2.5" U.2 SSDs, 3.5" U.2 SSDs, M.2 SSDs (with M.2 to U.2 adapter)
4TB, 8TB, 12TB, 16TB: 512 MB
24TB, 32TB, 40TB: 1024 MB
48TB: 2048 MB
4TB: 2x 2.0TB Western Digital WD Blue 7,200RPM Hard Disk Drive with 256 MB cache
8TB: 2x 4.0TB Toshiba MD08ADA Series 7,200RPM Hard Disk Drive with 256 MB cache
12TB: 2x 6.0TB Toshiba MD08ADA Series 7,200RPM Hard Disk Drive with 256 MB cache
16TB: 2x 8.0TB Toshiba MG08-D Series 7,200RPM Enterprise Class Hard Disk Drive with 256 MB cache
24TB: 2x 12.0TB Toshiba MG09ACA Series 7,200RPM Enterprise Capacity Hard Disk Drive with 256 MB cache
32TB: 2x 16.0TB Western Digital Ultrastar DC HC550 7,200RPM Enterprise Class Hard Disk Drive with 256 MB cache
40TB: 2x 20.0TB Toshiba MG10 Series 7,200RPM Enterprise Class Hard Disk Drive with 256 MB cache
48TB: 2x 24.0TB Toshiba MG11 Series 7,200RPM Enterprise Capacity Hard Disk Drive with 1024 MB cache
Yes
Yes. Boot Camp is not supported
Yes
SPAN
RAID 0
RAID 1
JBOD
Hardware RAID
Software RAID Capable
1x Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
1x Thunderbolt 3 (USB-C) Port
2x USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
1x HDMI Port
1x 2.5 Gigabit Ethernet (2.5GbE) RJ45 Port
1x SD
Provides up to 27 watts of power via Thunderbolt 3 to charge or reduce laptop and device battery draw
UASP (USB Attached SCSI Protocol) is supported
Thunderbolt 3 (Titan Ridge): Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 3 display or other display that supports USB-C connections and DisplayPort 1.4
HDMI 2.1: Up to 8K @ 120Hz
2.5Gb/s (2.5GBASE-T)
1Gb/s "Gigabit" (1000BASE-T)
100Mb/s (100BASE-T)
10Mb/s (10BASE-T)
Yes
Up to 40 Gb/s
Thunderbolt 3 : Up to 40Gb/s (or 5000MB/s)
USB 3.2 Gen 2 : Up to 10Gb/s (or 1250MB/s)
Thunderbolt (2): Intel JHL7440
Media Reader: Genesis Logic GL-3232S
Ethernet (1): Intel i226
SATA Controller: ASMedia ASM-1352R
Varies depending on drive mechanism installed
Varies depending on drive mechanism installed
Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt)
macOS 12.x Monterey
macOS 13.x Ventura
macOS 14.x Sonoma
macOS 15.x Sequoia
Windows 10 64-bit Edition
Windows Server 2016
Windows Server 2022
Windows 11
Yes
iPadOS 15
iPadOS 16
iPadOS 17
iPadOS 18
Chrome OS
ChromeOS 107 or later
Yes
Windows 10 and Windows 11 users utilizing the OWC Gemini (2.5GbE) Ethernet require a network driver
Intel Network Adapter Driver for Windows 10
Intel Network Adapter Driver for Windows 11
4TB, 8TB, 12TB, 16TB, 24TB, 32TB: Yes
Yes
External UL-listed universal auto-switching power supply
100-240V, 50-60Hz, 2.0A
+12V, 10A
120W
1x 60mm 3,000RPM cooling fan
Yes
Yes
CE
FCC
VCCI
BSMI
RCM
Thunderbolt technology
Yes
Operating: 41 degree F to 95 degree F (5 degree C to 35 degree C)
Non-Operating: -4 degree F to 140 degree F (-20 degree C to 60 degree C)
Operating: -1,000' to 10,000' (-304.8m to 3,048m)
Non-Operating: -1,000' to 40,000' (-304.8m to 12,192m)
Operating: 8% to 90% non-condensing
Non-Operating: 5% to 95% non-condensing
4TB:
Operating: Varies depending on drive mechanism installed
Non-Operating: Varies depending on drive mechanism installed
19.3dB
5.8 x 9.4 x 3.3" (14.7 x 23.8 x 8.5cm)
4TB: 5.51 lbs (2.5kg)
8TB, 12TB, 16TB, 24TB, 32TB, 40TB, 48TB: 3.53 lbs (1.6kg)
810159627894

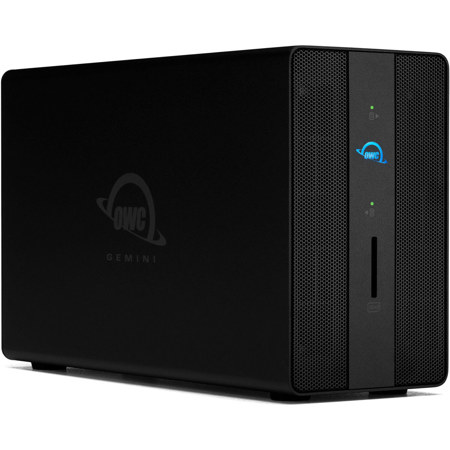

The Do-It-All Tool for Digital Workflows
With dual drive bays and seven connectivity ports including an SD 4.0 (UHS-II) card reader, the OWC Gemini is the do-it-all tool that will organize your digital life. You'll have plenty of room to duplicate footage, create and manage archives, or render and process effects. Connect your favorite peripherals via USB ports. Ingest the day's shoot or drone footage with the frontside reader.
Hardware RAID: Speed, Reliability, Flexibility
The OWC Gemini utilizes hardware RAID to unleash the full potential of two 3.5-inch 7200RPM hard drives or 2.5-inch SATA SSDs. Preconfigured in high-speed RAID 0 mode to deliver maximum throughput from its drives, Gemini offers real-world HDD speeds up to 562MB/s for audio editors/musicians/producers, individual content creators, photographers, small photography studios, and filmmakers working with up to 4K resolutions and compressed codecs. A/V professionals seeking SSDs that start and stay fast over their full capacity can take advantage of the proven reliability of OWC Mercury Extreme SSDs. With sustained RAID 0 speed up to 956MB/s, you can easily handle 8K single and 4K multi sequences, slow motion video, 10 bits footage, and ultra-high-resolution RAW pictures.
If you desire the extra security of mirrored data, you can configure the Mercury Gemini in RAID 1 mode. Need more drive flexibility? Set up a span to combine the capacity of the two drives into one huge volume or use the drives as independent volumes.
Stay Connected to Your Team and Media
The OWC Gemini features a 2.5Gb/s Ethernet port so you can transfer files and work up to 2.5x faster over wired networks and enjoy increased productivity in an IP-based workflow. Great for shared workspaces and workflows, file transfers breeze by quickly so you spend less time setting up and more time getting to work. When it's time to share your progress, you can use your RAID options to render out working files and a fast connection to post for team and client reviews. It's also great for sending your files over to a NAS to keep them safely archived.
Gain a 8K Perspective
With a dedicated latest generation HDMI port, Gemini empowers you to add the fresh, crisp perspective of an 8K display to your workflow. Whether in your home office or on a mobile studio job, seeing your work in full detail is just one connection away. Use it to free up your laptop port, so you can dock in and out quickly and stay mobile.
Reclaim Your Desktop
With multi-drive media dumps, controllers, A/V outputs, and a mess of device cables, it can be hard enough to find space for your notebook let alone room to work. OWC Gemini fights the clutter with a single-cable connection that delivers storage, Ethernet sharing, charging power, and 8K monitor support while neatly consolidating all your peripheral device cables. Reclaim your workspace and reduce your stress.
Finally, a RAID as Mobile as Your Life
With the built-in hardware-based RAID controller, you get speed and security without being dependent on what operating system you are running. If you work in a cross-platform world, you can easily connect OWC Gemini to Mac and PC using OWC's MacDrive software (sold separately).
Unleash iPad Pro Content Creation Capabilities
For all the power iPad Pro offers, it's handcuffed by limited internal storage, display size. and a single Thunderbolt port. Gemini transforms the iPad Pro into a complete content creation platform with capabilities that exceed many desktop and notebook computer setups. Offload your internal storage to the multi-terabytes of SSD storage capacity with speeds up to 956MB/s to handle all your Davinci Resolve, Lumafusion, Lightroom, Photoshop, Capture One, and/or Illustrator projects. You'll see your work easier by adding an external display via the HDMI port. Ingest your camera files with the SD card reader. Share files in a blink on a high-speed network. Connect a mouse and full-sized keyboard with USB ports. There's even 27W of power delivery to keep your iPad Pro charged and ready for mobile use.
Thunderbolt Made Easy
We make it easy to choose the right gear. Our Thunderbolt Certified products offer the same performance and functionality whether they are Thunderbolt 3 or Thunderbolt 4. And if you're rocking a beloved Thunderbolt 2 machine, we offer a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter so you can plug into our universe of award-winning solutions. No hassles, no confusion. That's the OWC Difference.
Disconnect in One Click
Safely disconnect multiple drives in a single click. OWC Dock Ejector was designed by OWC hardware and software engineers to ensure all data is written before disconnection, saving time and protecting against data loss. It makes losing your hard-earned work a thing of the past.
OWC Thunderbolt Cable Included
OWC Gemini comes with a certified 0.7M OWC Thunderbolt Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt (USB-C) Cables are the perfect choice.
Work with Ultimate Confidence
Active workspaces expose gear to unexpected bumps and shoves. OWC ClingOn custom cable stabilizers (sold separately) screw into the OWC Dock or OWC Drive housing to reduce - if not completely eliminate - cable strain on Thunderbolt and USB-C connections so you can work with ultimate confidence even in the highest foot traffic environments.
Innergize Your Workflow with Highest Performance and Reliability
OWC Innergize is the first stage of the Capture to Completion ecosystem of OWC products designed to seamlessly propel professional photographers, videographers, and content creators to the highest level of workflow performance and reliability. This OWC custom-designed app is a complete health, performance, and field upgrade management tool when using OWC Atlas memory cards with OWC Atlas readers and reader equipped products.
Work with Maximum Confidence and Reliability
Health
Over time and use cycles, flash memory does wear out. Innergize verifies and reports the percentage of use life remaining. Now you can work with full confidence your OWC flash memory product will deliver the reliability you can trust.
Sanitize
Writes, deletes, and formatting all take their toll on memory cards. Innergize cleans and restores the flash memory performance of OWC memory cards so you can get the best results on every use.
Field Upgrade
When new cameras or firmware updates to existing cameras are introduced, they may not work properly with flash memory cards and drives. Innergize gives OWC memory card users the ability to quickly upgrade their firmware in the field for full compatibility, additional performance enhancements, and bug fixes for optimal reliability.
