New Arrival

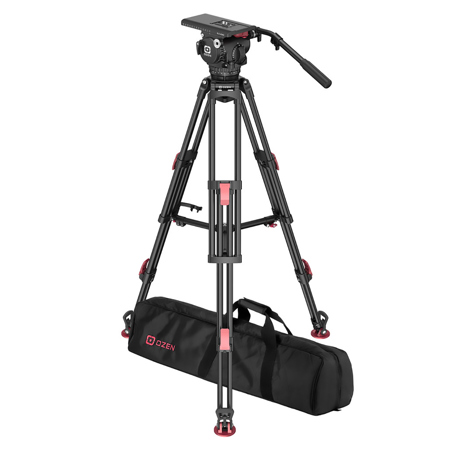

OZEN AGILE 20 100mm E-Z LOAD Fluid Head with TR-100AL2HD 2-Stage Heavy-Duty Aluminum Tripod and Mid-Level Spreader

SKU: OZ20AL2HD MFR: 20AL2HD
Earn VIP Reward Points

Key Features

  • Experience superior stability with this heavy-duty aluminum video tripod, perfect for professional shoots.
  • Achieve precise camera movements using the advanced fluid head, offering smooth 9/9+0 drag control.
  • Effortlessly mount your gear with the E-Z LOAD quick release plate, supporting up to 61 lbs load capacity.
  • Adjust your shots with ease, from a minimum height of 22.4" to a maximum of 60.6" for versatile filming.
  • Enjoy quick setup and breakdown thanks to the intuitive flip lock leg sections and mid-level spreader.
  • Trust in the robust build quality of this OZEN tripod system, designed for reliable performance on location.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

OZEN System 20AL2HD Specifications

General

General

Jump to...
  • Color

    Black

  • Load Capacity

    Head: 8.8-61 lbs (4-28kg)
    Tripod: 99 lbs (45kg)

  • Maximum Working Height

    60.6" (154cm)

  • Minimum Working Height

    22.4" (57cm)

  • Closed Length

    29.1" (74cm)

  • Bubble Level

    Yes

  • Spreader Support

    Mid-Level

  • Head Mount Type

    100mm Bowl

  • Primary Material

    Heavy-Duty Aluminum

  • Leg Lock

    Flip Lock

  • Leg Sections

    3

  • Foot Features

    Removable Feet

Pan & Tilt

Jump to...
  • Drag Control

    Yes (9/9+0)

  • Vertical Tilt

    +90 Degree /-80 Degree

Physical Details

Jump to...
  • Weight

    Tripod: 13.1 lbs (5.98kg)
    System: 27.8 lbs (12.6kg)

  • UPC Code

    697214213022

Models
<b>New Arrival</b> - OZEN AGILE 20 100mm E-Z LOAD Fluid Head,TR-100AL2HD Al Tripod,Mid-Level Spreader
$7,895.00

New Item

Expecting delivery from Manufacturer. Order now, your card will not be charged until it is ready to ship

<b>New Arrival</b> - OZEN AGILE 20S 100mm S-LOC Fluid Head, TR-100AL2HD Al Tripod, Mid-Level Spreader
$7,895.00

New Item

Expecting delivery from Manufacturer. Order now, your card will not be charged until it is ready to ship

<b>New Arrival</b> - OZEN AGILE 20 100mm E-Z LOAD Fluid Head,TR-100CF1HD CF Tripod,Mid-Level Spreader
$7,895.00

New Item

Expecting delivery from Manufacturer. Order now, your card will not be charged until it is ready to ship

MaterialAluminumAluminumCarbon Fiber
Weight10.1 to 15 lbs10.1 to 15 lbs7.1 to 10 lbs
Closed Length25.1" to 30"25.1" to 30"30.1" to 35"
Maximum Height55.1" to 65"55.1" to 65"55.1" to 65"
Leg Sections332
Maximum Load Capacity50.1 to 70 lbs50.1 to 70 lbs50.1 to 70 lbs
Quick ReleaseIncludes QRIncludes QRIncludes QR
Maximum Extended Height55.1" to 65"55.1" to 65"55.1" to 65"

About OZEN System 20AL2HD

Tripod
2-stage heavy-duty aluminum tripod with flip-type brake levers, CONTENDER heavy-duty mid-level spreader & deep-tread rubber feet.


Fluid Head

Familiar - Features & Ergonomics
OZEN's new AGILE-series fluid heads deliver Broadcast operating features, ergonomics, & compatibility exceeding expectation of experienced operators.

Experienced operators will appreciate the familiar ergonomics of incremental pan/tilt fluid resistance & counterbalance controls, distinguishable 90 degree-opposed pan & tilt brakes, replaceable pan bar rosettes for longer fluid head usability. They're all located where experienced operators expect, and operate likewise, precluding need to re-train 'muscle-memory'.

True Fluid Resistance
Every AGILE-series fluid head features incrementally adjustable & repeatable "true" fluid resistance, which delivers smooth, uniform fluid resistance that neither deviates nor deteriorates over time and usage.

The tremendous amount of fluid resistance available at higher increments enables an experienced operator to acquire full-zoom pan/tilt-intensive images that are indistinguishable from those acquired in-close.

Incrementally Adjustable Counterbalance
Every AGILE-series fluid head is equipped with incrementally-adjustable & repeatable counterbalance for fast set-up typical of ENG/EFP-type use. The CNC-machined selector-dial mechanism facilitates crisp, repeatable increment selection, enables the operators to quickly alternate between multiple camcorder-configurations.

Two-industry standard Camera Mounting Interfaces
OZEN-exclusive choice of two industry-standard camera platform enable seamless integration with nearly any brand of camera support already in use.

E-Z LOAD
Identical to full-sized industry-standard spring-loaded capture-type CMI, designed for fast set-up conducive to 'Shoot & Scoot' Field News.

Leveling in the Dark
Leveling your fluid head is the first step of any shot set-up. Enjoy the convenience of a built-in LED-illuminated bubble level.

Extending pan bar
Two extending pan bar is included

Replaceable Pan Bar Rosettes
Applies to ALL AGILE-series fluid heads. Dramatically extends useful lifespan.

OZEN System 20AL2HD Features

  • 2-Stage Aluminum Build: Durable, lightweight, and rigid construction
  • Easy Transport: Integrated carry handle and leg clip for secure, one-handed mobility
  • Mid-Level Spreader: Extending design for rock-solid stability on uneven ground
  • Wide Rubber Feet: Provides superior grip and floor protection on smooth surfaces

Warranty Information

This product has a limited warranty of 48 months.

Key Features

  • Experience superior stability with this heavy-duty aluminum video tripod, perfect for professional shoots.
  • Achieve precise camera movements using the advanced fluid head, offering smooth 9/9+0 drag control.
  • Effortlessly mount your gear with the E-Z LOAD quick release plate, supporting up to 61 lbs load capacity.
  • Adjust your shots with ease, from a minimum height of 22.4" to a maximum of 60.6" for versatile filming.
  • Enjoy quick setup and breakdown thanks to the intuitive flip lock leg sections and mid-level spreader.
  • Trust in the robust build quality of this OZEN tripod system, designed for reliable performance on location.

What's in the box:

  • AGILE 20 100mm Fluid Head
  • TR-100AL2HD 2-Stage Heavy-Duty Aluminum Tripod
  • E-Z LOAD Plate
  • 2x Extending Pan Bar
  • Mid-Level Spreader
  • Rubber Feets
  • Soft Case
  • OZEN 4 Year Limited Warranty
