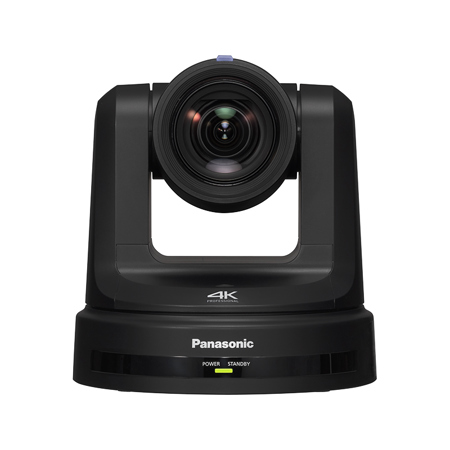

Panasonic AW-UE20 4K/30P 3G-SDI/HDMI/IP/USB 12x PTZ Camera, Black

SKU: PCAWUE20KP MFR: AW-UE20KP
Earn VIP Reward Points

Key Features

  • Capture stunning 4K video with the Panasonic PTZ camera, perfect for broadcasting and streaming.
  • Experience smooth pan and tilt with a wide movement range, ideal for live event coverage.
  • Enjoy versatile connectivity with 3G-SDI, HDMI, IP, and USB outputs for seamless integration.
  • Remotely control your PTZ camera via IP, RS-232, or RS-422 for flexible operation in any studio.
  • Achieve optimal zoom capability with 12x optical zoom and 4x digital zoom for detailed shots.
  • Excellent low-light performance ensures clear video, even in dimly lit environments with this PTZ.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic AW-UE20 Specifications

Imaging

Imaging

Jump to...
  • Image Sensor

    1/2.8"-Type MOS

  • Horizontal Resolution (TV Lines)

    1400 TV Lines

  • Sensor Resolution

    Effective: 8.46 Megapixel

  • Built-In ND Filter

    None

  • Focus Control

    Autofocus
    Manual Focus

Exposure Control

Jump to...
  • Shutter Type

    Electronic Rolling Shutter

  • Shutter Speed

    1/16000 to 1 Second

  • Gain

    0 to 42 dB

  • Minimum Illumination

    0.4 Lux at 1/30 Shutter Speed

  • White Balance

    Presets: ATW, Auto

  • Focal Length

    3.9 to 46.8mm

  • Optical Zoom Ratio

    12x

  • Max Digital Zoom

    4x

  • Field of View

    Horizontal: 71 to 6 Degree
    Vertical: 43 to 3 Degree
    Diagonal: 79 to 7 Degree

  • Maximum Aperture

    f/1.6 to 2.8

Video Capture

Jump to...
  • External Recording Modes

    4:4:4 8-Bit via HDMI:
    3840 x 2160 at 25/29.97 fps
    1920 x 1080p at 25/29.97/50/59.94 fps
    1920 x 1080i at 50/59.94 fps
    1280 x 720 at 50/59.94 fps

    SDI/BNC/USB:
    1920 x 1080p at 25/29.97/50/59.94 fps
    1920 x 1080i at 50/59.94 fps
    1280 x 720 at 50/59.94 fps

  • Audio Recording

    2-Channel 16-Bit 48 kHz AAC LC Audio

  • Broadcast Output

    NTSC/PAL

  • IP Streaming

    H.264, H.265, MJPEG, RTMP, RTMPS, RTP, RTSP, TCP, UDP
    3840 x 2160 at 5.00p, 10p, 14.99p, 25p, 29.97p
    1920 x 1080 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p
    1280 x 720
    640 x 360

Control

Jump to...
  • Move Speed

    Pan: 0.1 to 100 Degree /sec
    Tilt: 0.1 to 100 Degree /sec

  • Movement Range

    Pan: 340 Degree (-170 to 170 Degree )
    Tilt: 120 Degree (-30 to 90 Degree )

  • Supported Control Protocols

    IP
    RS-232
    RS-422

Interface

Jump to...
  • Video I/O

    1x BNC (3G-SDI) Output
    1x HDMI Output
    1x USB-B 2.0 Output
    1x RJ45 (NDI) Output

  • Audio I/O

    1x 1/8" (3.5mm) TRS Stereo Mic/Line Input

  • Other I/O

    1x RJ45 (LAN) Input
    1x Mini-DIN 8-Pin (RS-232) Input
    1x Mini-DIN 8-Pin (RS-232) Output
    1x RJ45 (RS-422) Output

  • PoE Support

    PoE+ 802.3at

  • Power I/O

    1x Barrel (10.8 to 13.2VDC) Input

  • Power Consumption

    Device: 1.3 A
    PoE: 0.4 A

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Operating Humidity

    20 to 90%

General

Jump to...
  • Color

    Black

  • OS Compatibility

    Windows 10 to 11 (32/64-Bit)
    macOS 10.11 to 10.15

  • Certifications

    FCC Part 15 Class A

  • Sound Level

    NC55 (at Full Speed)

  • Dimensions (W x H x D)

    6.5 x 6.9 x 6.9" (165.1 x 176.2 x 176.1mm)

  • Weight

    4.2 lbs (1.9kg)

  • UPC Code

    885170399563

About Panasonic AW-UE20

Where advanced technology meets superior functionality, the AW-UE20 4K/30P 3G-SDI/HDMI/IP/USB 12x PTZ Camera stands out as a high-tech solution for modern telecommunication needs. This sophisticated camera is designed to enhance the quality of online meetings and virtual classes, offering a high-resolution 4K UHD (3840x2160) image quality that brings clarity and detail to your video communications.

The state-of-the-art AW-UE20 PTZ Camera boasts a wide shooting angle and a high-magnification 12x optical zoom, providing flexibility in framing shots and capturing images from a distance. This innovative feature ensures comfortable communication through high-quality video images and stable transmission, making every interaction more engaging and productive.

Designed for versatility, the AW-UE20 is compatible with a broad range of systems including SDI, HDMI, USB, and IP. This allows for flexible camera setup and operation, catering to a variety of user needs. Despite its advanced features, this camera maintains a compact design, making it an ideal choice for spaces where size is a consideration.

The AW-UE20 is a Zoom Certified USB Camera, supporting UVC for seamless integration with existing USB-based systems. Its unique capability to connect multiple camera units to a PC via a single LAN cable simplifies installation and configuration, making it a practical choice for those seeking a simple and compact system.

Furthermore, with the free PTZ Virtual USB Driver software, the AW-UE20 can function as a web camera linkable to an online conference service via LAN cable. This feature is particularly useful in situations where the USB cable cannot reach the camera installation location, such as a ceiling. With its dedicated mode for web conferencing, the AW-UE20 is a reliable and efficient tool for all your video conferencing needs.

Panasonic AW-UE20 Features

  • 4K PTZ Camera
  • Compact size & wide angle
  • Simultaneous 3G-SDI, HDMI & USB output
  • High-Quality Video Streaming for More Comfortable Online Communication
  • Excellent system flexibility to achieve smart wiring and smooth operation

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning 4K video with the Panasonic PTZ camera, perfect for broadcasting and streaming.
  • Experience smooth pan and tilt with a wide movement range, ideal for live event coverage.
  • Enjoy versatile connectivity with 3G-SDI, HDMI, IP, and USB outputs for seamless integration.
  • Remotely control your PTZ camera via IP, RS-232, or RS-422 for flexible operation in any studio.
  • Achieve optimal zoom capability with 12x optical zoom and 4x digital zoom for detailed shots.
  • Excellent low-light performance ensures clear video, even in dimly lit environments with this PTZ.

What's in the box:

  • Panasonic AW-UE20 4K/30P 3G-SDI/HDMI/IP/USB 12x PTZ Camera (Black)
  • AC Adaptor
  • Power Cable
  • Drop-Prevention Wire
  • Mount Bracket
  • 2x Cable Ties
  • Cable Fixing Bracket
  • Lens Cap
  • 4x M4x10mm Screws
  • 2x M4x6mm Screws
  • M2.6x5mm Screw
  • Panasonic 1 Year Limited Warranty
