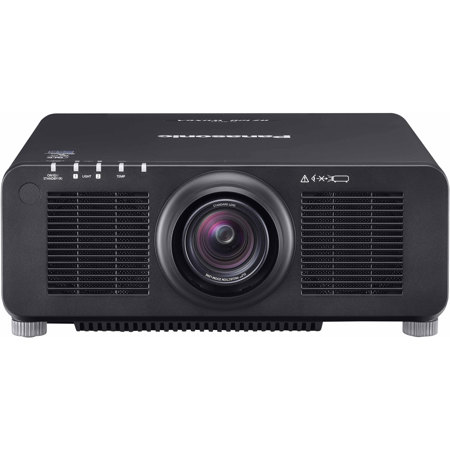

Panasonic PT-RZ120 WUXGA Dual-Drive SOLID SHINE Laser Projector with Lens, Black
See all Panasonic items

Panasonic PT-RZ120 WUXGA Dual-Drive SOLID SHINE Laser Projector with Lens, 12600 Lumen, Black

SKU: PCPTRZ120BU
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Panasonic PT-MZ10KL: Picture 1 regular
Panasonic PT-MZ10KL WUXGA Solid Shine 3LCD Laser Projector, 10,000 Lumens, Black
$23,999.00
Panasonic PT-MZ10KL: Picture 1 regular
Panasonic PT-MZ10KL WUXGA Solid Shine 3LCD Laser Projector, 10,000 Lumens, White
$23,999.00
Panasonic PT-MZ13KL: Picture 1 regular
Panasonic PT-MZ13KL WUXGA Solid Shine 3LCD Laser Projector, 13,000 Lumens, Black
$28,999.00
Panasonic PT-MZ13KL: Picture 1 regular
Panasonic PT-MZ13KL WUXGA Solid Shine 3LCD Laser Projector, 13,000 Lumens, White
$28,999.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What technology does the PT-RZ120 WUXGA Dual-Drive SOLID SHINE Laser Projector use for imaging?

The projector uses 1-Chip DLP imaging combined with proprietary SOLID SHINE Laser technology for high-quality and immersive pictures.

How does the projector ensure reliable performance?

The projector features a dust-resistant structure with an airtight optical block and a dual-drive laser optical engine with dual phosphor wheels for reliable 24/7 operation. It also offers up to 20,000 hours of maintenance-free operation.

What are the installation options for the PT-RZ120 WUXGA Dual-Drive SOLID SHINE Laser Projector?

The projector offers flexible installation options. It has a compact body and allows for free 360-degree installation, both vertically and horizontally.

Does the projector support 4K signal transmission?

Yes, the projector supports the transmission of 4K signals via DIGITAL LINK / HDMI.

What are some of the time-saving features of the PT-RZ120 WUXGA Dual-Drive SOLID SHINE Laser Projector?

The projector comes with a data-cloning function that allows for easy configuration data copying from a master projector to slave projectors via LAN. It also has a Direct Power Off function for convenient shutdown.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic PT-RZ120 Specifications

  • DLP Chip

    Panel size: 17mm (0.67") diagonal (16:10 aspect ratio)
    Display method: DLP chip x1, DLP projection system

  • Lens

    Powered zoom (throw ratio 1.7 - 2.4:1), powered focus F 1.7 - 1.9, f 25.6 - 35.7 mm

  • Light Source

    Laser diodes laser Class 1 (Class 3R for US models)

  • Screen Size (Diagonal)

    1.27 - 15.24m (50 - 600"), 1.27 - 5.08m (50 - 200") with ET-DLE055, 2.54 - 8.89m (100 - 350") with ET-DLE035, 16:10 aspect ratio

  • Brightness

    12600 lm (Center) / 12000 lm

  • Center-To-Corner Uniformity

    0.9

  • Contrast

    10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)

  • Resolution

    1920 x 1200 pixels

  • Optical Axis Shift

    Vertical (from center of screen): +50 %, -16 % (+40%, -16% with ET-DLE060) (powered)
    Horizontal (from center of screen): +30 %, -10 % (+19%, -10% with ET-DLE060 / +28 %, -10 % with ET-DLE085) (powered)

  • Keystone Correction Range

    Vertical: +/-40 deg. (+/-16 deg. with ET-DLE060, +/-22 deg. with ET-DLE085/DLE055, +5 deg. with ET-DLE035)
    Horizontal: +/-15 deg. (+/-10 deg. with ET-DLE060) (cannot be operated with ET-DLE035)

  • Keystone Correction Range (Cont.)

    With optional ET-UK20 Upgrade Kit:
    Vertical: +/-45 deg. (+/-16 deg. with ET-DLE060, +/-40 deg. with ET-DLE150/DLE250/supplied lens, +/-22 deg. with ET-DLE085/DLE055)
    Horizontal: +/-40 deg. (+/-10 deg. with ET-DLE060, +/-15 deg. with ET-DLE085/DLE055), When vertical and horizontal keystone are used simultaneously, correction cannot be made exceeding total of 55 deg.

  • Installation

    Ceiling/floor, front/rear, free 360-degree installation

  • Terminals

    SDI IN: BNC x 1 - 3G/HD/SD-SDI input
    HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
    DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    RGB 1 IN: RGB x 1 (BNC x 5) - RGB/YPBPR/YCBCR
    RGB 2 IN: D-sub HD 15-pin (female) x 1 - RGB/YPBPR/YCBCR
    SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)

  • Terminals (Cont.)

    SERIAL OUT: D-sub 9-pin (male) x 1 for link control
    REMOTE 1 IN: M3 x 1 for wired remote control
    REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
    REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
    LAN: RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink
    DIGITAL LINK: RJ-45 x 1 for network and DIGITAL LINK connection, 100Base-TX, compatible with PJLink (Class 2), HDCP, Deep Color

  • Power Supply

    AC 120-240V, 50/60Hz

  • Power Consumption

    1.275W

  • Operation Noise

    46dB

  • Cabinet Materials

    Molded plastic

  • Operating Environment

    Operating temperature: 0 to 45 deg. C (32 to 113 deg. F)
    Operating humidity: 10-80 % (no condensation)

  • Applicable Software

    Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android

  • Dimensions (WxHxD)

    498 x 200 x 581mm (19.61 x 7.87 x 22.87")

  • Weight

    Approximately: 25.2kg (55.56 lbs)

  • UPC Code

    885170425668

1 Accessories for Panasonic PT-RZ120 WUXGA Dual-Drive SOLID SHINE Laser Projector with Lens, 12600 Lumen, Black

  • All Accessories (1)
  • Laptop Stand (1)
Flashpoint Laptop Stand and Accessory Tray
Flashpoint Laptop Stand and Accessory Tray
$69.00
Recommended

About Panasonic PT-RZ120

High-Quality Pictures and Long-Lasting Reliability
• Combines 1-Chip DLP imaging with proprietary SOLID SHINE Laser technology for accurate and immersive pictures at 12,600 lm
• Dynamic Contrast realizes high 10,000:1 contrast without losing brightness
• Detail Clarity Processor 3 clarifies and enhances the finest details
• System Daylight View 3 optimization for sharp and vivid images in bright environments

Consistently Stable and Reliable Performance
• Dust-resistant projector structure with airtight optical block
• Dual-drive laser optical engine with dual phosphor wheels assures reliable 24/7 operation with light-source failover protection
• Up to 20,000 hours of continuous maintenance-free operation
• Efficient cooling system for stable operation in ambient temperatures of up to 45 deg. C (113 deg. F)
• Seamless backup signal input switching if primary signal transmission is interrupted

Versatile System Adaptability and Flexible Installation
• Shares included lens with Panasonic 1-Chip DLP projector family
• Compact body and free 360-degree installation (vertical and horizontal)
• DIGITAL LINK / HDMI support transmission of 4K signals
• Built-in Geometric Adjustment for projection onto specially shaped screens
• Supports Geometry Manager Pro and optional Upgrade Kit (ET-UK20)
• Data-cloning function copies configuration data from master projector to slave projectors via LAN, saving time and labor
• Direct Power Off function allows projector shutdown from mains

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic PT-RZ120 WUXGA Dual-Drive SOLID SHINE Laser Projector
  • Lens
  • Panasonic 3 Year Parts and Labor Limited Warranty
