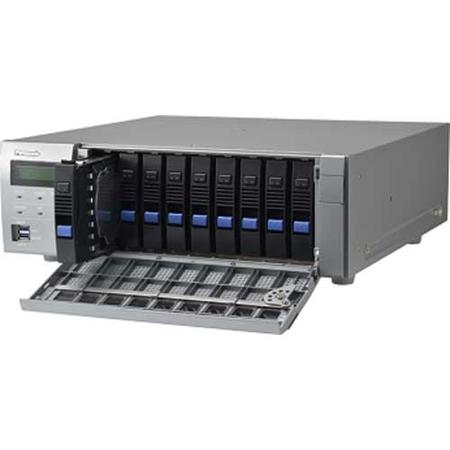

Panasonic i-Pro Extreme WJ-NX400 64-Channel H.265 NVR with 6TB (1x 6TB) HDD
See all Panasonic items

Panasonic i-Pro Extreme WJ-NX400 64-Channel H.265 NVR with 6TB (1x 6TB) HDD

SKU: PCWJNX4006T6

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic WJ-NX400 Specifications

Supported Devices

Supported Devices

Jump to...

  • Compatibility

    iPro Series network cameras
    ONVIF NVT conformant cameras and encoders

  • Compression

    H.265 (HEVC), H.264, and JPEG

  • Audio Format

    G.711 for ONVIF, G.726 (ADPCM) 32 kb/s

  • Channels

    64 (expandable to up to 128)

Recording

Jump to...

  • Resolution

    Aspect Ratio 4:3
    4000 x 3000, 2560 x 1920, 2048 x 1536, 1280 x 960, 800 x 600, 640 x 480

    Aspect Ratio 16:9
    3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360

    Aspect Ratio 1:1
    2992 x 2992, 2816 x 2816, 2048 x 2048, 1280 x 1280

    Aspect Ratio 9:16
    1080 x 1920, 720 x 1280, 360 x 640

  • Modes

    Event, schedule, emergency

  • Pre-Alarm

    Up to 15 sec

  • Sub-Stream

    768 kb/s (fixed data size)

  • Scheduled Recording

    16 x programs, 3 x time zones/day, independent setup for each day of the week

  • Frame Rate

    Up to 60 fps per camera (depending on the camera)

Functions

Jump to...

  • Camera Control

    Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode, click centering, wheel zoom, zoom reset, auto back focus, aux, wiper (for WV-SUD638)

  • Multi-Screen Display

    Main Monitor:
    4/9/16 split-screen display
    3/4/6/9/12/16/24/32/64 split-screen display or 1-screen sequence
    4 (9, 16) split-screen sequence on a full screen
    64-multiscreen is available when sub monitor isn't on

    Sub Monitor:
    1-screen sequence
    4 (9, 16) split-screen sequence
    9 (16) 32 split-screen display

  • Playback Control

    Play, rev play, pause, stop, FF, FR, prev record, next record, prev image, next image, go to date, go to last (30 sec)

  • Search Modes

    Time/date, playback by designating a timeline, VMD, thumbnail

  • Copy

    Recorded data of selected cameras and time/date range can be copied to USB storage

  • Camera Title

    Up to 16 characters

  • Clock Display

    Time: 12/24 hours
    Date: 5 formats

  • Digital Zoom

    Live/Play: 1.25x, 1.5x, 1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x
    (Only for 1-screen or 4-screen)

  • System Log

    Operator access (500), network error (100), error (1000), event (1000), operation (500)

  • System Setup

    Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, simplified Chinese, and Japanese

  • 360 Camera Dewarp

    Only in 1-channel display mode

  • Re-Encoding

    2Client (only when in 64-channel mode)

  • Time Synchronization

    Terminal (slave), NTP (server/client)

  • Summer Time

    User definable (using menu setup)

  • Remote Monitoring

    2Client
    Panasonic Security Viewer v.3.0 or later is required on smartphone / tablet PC

Browser GUI

Jump to...

  • GUI Language

    Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, simplified Chinese, and Japanese

  • PC Requirements

    CPU: Intel Core i7-860 or faster
    RAM: 4 GB or more
    VRAM: 128 MB or more (SD Memory Data Download minimum 64 MB), Microsoft DirectX 9.0c or later

Alarm and Event

Jump to...

  • Alarm Source

    32 x terminal inputs
    128 x camera alarms (Panasonic alarm protocol)
    128 x command alarms

  • Event Response

    Off/on

  • Alarm Actions

    Alarm recording, email notification, alarm message, camera positioning, terminal output, Panasonic alarm protocol output, buzzer, indicator

  • Alarm Control

    Reset

  • Event Log

    1000

Input/Output

Jump to...

  • Spot Output

    1 x 1 V p-p / 75 Ohms (BNC) NTSC/PAL (selectable in setup menu)

  • HDMI Resolutions

    Main Monitor:
    HDMI 4K UHD (3840 x 2160) at 30 Hz, 4K UHD (3840 x 2160) at 25 Hz, 1920 x 1080 at 60 Hz, 1920 x 1080 at 50 Hz, 1920 x 1080i at 60 Hz, 1920 x 1080i at 50 Hz, 720 x 576 at 50 Hz, 720 x 480 at 60 Hz

    Sub Monitor:
    HDMI 1920 x 1080 at 60 Hz, 1920 x 1080 at 50 Hz, 1920 x 1080i at 60Hz, 1920 x 1080i at 50 Hz, 720 x 576 at 50 Hz, 720 x 480 at 60 Hz

  • Audio Output Connector

    1 x RCA pin jack, -10 dBv, 600 Ohms, unbalanced

  • Alarm / Control Connectors

    D-sub 25-pin

  • Alarm

    Alarm input 1-32, alarm output, alarm reset input 1-4

  • Control

    Time adjustment input, 2 x 5 V output

  • Error/Status Reporting

    Network error output, HDD error output, camera error output, recorder error output, recording error output, emergency recording input, outage detection input, external recording mode switching input, outage processing end output

  • Mouse Interface

    2 x ports (1 x on front panel, 1 x on rear panel)

  • Network Ports

    2 x 10Base-T/100Base-TX/1000Base-T (RJ45)

  • USB Storage

    USB 3.0/2.0 memory, USB 3.0/2.0 connected HDD (except bus powered device)
    (Available separately)

  • External Storage

    Up to 5 x WJ-HXE400 (available separately)

Network

Jump to...

  • Network Interface

    2 x 10Base-T/100Base-TX/1000Base-T (RJ45)
    Maintenance Network Port: 1x 10Base-T/100Base-TX (RJ45)

  • Recording Rate

    Up to 384 Mb/s

  • Bandwidth

    Up to 640 Mb/s, total

  • Supported Protocols

    IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP
    IPv6: ICMPv6

  • Email Notifications

    Upon alarm or warning

  • Number of Simultaneous Users

    Up to 16

  • User Registration

    Up to 32 users

  • User Levels

    3 levels (programmable)

  • Partitioning

    User level - camera (view & control, no access)

  • Security

    User authentication (ID and password), host authentication, alteration detection, SSL/TLS

HDD

Jump to...

  • Drive Bays

    9x integrated drive bays, RAID 5/6
    Each drive bay supports HDD up to 6TB
    6 TB (1x 6 TB) preinstalled

  • Drive Expansion

    Supports up to 5x WJ-NX400 (available separately)
    Each WJ-NX400 supports up to 9x 3.5" (8.89cm) SATA HDDs, up to 6 TB each
    Hardware RAID: Single, RAID 1, 5, 6

Viewer Software

Jump to...

  • Record / Playback Control

    Play, rev play, pause, FF, FR, prev record, next record, prev image, next image

  • Additional Functions

    Alteration detection, save as JPEG, 2x zoom, print, copy

  • Supported OS

    Software Language: English or Japanese

General

Jump to...

  • Safety / EMC Standard

    UL (UL60065), FCC (part 15, class A), C-UL (CAN/CSA C22.2 No. 60065), DOC (ICES003 class A)

  • Power Source

    120 VAC, 60 Hz

  • Power Consumption

    Approx. 125 W (with 9 x 6 TB HDDs)

  • Ambient Operating Temperature

    Main Body: 41 to 113 Degree F / 5 to 45 Degree C
    Mouse: 41 to 104 Degree F / 5 to 40 Degree C

  • Ambient Operating Humidity

    5 to 90 % (non-condensing)

  • Maximum Operating Altitude

    6562' (2000m) above sea level

  • Dimensions

    16.94 x 5.19 x 5.75" (43.0 x 13.2 x 40.0cm), excluding rubber feet and projections

  • Weight

    Without HDDs: 25.4 lb (11.5kg)
    With 9 HDDs Installed: 44.1 lb (20kg)

About Panasonic WJ-NX400

H.265/H.264 high-throughput and scalable recorder featuring integrated GUI and robust embedded IP security enabling a secure end-to end PC-Less surveillance solution. The WJ-NX400 Network Disk Recorder is a one-box appliance that provides a full-featured IP video surveillance system including viewing, recording, alarm functions. searching, networking, management. WJ-NX400 supports up to 128 cameras and blends the simplicity of use and the benefits of IP-based video surveillance system.

Secure high bandwidth recording
• 64 ch. expandable to 128 ch. camera input. Support H.265 / H.264 mixed recordings
• 640 Mbps total through put (including 384 Mbps recording bandwidth)
• Symantec device certificates pre-installed

PC-less non VMS surveillance solution
• No camera license fees, no annual license updates required
• Built-in GUI and Dual HDMI (4K/FHD) outputs
• Automatic camera coniguration
• Sub-stream recording for mobile access and low bandwidth system environments

Scalable storage
• (9) integrated drive-bays RAID 5/6
• External storage expansion up to 324TB

High reliability and redundancy
• Dynamic HDD power management increases HDD life
• Redundant fail-over using 2 nd recorder to enable seamless mission-critical recording
• NVR backup important data to NAS devices
• TURBO-RAID for quick RAID recovery without sacrificing recording bandwidth and performance (KMS registration is necessary for activation)

Panasonic WJ-NX400 Features

  • 64 channel - expandable to 128 channel camera input
  • Secure high bandwidth recording with Symantec device certificates
  • H.265 System Recorder
  • Scalable storage - expansion up to 324TB

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 64 channel - expandable to 128 channel camera input
  • Secure high bandwidth recording with Symantec device certificates
  • H.265 System Recorder
  • Scalable storage - expansion up to 324TB

What's in the box:

  • i-Pro Extreme WJ-NX400 64-Channel H.265 NVR with 6TB (1x 6TB) HDD
  • Mouse
  • Panasonic 5 Year Limited Warranty
