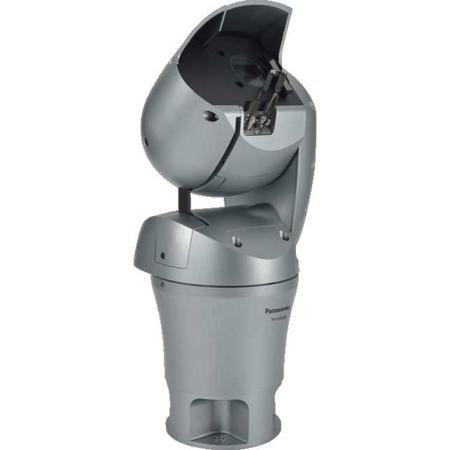

Panasonic WV-SUD638 AeroPTZ 1080p 2MP Rugged Outdoor PTZ Camera, Natural Silver
See all Panasonic items

Panasonic WV-SUD638 AeroPTZ 1080p 2MP Rugged Outdoor PTZ Network Camera, Natural Silver

SKU: PCWVSUD638

This item is no longer available.

Recommended Alternatives

Panasonic AW-HE145: Picture 1 regular
Panasonic AW-HE145 FHD HDMI/3G-SDI/IP Integrated PTZ Camera, Metallic Black
$13,060.11
Panasonic AW-HE145: Picture 1 regular
Panasonic AW-HE145 FHD HDMI/3G-SDI/IP Integrated PTZ Camera, Pearl White
$13,060.11
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Panasonic WV-SUD638 Specifications

Camera

Camera

Jump to...

  • Image sensor

    Approx. 1/3 type MOS image sensor

  • Minimum illumination

    Color : 0.06 lx (F1.6, Maximum shutter : Off(1/30 s), AGC : High)
    0.004 lx (F1.6, Maximum shutter : max. 16/30 s, AGC : High)

    BW : 0.02 lx (F1.6, Maximum shutter : Off(1/30 s), AGC : High)
    0.001 lx (F1.6, Maximum shutter : max. 16/30 s, AGC : High)
    0 lx (F1.6, Maximum shutter : Off(1/30 s), AGC : High, when the IR LED (Optional) is lit)

  • Super Dynamic

    Dynamic Range 105 dB typ.

  • Image settings

    Gain (AGC), White balance

  • Image compensation

    Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction

  • Shutter speed

    [2 mega pixel [16 : 9] (60 fps mode)]
    Off(1/60) to 1/10000
    Other than [2 mega pixel [16 : 9](60 fps mode)]
    Off(1/30) to 1/10000

  • Day/Night (ICR)

    Off / On / Auto1(Normal) / Auto2(IR Light) / Auto3(SCC)

  • IR LED Light (Optional)

    Off / Auto (High / Mid / Low) irradiation distance : 150 m (500 feet)

  • Image stabilization

    On / Off Hybrid image stabilizer

  • Privacy zone

    Gray / Mosaic / Off (up to 32 zones available)

  • Camera title on screen

    Up to 20 characters (alphanumeric characters, marks)

  • Video Motion Detection (VMD)

    On / Off, 4 areas available

Lens

Jump to...

  • Zoom Ratio

    30x / 45x with HD extra optical zoom (at 1280 x 720) (Motorized zoom / Auto Focus)

  • Digital (electronic) zoom

    x1, x2, x4

  • Focal length

    0.16 x 5.07" (4.3 mm - 129 mm)

  • Maximum Ratio Aperture

    1 : 1.6 (WIDE) - 1 : 4.7 (TELE)

  • Focus range

    2.0 m - Infinite

  • Aperture range

    F1.6 (WIDE) - Close

  • Angular field of view

    [16:9 mode: Horizontal : 2.3 Degree (TELE) - 64 Degree (WIDE)
    Vertical : 1.3 Degree (TELE) - 38 Degree (WIDE)

    4:3 mode: Horizontal : 1.8 Degree (TELE) - 50 Degree (WIDE)
    Vertical : 1.3 Degree (TELE) - 38 Degree (WIDE)

Pan/tilt unit

Jump to...

  • Panning Range

    360 Degree endless

  • Panning Speed

    Manual : approx. 0.065 Degree /s to 100 Degree /s
    Preset : up to approx. 200 Degree /s
    (Except when IR LED Unit is equipped, forward tilt mount, frozen.)

  • Tilting Range

    Upright : -45 Degree to +90 Degree
    Forward tilt : -90 Degree to +90 Degree
    Hanging : -90 Degree to +30 Degree

  • Tilting Speed

    Manual : approx. 0.065 Degree /s to 100 Degree /s
    Preset : up to approx. 200 Degree /s (Except when IR LED Unit is equipped, forward tilt mount, frozen.)

  • Preset Positions

    256 positions

  • Auto Mode

    Auto track / Auto pan / Preset sequence / 360 map-shot / Preset map-shot / Patrol

  • Self Return

    10 s to 60 min

  • Tilt ip

    On / Off

  • Map Shot

    360 Degree map shot / preset map shot

Network

Jump to...

  • Network IF

    10Base-T / 100Base-TX, RJ45 connector

  • Image Resolution H.264 JPEG (MJPEG)

    2 mega pixel [16 : 9] (60 fps mode / 30 fps mode)
    H.264 : Maximum 1,920 x 1080
    JPEG : Maximum 1,920 x 1080

    1.3 mega pixel [4 : 3] (30 fps mode)
    H.264 : Maximum 1,280 x 960
    JPEG : Maximum 1,280 x 960

  • Image Compression Method

    H.264
    Transmission Mode: Constant bit rate / Variable bit rate / Frame rate priority / Best effort / Advanced VBR
    Transmission type : Unicast / Multicast

    JPEG
    Image Quality : 10 steps

    Multiple streams individually congurable

  • Intelligent compression

    Smart coding, VIQS (ROI)

  • Audio compression

    G.726 (ADPCM) : 32 kbps / 16 kbps
    G.711 : 64 kbps
    AAC-LC : 64 kbps, AAC-LC(High quality) : 64 kbps / 96 kbps / 128 kbps

  • Protocol

    IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ
    IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ

  • Maximum concurrent access number

    Up to 14 users (Depends on network conditions)

Environment

Jump to...

  • Water and Dust Resistance

    Main body : IP66, IP67, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant
    Waterproof RJ45 connector, Waterproof power connector, Waterproof I/O connector

  • Shock resistance

    Compliant with IK10 (IEC 62262)

  • Vibration resistance

    IEC60068-2-6 compliant

  • Salt damage resistance

    ISO14993 compliant

  • Resistance to wind

    Upright
    216 km/h (135 mph) (Operation) / 288 km/h (180 mph) (non-destructive)

    Forward tilt
    50 m (112 mph) (Operation) / 80 m (180 mph) (non-destructive)

General

Jump to...

  • Power source

    AC100 to 240 V, 50 Hz / 60 Hz
    Tested PoE Injector (60 W) with limitations

  • Operating environment

    Ambient operating temperature : -50 Degree C to +60 Degree C (-58 Degree F to 140 Degree F) (When using AC100 to 240 V)
    -30 Degree C to +60 Degree C (-22 Degree F to 140 Degree F) (When using tested PoE Injector)
    Power on range : -30 Degree C to +55 Degree C(-22 Degree F to 131 Degree F)

  • External I/O terminals

    ALARM IN 1(DAY/NIGHT IN, Auto time adjustment), ALARM IN 2(ALARM OUT), ALARM IN 3(AUX OUT), Relay connection (x1 for each)

  • line input

    3.5 mm monaural mini jack
    Input impedance : Approx. 2 k Ohm (unbalanced)
    For Line Input level : Approx. -10 dBV

  • Audio output

    3.5 mm stereo mini jack (monaural output)
    Output impedance : Approx. 600 Ohm (unbalanced)
    Using Amplifier built-in external speaker
    Output level : -20 dBV

  • Finish

    Main body : Glass Fiber Reinforced Plastics
    Natural Silver
    Front glass : Glass, Clear

  • Dimensions (W x H x D)

    8.66 x 17.71 x 10.47" (220 x 450 x 266mm)

  • Weight

    Approx. 18.7 lb (8.5kg)

About Panasonic WV-SUD638

The AeroPTZ is an environmentally rugged camera designed to meet extreme weather conditions. Using the latest aerodynamic technology and salt-air corrosion resistant glass fiber body.

The rugged AeroPTZ (WV-SUD638) has Full HD resolution at 60fps with a 30 times optical zoom lens.The camera features hybrid image stabilisation technology and gyro-sensors, to minimise the impact of external vibrations. The AeroPTZ is the most environmentally rugged camera on the market, capable of withstanding more extreme conditions than ever before. The camera is ready for any installation and will reliably produce sharp, crisp images, whatever the weather.

Extreme Conditions

Vandal Resistant
Meets IK10 Standards and is impact resistant.

Salt air Resistant
The Glass Fiber Body will not be corroded by salt in the ocean breeze. ISO14993 Compliant.

Wind Resistant
The camera continues to function even during hurricanes and typhoons of wind speeds up to 60 m/s (135 mph). The camera will not be damaged by winds up to 80 m/s (180 mph).

Waterproof IP66 & IP67 Standard
The camera can be installed in locations that are frequently wet with heavy rainfall, flood occasionally, or are sprayed with strong spurts of water.

Vibration Resistant Construct
In order to capture stable images,Hybrid image stabilizer (Video SAS technology) reduces vibrations when large vehicles pass and swaying on top of bridges.

Sustains Harsh Environments
The camera continues to function in extremely cold (-50 Degree C) and extremely hot (+60 Degree C) environments. (Defroster & Dehumidification Device) Natural Silver model only. Gray & Brown model up to +55 Degree C

Efficient monitoring as reducing vibration
The AeroPTZ camera is equipped with Hybrid image stabilizer function, and reduces the various vibrations and stream stable images even if the camera is installed under strong wind and the place which has plenty of vibration.

Can monitor images at the salt air place
The AeroPTZ camera is rated to ISO14993 and is equipped with a body which can be captured in heavy-salt damage place, a glass fiber body. In addition, the camera is equipped with the anti-salt material such as the corrosion-resistant screws, the borosilicate glass and the die-cast part painted.

Easily Adjust the Direction of the Camera
When using the 360-degree endless pan and tilt which are provided by "Sphere P/T", it selects no place to install since the AeroPTZ camera can easily be adjusted the direction of the lens. The camera can be installed on the desktop and ceiling. When being installed on the desktop, it is also possible to monitor directly below.

IR LED Unit
Add the IR LED Unit to monitor extremely dark, 0 lux environments. The IR LED Unit can be attached without altering the external appearance of the camera.

Wiper & Washer
The AeroPTZ camera has Wiper & Washer, it removes water and dirt that blur image since it moves parallel in front of lens, and it can capture clear images. The 360-deg aerodynamic spherical form of this camera decreases snow and dust accumulation.

Panasonic WV-SUD638 Features

  • Enhanced Super Dynamic Range - 133dB
  • Continuous 360 Degree pan with 30x optical zoom
  • Built-in IR LED up to 500 feet
  • Hybrid Image Stabilization - 1 to 30Hz
  • IP67/IP66, NEMA-4X, IK10 compliant
  • Smart Coding - Reduce bandwidth usage up to 75%
  • Full HD (1080p) 60 fps, x30 zoom lens
  • Built-in wiper and Auto defroster
  • Wind load durability 60 m/s (135 mph) (operation), 80 m/s (180 mph) (non-destructive)
  • Video SAS (Stability Augment System) for high-class image stabilization
  • "Sphere vision" provides 360 Degree 3D viewing (Pan : 360 Degree endless, tilt : 90 Degree to -90 Degree )
  • Temperature -50 Degree C to +60 Degree C (-58 Degree F to +140 Degree F)*
  • Natural Silver model only. Not available IR LED Unit when the temperature is over 55 Degree C
  • Gray & Brown model : up to +55 Degree C
  • IP67, IP66, IK10 certified
  • Optional IR LED light (up to 150 m/500 feet, zoom interlocking)
  • Anti-salt air corrosion protection ideal for seaside operations
  • Smart coding mode for additional compression

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhanced Super Dynamic Range - 133dB
  • Continuous 360 Degree pan with 30x optical zoom
  • Built-in IR LED up to 500 feet
  • Hybrid Image Stabilization - 1 to 30Hz
  • IP67/IP66, NEMA-4X, IK10 compliant
  • Smart Coding - Reduce bandwidth usage up to 75%

What's in the box:

  • WV-SUD638 AeroPTZ 1080p 2MP Rugged Outdoor PTZ Network Camera
  • Panasonic 3 Year Limited Warranty
