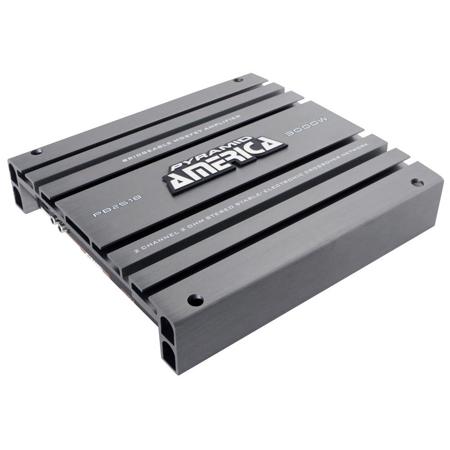

Pyramid PB2518 3000 Watt 2-Channel Bridgeable Mosfet Amplifier
See all Pyramid items

Pyramid PB2518 3000 Watt 2-Channel Bridgeable Mosfet Amplifier

SKU: PDPB2518

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Skarr O : caught my eye

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Pyramid PB2518 Specifications

  • Output Power (@ 14.4 VDC 1 KHz)

    RMS Power: 75W x 2 (@ 4 Ohms), 150W x 2 (@ 2 Ohms)
    Max Power: 3000W (@ 1 Ohms)

  • Bridged Mode (@ 4 Ohms)

    300W x 2 or 3000W x 2 and 300W x 1

  • Frequency Response

    10-30000 Hz ( +/-3 dB)

  • Input Impedance

    10K Ohms (Low Level)
    100 Ohms (High Level)

  • Input Sensitivity

    250mV (Low Level)
    2.5V (High Level)

  • Power Supply Voltage

    DC 14.4V Negative Ground (10.5-16V)

  • Matching Speaker Impedance

    Stereo Mode: 2-4 Ohms
    Bridged Mode: 4-8 Ohms

  • Maximum Current Draw

    35A x 1

  • Dimensions (W x H x L)

    10.24 x 2.26 x 11.02" (260 x 57 x 280mm)

  • Weight

    7.19 lb (3.26kg)

  • UPC Code

    068888993241

About Pyramid PB2518

Pyramid PB2518 Features

  • Two Channel Amplification
  • 2x 1500W Max Output
  • 1x 3000W Watts 2 Bridged
  • Fully Adjustable Electronic Crossovers
  • Variable Bass Boost (0-12DB@50Hz)
  • Soft Turn On/Off Circuit
  • 2 Ohm Stereo Stable
  • Bridgeable into 4 Ohms
  • Mosfet PWM Power Supplies
  • Variable Gain Control
  • Remote Turn On
  • Heavy Duty Aluminum Alloy Heat-sink
  • Hi/Low Level Inputs
  • High Impedance Input
  • High Level Molex Input
  • Power and Protection LED's
  • S/N Ratio: >95dB
  • THD less than 0.04%
  • Fully Protected Circuitry

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Two Channel Amplification
  • 2x 1500W Max Output
  • 1x 3000W Watts 2 Bridged
  • Fully Adjustable Electronic Crossovers
  • Variable Bass Boost (0-12DB@50Hz)
  • Soft Turn On/Off Circuit

What's in the box:

  • PB2518 3000 Watt 2-Channel Bridgeable Mosfet Amplifier
  • Pyramid 1 Year Limited Warranty
