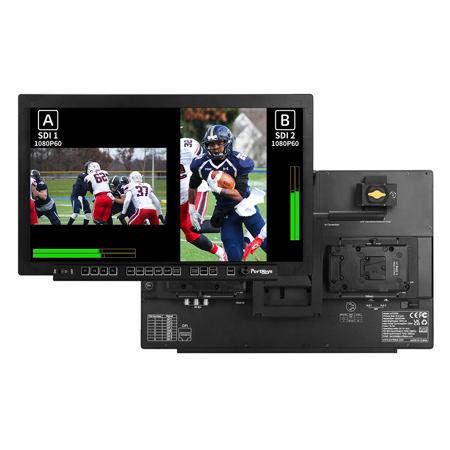

Portkeys MT22DS 21.5" Full HD Dual Screen Production Monitor, Supports 3G-SDI and 4K HDMI

After investing in the MT22DS 21.5" Full HD Dual Screen Production Monitor, you'll experience the efficiency of split-screen monitoring with the ability to load the same 3D LUT file on both screens. This innovative feature supports dual horizontal, dual vertical, and various combinations of left and right screen cropping from the same source. Notably, each screen can be individually flipped and mirrored for custom viewing preferences.

This high-quality production monitor also offers a unique custom JPG picture freeze frame feature. After capturing an image, you can compare it with real-time video through semi-transparent image superposition, enhancing your video editing process. Please note that this feature requires a 16:9 1920x1080 jpg image.

The MT22DS monitor is designed with a wireless video transmission power supply plate, supporting both NPF battery and V-port battery wireless video transmissions. The plate can be adjusted to 90, 180, or 270 degrees, providing flexibility in your setup.

Constructed with a CNC aluminum alloy all-metal shell, this durable monitor ensures fast heat dissipation and high durability, making it a reliable choice for demanding video production environments.

The monitor supports 3D LUT HDMI output, allowing HDMI and 3G-SDI to output video after loading 3D LUT. It also supports anamorphic lens calibration with a supported ratio range from 1.00X to 2.35X and user-defined adjustment range from 0.25X to 4.00X.

The built-in HDMI to SDI output eliminates the need for an external signal conversion box, simplifying your setup. The monitor also features a 48V Phantom Audio Embedded SDI Output with a standard 4-pole XLR connector.

For optimal image quality, the MT22DS monitor offers brightness and RGB signal detection before and after loading 3D LUTs. It also provides a customized peaking range (peaking frame) to avoid rendering camera parameters and a custom rectangular image crop feature for detailed image monitoring.

Finally, the monitor comes with factory color calibration, utilizing the 709 color gamut with X-Rite 1D hardware for more accurate color calibration and intuitive image monitoring. Experience the difference of the MT22DS 21.5" Full HD Dual Screen Production Monitor in your video production and monitoring tasks.
