Kit Savings

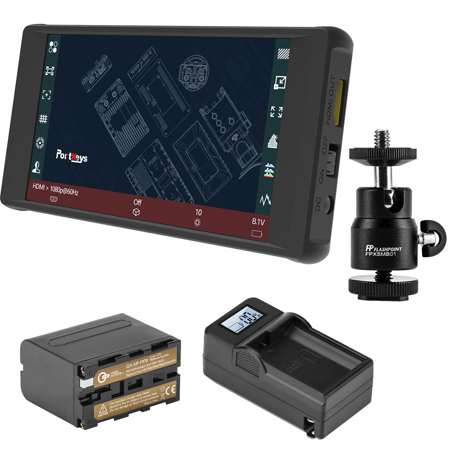

Portkeys PT6 5.2" Full HD Touchscreen Monitor, Bundle with NP-F970 Battery, Smart Charger, Smart Charger Plate and Mini Ball Head

SKU: PKPT6B MFR: PT6 B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Portkeys PT6 5.2" Full HD Touchscreen Monitor, Supports 4K HDMI
    Portkeys PT6 5.2" Full HD Touchscreen Monitor, Supports 4K HDMI
  • +
  • Green Extreme NP-F970 Battery Pack
    Green Extreme NP-F970 Battery Pack
  • +
  • Green Extreme Compact Smart Charger Base with LCD Screen
    Green Extreme Compact Smart Charger Base with LCD Screen
  • +
  • 2 more

Key Features

  • Achieve crystal-clear visuals with the 5.2" Full HD 1920x1080 touchscreen monitor, perfect for precise focus.
  • Experience vibrant, accurate colors and bright images thanks to the impressive 600nit display brightness.
  • Seamlessly connect your camera with 4K HDMI input/output, ensuring high-quality video monitoring.
  • Enjoy extended shooting sessions with versatile NP-F and LP-E6 battery compatibility for reliable power.
  • Lightweight and compact at just 4.58 oz, this portable monitor is ideal for on-the-go filmmakers.
  • Enhance your workflow with advanced features like 3D LUT support and anamorphic de-squeeze for professional results.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$24.99

2 Year

$34.99

3 Year

$49.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-12-19T17:50:54

Rated 5 out of 5

Small and light solution

I like that it's small and light.

kornelia r.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Portkeys PT6 Specifications

General

General

Jump to...
  • Material

    PC + ABS

  • Screen Size

    5.2" (13.21cm)

  • Viewing Angle

    178 Degree H/178 Degree V

  • Brightness

    600nit

  • Resolution

    1920 x 1080 (Full HD)

  • Contrast Ratio

    1500:1

  • Color Depth

    10bit (8+2FRC)

  • Maximum Power

    6W

  • Color Gamut

    100% P3

Software Function

Jump to...
  • Software Function

    3D LUT, New Peaking, Peaking Frame, Luma Waveform, Luma Histogram, RGB Waveform, Anamorphic, ARRI False Color, False Color, Peaking, Guides, Zebra, Cross Hair, Check Field, HLG, Grids, Touch Screen, Custom RGB, Backlight, Display Flip, Osd Flip, Image Brightness, Contrast, Chroma, Sharpness, Tint, Color Temperature, Battery Voltage Checking, Audio Meters, Image Crop

Interface

Jump to...
  • Video Input/Output

    Input Interface: 4K30p HDMI
    Output Interface: 1080p60 HDMI

  • Support Battery Model

    Sony NP-F970/F960/F750/F550
    Canon LP-E6

  • Power Input

    7.4-24V

  • USB-A

    Upgrade Firmware/Load 3D LUT
    5V2A Charger Input Power Supply

  • Audio Output

    3.5mm Headphone Jack

  • HDMI Output Function

    Stretch legs when shooting vertically Output
    3D LUT Output
    Anamorphic lens calibration Output
    UI Output
    Image Brightness, Tone, Contrast Adjustment Output

HDMI Input Signal

Jump to...
  • HDMI Input Signal

    4096 x 2160p @24Hz
    3840 x 2160p @23.97 Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920 x 1080p @23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
    1920 x 1080psf @23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920 x 1080i @50Hz, 59.94Hz, 60Hz
    1280 x 720p @50Hz, 59.94Hz, 60Hz
    720 x 576p & 720 x 576i @50Hz
    720 X 480p & 720x480i @50Hz, 59.94Hz, 60Hz

HDMI Output Signal

Jump to...
  • HDMI Output Signal

    1920 x 1080p @23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
    1920 x 1080psf @23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920 x 1080i @50Hz, 59.94Hz, 60Hz
    1280 x 720p @50Hz, 59.94Hz, 60Hz
    720 x 576p & 720 x 576i @50Hz
    720 x 480p & 720 x 480i @50Hz, 59.94 Hz, 60Hz

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions

    5.93 x 3.06 x 0.33" (150.7 x 77.8 x 8.5mm)

  • Weight

    6 oz (170g)

  • UPC Codes

    192223286689, 840014139637, 840014139651, 840014129959, 840014116270, 9331924263822

About Portkeys PT6

FEATURED REVIEWS

Small and light solution

By kornelia r.

I like that it's small and light.

The Portkeys PT6 is a professional entry-level 5.2-inch on-camera monitor with 600nits of brightness, 100% coverage of DCI-P3 color space, HDMI input and output ports, and 3D-LUT output capabilities.

The Portkeys PT6 is a lightweight 5.2-inch on-camera touchscreen monitor with an impressive budget/feature ratio, all in a very compact form factor. The housing of the PT6 is made of robust polycarbonate and ABS that helps keeps the weight down to only 170g/6oz (without battery).

This monitor has a maximum brightness of 600nits, perfect for shooting indoors or in a controlled studio environment. The 10-bit (8+2 FRC) panel covers 100% of the DCI-P3 color space, which means no color banding, accuracy, and true-to-life color reproduction. This 5.2-inch monitor has a Full HD 1920 x 1080 resolution, a large 178 Degree viewing angle, and a 1500:1 contrast ratio.

On the left side of the monitor, you'll find an HDMI input port that can take resolutions up to 4K DCI at 24fps or 4K UHD at up to 30fps. On the right end side, an HDMI output port with a maximum resolution of 1080p60 allows you to output a clean video feed. Furthermore, the HDMI output can also display a video signal with a 3D LUT, anamorphic de-squeeze, and image adjustments such as contrast, brightness, and tone modifications.

But don't let the compact form factor of the PT6 fool you, as it is packed with many professional monitoring tools, including:

• Exposure tools: Luma and RGB Waveform, Histogram, and Zebra to accurately expose the image
• 3D LUT monitoring and 3D LUT HDMI output. You can load custom LUTs via the USB port on the left side of the monitor
• False Color and ARRI False Color mode
• A new Peaking algorithm with a Peaking Frame feature so your camera's UI can stay clear
• Customized image crop to zoom in anywhere in the image
• Framing guides, grids, aspects
• Audio meters, and you can also monitor your audio signal via the 3.5mm headphone jack on the left side of the PT6
• Anamorphic image de-squeeze with all the standard ratios (1.33x, 1.5x, 2.0x) and the possibility to enter a custom aspect ratio from 0.25 to 4.0x
• Stretch leg tool: when shooting vertically, you can stretch the bottom part of the image
• Sharpness, chroma, brightness, backlight, tint, and color temperature adjustments

In terms of power, you'll find a dual built-in battery plate at the back of the monitor that accepts either Sony NP-F or Canon LP-E6 batteries. With an extremely low power draw of only 6W, a single Canon LP-E6 battery pack can give you up to three hours of battery life!

Portkeys PT6 Features

  • 5.2", 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1500:1 contrast ratio
  • Maximum brightness of 600nits, 100% DCI-P3 coverage
  • 1x 4K HDMI input, 1x HDMI output
  • Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color
  • 3D LUT monitoring and 3D LUT HDMI output capabilities
  • Built-in Sony NP-F and Canon LP-E6 style battery plate
  • 5.5mm barrel connector 7V-24V power input

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve crystal-clear visuals with the 5.2" Full HD 1920x1080 touchscreen monitor, perfect for precise focus.
  • Experience vibrant, accurate colors and bright images thanks to the impressive 600nit display brightness.
  • Seamlessly connect your camera with 4K HDMI input/output, ensuring high-quality video monitoring.
  • Enjoy extended shooting sessions with versatile NP-F and LP-E6 battery compatibility for reliable power.
  • Lightweight and compact at just 4.58 oz, this portable monitor is ideal for on-the-go filmmakers.
  • Enhance your workflow with advanced features like 3D LUT support and anamorphic de-squeeze for professional results.

What's in the box:

  • Portkeys PT6 5.2" Full HD Touchscreen Monitor
  • HDMI Cable
  • Micro-HDMI to HDMI Cable
  • MH-2 Mount with Hex Key
  • 2x Rubber Cover
  • Foldable Sunshade
  • Safety Case
  • Portkeys 1 Year Limited Warranty
  • Bundle Includes:
  • Green Extreme NP-F970 Battery
  • Green Extreme Compact Smart Charger Base with LCD Screen
  • Green Extreme Smart Charger Plate
  • Flashpoint Lightweight Mini Ball Head with Lock and Cold Shoe
