Portkeys MT22 21.5'' Full HD Broadcast Director Monitor, Supports 4K HDMI/3G-SDI
See all Portkeys items

Portkeys MT22 21.5'' Full HD Broadcast Director Monitor, Supports 4K HDMI/3G-SDI

SKU: PKSMT22

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Portkeys MT22 Specifications

  • Screen Size

    21.5" (54.61cm)

  • Viewing Angle

    178 Degree H/178 Degree V

  • Brightness

    1000nit

  • Resolution

    1920x1080

  • Contrast Ratio

    3000:1

  • Color Depth

    8+2 (FRC) bit Aluminum alloy Material

  • Input Voltage

    DC 12-24V

  • Maximum Power

    40W

  • HDMI Signal

    4096 x 2160p@24Hz
    3840 x 2160p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz
    1920 x 1080p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz, 50Hz,59.94Hz,60Hz
    1920 x 1080psf@23.97Hz,24Hz,25Hz,29.97Hz,30Hz
    1920 x 1080i@50Hz,59.94Hz,60Hz
    1280 x 720p@50Hz,59.94Hz,60Hz720 x 576p@50Hz
    720 x 576i@50Hz
    720 x 480p@50Hz,59.94Hz,60Hz
    720 x 480i@50Hz,59.94Hz,60Hz

  • SDI Signal

    1920 x 1080p@50fps,59.94fps,60fps
    1920 x 1080p@50Hz,59.94Hz,60Hz YUV422
    1920 x 1080p@23.98Hz,24Hz,25Hz,29.94Hz,30Hz YUV444/YUV422/RGB444
    1920 x 1080psf@23.98Hz,24Hz,25Hz,29.94Hz,30Hz YUV444/YUV422/RGB444
    1920 x 1080i@50Hz,59.94Hz,60Hz YUV444/YUV422/RGB444
    1280 x 720p@50Hz,59.94Hz,60Hz YUV444/YUV422/RGB444
    720 x 480i@59.94Hz YUV422
    720 x 576i@50Hz YUV422

  • Video Input/ Output

    Input Interface: 3 SDI, 4K HDMI, Video, R/L, GPI, F key
    Output Interface: 3G SDI, 4K HDMI

  • Signal convert

    Convert HDMI in to SDI out, Convert SDI in to HDMI out, Waveform output, 3D LUT output

  • Upgrade Firmware/Load LUT

    USB-A

  • Audio Input/Output

    Input Interface: XLR 1, XLR 2
    Output Interface: 3.5mm Headphone Jack

  • DC Input Power

    Input Interface: 4pin XLR connector
    4pin aviation connector 12-24V

    Output Interface: D-TAP 12-24V, DC 5V, USB 5V Wireless video transmission power supply plate

  • Automatic color correction

    Color correction focus puller

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-Ion

  • Battery Quantity

    2

  • Battery Type

    -

  • Dimensions

    20.59 x 12.59 x 4.33" (523 x 320 x 110mm)

  • Weight

    12.78 lbs (5.8kg)

  • UPC Code

    5059718989171

About Portkeys MT22

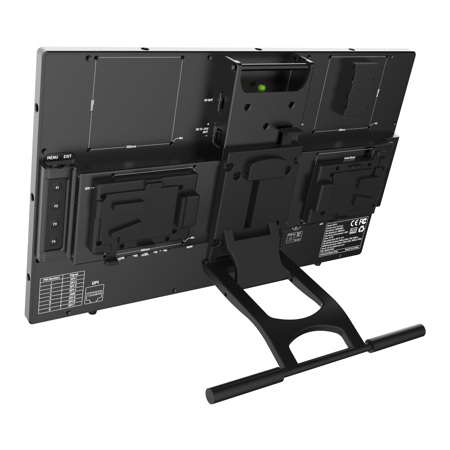

MT22 is a 21.5-inch high brightness production monitor with 1000 nit brightness, 1920x1080 resolution, 3000:1 contrast ratio, achieving 10-bit color depth through FRC technology. It is a large monitor with HLG function that can monitor richer colors and details of the picture.

Portkeys MT22 Features

  • Support multiple devices to simultaneous monitor
  • Provides two-way 3G-SDI inputs and one way SDI output, Four-way HDMI input and output up to 4K
  • Folding stand
  • Support monitoring from various angles
  • X-rite 709 color gamut automatic color calibration
  • Support use x-rite i1 Display Pro screen color calibration device for one-click calibration
  • Wireless Video Transmission Power Supply Plate
  • Compatible model: XM1000S CineEye-ProMoma400s
  • Provide multiple power supply methods CANNON power interface, D-TAP power interface, and V mount battery plate

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Support multiple devices to simultaneous monitor
  • Provides two-way 3G-SDI inputs and one way SDI output, Four-way HDMI input and output up to 4K
  • Folding stand
  • Support monitoring from various angles
  • X-rite 709 color gamut automatic color calibration
  • Support use x-rite i1 Display Pro screen color calibration device for one-click calibration

What's in the box:

  • Portkeys MT22 21.5'' Full HD Broadcast Director Monitor
  • 12V 5A Power Cable
  • Collapsible Bracket
  • Hexagon Socket Wrench
  • 8x Crystal Drop Rubber Buttons
  • Portkeys 1 Year Limited Warranty
