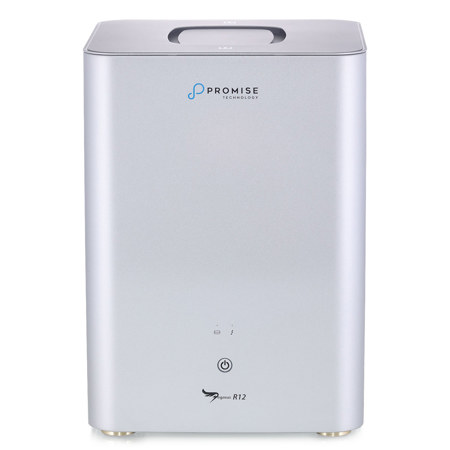

Promise Technology Pegasus R12 Thunderbolt 4/USB 4 HDD RAID Array 168TB (12x14TB) 12-Bay

SKU: PRPGR12X14TG MFR: PGR12XXXXX14TG
Earn VIP Reward Points

Key Features

  • High-speed Thunderbolt 4 technology with 40Gbps transfer rate for rapid data access
  • Sleek 12-bay design supports up to 240TB storage with 20TB x12 3.5" enterprise HDDs
  • Equipped with PromiseRAID engine for unparalleled stability and performance
  • Intelligent fan control ensures whisper-quiet operation and efficient cooling
  • Predictive Data Migration (PDM) feature proactively prevents drive failures
  • GreenBoost technology for automatic power management and energy efficiency
See More Product Details

Product Options

Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$999.00

2 Year

$1,699.00

3 Year

$2,599.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Promise Technology Pegasus R12 Thunderbolt 4/USB 4 HDD RAID Array Specifications

General

General

Jump to...
  • Available Total Hard Drive Capacity

    60TB, 108TB, 96TB, 168TB, 240TB

  • Available Number of Total Expansion Bays

    60TB, 108TB: 6
    96TB, 168TB, 240TB: 12

  • Hard Drive Configuration

    60TB: 6x10TB, 108TB: 6x18TB, 96TB: 12x8TB, 168TB: 12x14TB, 240TB: 12x20TB

  • Form Factor

    Tower

  • Drive Support

    3.5" SATA 6Gbps

  • Processor

    Storage Processor 4 cores, 2.2 GHz

  • Memory

    8GB DDR4 ECC DIMM

  • Interface Type

    Thunderbolt4 40Gbps / USB4 40Gbps / Thunderbolt3 40Gbps

  • Thunderbolt Port

    Thunderbolt4 ports x2 (Upstream x1, Downstream x1)

  • External Monitor

    One downstream Thunderbolt4 port can connect up to dual 4K monitors or single 8K monitor

  • Power Delivery

    85W (Thunderbolt host and USB4 host)

  • Port Type

    USB Type-C

RAID & Features

Jump to...
  • RAID Level

    RAID 0, 1, 5, 6, 10, 50, 60, JBOD

  • Hot Spare

    Yes

  • Max LUNs

    128

  • Hot Swap

    Yes

Software Highlights

Jump to...
  • Supported OS

    macOS, Windows

  • Management Tool

    PROMISE Utility Pro

  • Features

    Intelligent Cooling, Drive SMART health Polling

Environment

Jump to...
  • Temperature Range

    Operating: 41 Degree - 95 Degree F (5 Degree - 35 Degree C), Non-operating: -40 Degree - 140 Degree F (-40 Degree -60 Degree C)

  • Humidity

    Operating: 10%-95% non-condensing , Storage: 10%-95% non-condensing

  • Standard

    EMC: FCC, CE , Safety: cTUVus, CB

  • Green Certificate

    ErP/EuP, RoHS, WEEE

Physical

Jump to...
  • Power Supply

    AC 100-240V auto-ranging, 50-60Hz, 350W

  • Dimensions (L x W x H)

    8.9 x 8.9 x 12.5" (227 x 227 x 318mm)

  • Weight

    27.11 lbs (12.3kg)

  • UPC Code

    704118190027

About Promise Technology Pegasus R12 Thunderbolt 4/USB 4 HDD RAID Array

Let the Promise Technology Pegasus R12 Thunderbolt 4/USB 4 HDD RAID Array redefine your data storage experience with its cutting-edge Thunderbolt 4 technology, delivering an impressive 40Gbps transfer speed. This high-performance RAID array is powered by the industry-renowned PromiseRAID engine, known for its exceptional stability and performance, making it an ideal choice for both Mac and Windows users across various generations.

The Pegasus R12 boasts a sleek, elegant, and compact 12-bay desktop design, capable of accommodating up to 240TB of storage with 20TB x12 3.5" enterprise nearline HDDs. Despite its substantial capacity, the enclosure maintains a size comparable to most 8-bay models on the market, thanks to PROMISE's innovative high-density engineering. This design not only facilitates quick and easy drive swapping but also ensures minimal noise output, courtesy of its intelligent fan control system.

Designed for versatility and ease of use, the Pegasus R12 is a storage workhorse that seamlessly transitions from studio to studio or set to set. Its compact form factor allows for effortless portability, while its automatic power management system, activated upon connection with a Thunderbolt cable and power cord, aligns with host computer activities to conserve energy and minimize noise. The top cover design enhances its sleek appearance and provides easy access for drive replacement, while preventing accidental drive removal.

At the core of the Pegasus R12 is the PromiseRAID engine, a trusted name in enterprise storage for decades. This advanced technology includes the Predictive Data Migration (PDM) feature, which conducts periodic media checks and takes proactive measures to prevent drive failures, ensuring your data remains secure and accessible.

Incorporating GreenBoost technology, the Pegasus R12 continues the tradition of energy efficiency found in the Pegasus line. The system automatically enters energy-saving mode when the host computer is in sleep mode, shut down, or disconnected from the Thunderbolt connection, further enhancing its eco-friendly credentials.

Experience the perfect blend of capacity, performance, and reliability with the Promise Technology Pegasus R12 Thunderbolt 4/USB 4 HDD RAID Array, the ultimate solution for your desktop storage needs.

Promise Technology Pegasus R12 Thunderbolt 4/USB 4 HDD RAID Array Features

  • Elegant High-Performance
  • Big capacity in a compact system
  • Thunderbolt 4
  • 12-Bay Desktop Design
  • PromiseRAID is renowned in the storage industry for stability and performance

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • High-speed Thunderbolt 4 technology with 40Gbps transfer rate for rapid data access
  • Sleek 12-bay design supports up to 240TB storage with 20TB x12 3.5" enterprise HDDs
  • Equipped with PromiseRAID engine for unparalleled stability and performance
  • Intelligent fan control ensures whisper-quiet operation and efficient cooling
  • Predictive Data Migration (PDM) feature proactively prevents drive failures
  • GreenBoost technology for automatic power management and energy efficiency

What's in the box:

  • Promise Technology Pegasus R12 Thunderbolt 4/USB 4 HDD RAID Array
  • Power Cord
  • Thunderbolt/USB Type-C Cable (2.29')
  • User Manual
  • Promise Technology 3 Year Limited Warranty
