PreSonus FaderPort Classic Single Motorized Fader and Transport Control for DAWs, Mac OS X & Windows XP

SKU: PRSFADERPRTC

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?steven r : Gift

Reviews about this item

Review Summary

PreSonus FaderPort Classic Specifications

Computer System Requirements

Computer System Requirements

Jump to...
  • Windows

    Windows XP SP2 or later, Windows Vista, Windows 7 (32- and 64-bit)

  • Mac

    Mac OS X 10.8.5 or later (32- and 64-bit)

  • Windows and Mac Systems

    USB Port (1.1 or faster)

Software

Jump to...
  • Native Mode

    Ableton Live (all versions, using MIDI Learn)
    Apple Logic Express/Logic Pro 7, 8, 9, X
    Cakewalk Sonar 6, 7, 8, X1, X2, X3, Platinum
    Magix Samplitude Pro
    Magix Sequoia 10, 11, 12, 13
    PreSonus Studio One (all versions)
    Reaper 4, 5
    Steinberg Cubase SX3 and Cubase (all versions; 64-bit Mac must use HUI)
    Steinberg Nuendo (all versions; 64-bit Mac must use HUI)

  • HUI Emulation

    Apple Logic Express/Logic Pro X (see Knowledgebase)
    Avid Pro Tools 6 and later
    Avid Pro Tools M-Powered 6 and later
    MOTU Digital Performer (Mac and Windows, all versions)
    Steinberg Cubase SX3 and Cubase Pro
    Steinberg Nuendo (all versions)

Hardware

Jump to...

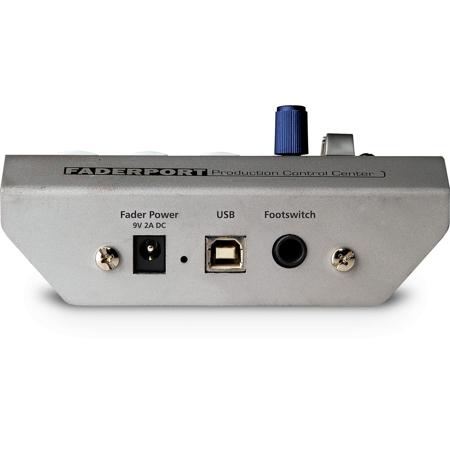

  • Input/Output

    1x USB 1.1 port
    1x Footswitch jack for hands-free punch in/out

  • Fader

    Alps 100 mm long-throw, touch-sensitive, motorized fader
    Dual servo motorized drive belt system for fast and quiet operation
    Ultra-smooth feel and lightning fast
    Heavy-duty construction
    Resolution: 10-bit, 1,024 steps

Buttons and Knobs

Jump to...
  • General Controls

    Pan, Mute, Solo, Record

  • Channel Select

    Bank, Output, L/R arrow

  • Fader Mode

    Read, Write, Touch, Off

  • Window View

    Mix, Project, Transport, Undo

  • Transport

    Punch/Previous (marker), User (user-definable)/Next (marker), Loop/Mark (set marker), Start, End, Rewind, Fast Forward, Stop, Play, Record (Functionality varies slightly, depending on the DAW)

  • Power

    Operational when USB bus-powered
    Motorized fader requires 9 VDC, 1.2A external power supply (factory configured, included)

General

Jump to...
  • Dimensions (HxDxW)

    1.75 x 7 x 5.25" (4.45 x 17.78 x 13.34cm)

  • Weight

    1 lbs (0.45kg)

About PreSonus FaderPort Classic

Touch your music
As great as DAWs are, it's a drag to control the transport and create fades and automation with a mouse. Most musicians prefer a real fader and transport controls that they can touch. That's why we created the FaderPort, which connects to your computer via USB and delivers complete transport controls for fast and efficient recording, along with a high-quality, touch-sensitive, motorized fader for writing fades and automation.

Great feel for perfect fades and smooth automation
Feel is crucial when you're spending countless hours recording and mixing. So the ultra-affordable FaderPort features the same high quality, touch-sensitive, long-throw, motorized Alps fader that is found in expensive control surfaces and digital mixing consoles. With its 1,024-step resolution and dual-servo drive-belt motor, the response will be smooth and seamless. Compatible with virtually all major DAW programs, the FaderPort enables you to record perfect fades and write single-channel or grouped-channel volume, mute and pan automation in real-time.

PreSonus FaderPort Classic Features

  • Control your DAW's Solo, Record-enable, window selection, Play, Stop and Record functions. Manage markers and punch in and out with a footswitch (not included). The FaderPort makes it fast and easy
  • You can even create your own custom key mappings. And if you use PreSonus' award-winning Studio One DAW software, your FaderPort will be automatically recognized and can be used to tweak virtually any plug-in parameter
  • So put down that mouse and get back in touch with your music. Get the PreSonus FaderPort
  • Write single-channel or grouped-channel volume, mute and pan automation
  • Touch-sensitive, 100mm long-throw, motorized Alps fader
  • 1,024 steps of resolution
  • Complete recording-transport controls: Punch, User, Loop, Previous/Next Marker, Start, End, Rewind, Fast Fwd, Stop, Play, Record
  • General controls: Record Enable, Pan, Mute, Solo
  • Channel Select controls: Bank, Output (Master Fader), Increment, Decrement
  • Window-view selection: Mix, Project, Transport, Undo/Redo
  • Fader-mode selection: Read, Write, Touch, Off
  • 5 User-defined key mappings
  • Hands-free punch in/out using footswitch (not included)
  • Input/Output
  • 1 USB 1.1 port
  • 1 Footswitch jack for hands-free punch in/out
  • Dual-servo drive-belt motor design for fast and smooth fader operation
  • Rugged metal top plate and military-grade buttons
  • External 9 VAC power supply
  • Compatible with all major recording software for Mac OS X and Windows
  • Tight integration with PreSonus Studio One software

What's in the box:

  • PreSonus FaderPort USB DAW Controller
  • 18" USB Cable
  • 9V Power Supply
  • Driver Installation Disc
  • PreSonus 1 Year Limited Warranty
