Kit Savings

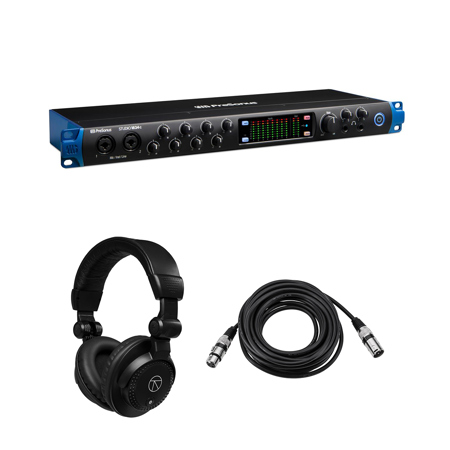

PreSonus Studio 18x20 High-Definition USB Type-C Audio/MIDI Interface, Bundle with TAPH100 Monitor Headphones and 25' Microphone Cable

SKU: PRSST1824CA MFR: 2777700402 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • PreSonus Studio 1824c 18x20 High-Definition USB Type-C Audio/MIDI Interface
    PreSonus Studio 1824c 18x20 High-Definition USB Type-C Audio/MIDI Interface
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture pristine audio with eight XMAX preamps, ideal for recording full bands.
  • Experience low latency recording via USB-C, perfect for real-time audio monitoring.
  • Expand your studio with 18 inputs/20 outputs for complex recording setups & mixing.
  • Achieve high-definition sound with 24-bit/192 kHz resolution for pro-level audio.
  • Seamlessly integrate MIDI devices for composing & controlling virtual instruments.
  • Bundled with Studio One Artist software, start recording & producing music right away.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PreSonus Studio 1824c Specifications

System Requirements

System Requirements

Jump to...
  • Computer System Requirements

    Mac:
    Mac OS X 10.8.5 64-bit or later
    Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
    4GB RAM (8GB or more recommended)

    Windows:
    Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
    Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
    4GB RAM (8GB or more recommended)

  • Computer System Requirements (Contd.)

    Mac and Windows Systems:
    USB-C or USB-A 2.0 port
    32GB hard disk space
    PreSonus Universal Control 2.0 or higher
    Monitor with 1366x768 resolution (high-dpi monitor recommended)
    Multitouch-enabled monitor required for touch operation

    iOS:
    iOS 9.3 or later
    iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2

  • Computer System Requirements (Contd..)

    Android:
    Android 5.0 (Lollipop) or later
    Android tablet (8") with 1024x768 resolution (UC Surface)

General

Jump to...
  • Sample Rates

    44.1, 48, 88.2, 96, 176.4, 192 kHz

  • Converter Resolution

    24-bit

  • Converter Dynamic Range

    114 dB

Microphone Inputs

Jump to...
  • Maximum Level

    +16 dBu, min gain

  • Gain Range

    80 dB

  • Frequency Response

    20 Hz - 20 kHz (unity gain)

  • Dynamic Range

    110 dB (A-wtd, min gain)

  • THD + N

    0.005% (1 kHz, 0dBu, unity gain)

  • EIN

    -128 dBu (A-wtd, 20 kHz BW, Rs=150Ohms, max gain)

  • Input Impedance

    1400 Ohms

  • Phantom Power

    48V (>10 mA per channel)

Line Inputs

Jump to...
  • Maximum Level

    +21 dBu (balanced, min gain)

  • Gain Range

    40 dB

  • Frequency Response

    20 Hz-20 kHz (unity gain)

  • Dynamic Range

    112 dB (A-wtd, min gain)

  • THD + N

    0.005% (1 kHz, +18 dBu, min gain)

  • Input Impedance

    10 kOhms

Instrument Inputs

Jump to...
  • Maximum Level

    +15 dBu (unbalanced, min gain)

  • Gain Range

    80 dB

  • Frequency Response

    20 Hz - 20 kHz (min gain)

  • Dynamic Range

    112 dB (A-wtd, min gain)

  • THD + N

    0.020% (1 kHz, +10 dBu, min gain)

  • Input Impedance

    1MOhms

Main Outputs

Jump to...
  • Type

    1/4" TRS female, DC Coupled

  • Maximum Level

    +18 dBu, balanced

  • Frequency Response

    20Hz - 20kHz (unity gain)

  • Dynamic Range

    108 dB (A-wtd, unity gain)

  • THD + N

    0.004% (1 kHz, -1 dBFS, unity gain)

Line Outputs

Jump to...
  • Type

    1/4" TRS female, DC coupled

  • Maximum Level

    +18 dBu, balanced

  • Frequency Response

    20 Hz - 20 kHz

  • Dynamic Range

    108 dB (A-wtd, -60 dBFS)

  • THD + N

    0.004% (1 kHz, -1 dBFS, unity gain)

Headphone Outputs

Jump to...
  • Maximum Power

    150 mW/channel (60Ohms load)

  • Frequency Response

    20 Hz - 20 kHz (unity gain)

  • Dynamic Range

    103 dB (A-weighted, 1 kHz, unity gain)

  • THD + N

    0.250% (1 kHz, 150 mW, unity gain)

  • Impedance Working Range

    32 Ohms to 600 Ohms

Software

Jump to...
  • Included Software

    Studio One Artist music production software
    Free UC Surface control software
    Studio Magic Plug-in Suite

Physical

Jump to...
  • Color

    Black

  • Dimensions (H x W x D)

    1.75 x 19 x 5.5" (4.45 x 48.26 x 13.97cm)

  • Weight

    4.8 lbs (2.18kg)

  • UPC Codes

    192223275737, 192223075498, 673454008078, 192223227576

About PreSonus Studio 1824c

PreSonus was a pioneer in high-channel-count audio interfaces and has spent the last 20 years creating the best audio interfaces for recording large sessions. Building on this legacy, the Studio 1824c provides amazing sound-quality with eight of PreSonus' lauded XMAX analog mic preamps onboard and pristine 24-bit 192 kHz conversion. Add two low-noise instrument preamps, balanced line-level inputs, and an ADAT input to add 8 more channels whenever you need them, and you have an audio interface ready to record just about any session.

When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus' professional-grade XMAX mic preamps capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound, so you'll hear every breath, transient, and detail in your recordings. Professional input and output metering let you keep an eye on your levels. A flexible DSP mixer lets you create four discrete near-zero-latency monitor mixes. Front-panel Mute, Mono, and level controls let you work with your main mix.

Whether you're upgrading your studio or building a new space for your band to record, the Studio 1824c has you covered with superior mic preamps, expandable inputs, and powerful, easy-to-use onboard monitor mixing to give you the world-class results you want.

Studio One Pro 7 DAW Software Included.
Your hardware registration includes a perpetual License to Studio One Pro.

PreSonus Studio 1824c Features

  • 24-bit/192 kHz, USB-C 18x18 1U rack mounted audio interface (8x8 at 192 kHz)
  • 2 mic/instrument/line inputs and 6 mic/line inputs all with XMAX Class A mic preamps and +48V phantom power
  • 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
  • 2 1/4" TRS balanced main outputs with front-panel level control and dedicated Mute and Mono buttons (duplicate line outs 1/2)
  • 8 1/4" TRS balanced DC coupled line outputs
  • 2 stereo headphone outputs with independent mix streams
  • LED metering on all analog inputs and main outs
  • S/PDIF I/O
  • MIDI I/O
  • BNC word clock output
  • Flexible routing, zero-latency monitor mixing, and control-room integration with included Studio One Artist
  • Monitor mix control with free UC Surface for macOS, Windows, iPad, and Android
  • USB-C to USB-C and USB-C to USB-A cables included
  • Studio Magic Plug-in Suite included

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture pristine audio with eight XMAX preamps, ideal for recording full bands.
  • Experience low latency recording via USB-C, perfect for real-time audio monitoring.
  • Expand your studio with 18 inputs/20 outputs for complex recording setups & mixing.
  • Achieve high-definition sound with 24-bit/192 kHz resolution for pro-level audio.
  • Seamlessly integrate MIDI devices for composing & controlling virtual instruments.
  • Bundled with Studio One Artist software, start recording & producing music right away.

What's in the box:

  • PreSonus Studio 18x20 High-Definition USB Type-C Audio/MIDI Interface
  • 3.3' USB Type-C Cable
  • 3.3' USB Type-A to USB Type-C Cable
  • External Power Supply
  • Studio One Pro 7 DAW Software
  • PreSonus 1 Year Limited Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • H&A Value Series 25' XLR M to F Professional Microphone Cable
