25% Off

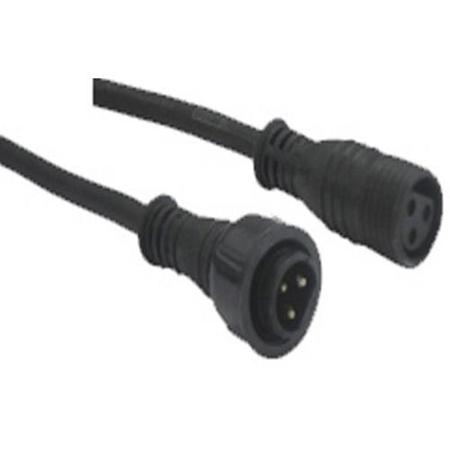

ProX XC-IPDMX-EX05 5' IP66 Outdoor DMX Extension Cable

SKU: PRXCPDMXEX05 MFR: XC-IPDMX-EX05
$15.00
$20.00
Save: $5 (25%)
Earn VIP Reward Points

Key Features

  • Get reliable DMX signal extension with the ProX XC-IPDMX-EX05 5' IP66 Outdoor DMX Extension Cable.
  • Ensure seamless lighting connectivity for clubs, weddings, and DJ concerts with this DMX cable.
  • This durable DMX extension cable offers a nominal impedance of 110 Ohms for optimal performance.
  • Enjoy worry-free outdoor lighting setups, thanks to the IP66-rated weatherproof DMX cable design.
  • Experience minimal signal loss with an attenuation of just 0.6 dB/100 ft using this DMX cable.
  • Rely on a robust DMX connection with a temperature range of -22 to 167 Degree F for any event.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

ProX XC-IPDMX-EX05 Specifications

  • Characteristic Impedance

    Nominal: 110 Ohms

  • Capacitance Conductor to Conductor

    Nominal: 12.8 pF/ft @ 1KHz

  • Cap Cond. To Other Cond. & Shield

    Nominal: 23 pF/ft @ 1KH z

  • Velocity of Propagation

    Nominal: 66%

  • Delay

    Nominal: 1.6 Nanoseconds per foot

  • Conductor DC Resistance

    Nominal: 24 Ohms/1000 ft @ 20 degrees C

  • Outer Shield DC Resistance

    Nominal: 3.4 Ohms/ 1000 ft @ 20 degrees C

  • Attenuation (dB/100 ft)

    Nominal: 0.6 (@ 1 MH z) dB/100 ft

  • Maximum Recommended Current

    2.1 Amps per conductor @ 25 Degrees C

  • Operating Temperature Range

    -22 to 167 Degree F (-30 to +75 Degrees C)

  • Fits

    Club, Wedding, Concert, Mobile DJ

Models
ProX XC-IPDMX-EX05 5' IP66 Outdoor DMX Extension Cable
$15.00

$20.00

Save:$5.00 (25%)

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

ProX XC-IEC14-10 10' 110V NEMA 15P Male Edison to IEC Replacement Power Cord
$14.99

$29.99

Save:$15.00 (50%)

In Stock

ProX XC-5PDMX10 10' 5-Pin DMX XLR5-M to XLR5-F High Performance Cable
$15.99

$31.99

Save:$16.00 (50%)

Ships from Manufacturer

Usually ships within 1-2 Days

Accessory TypeCableCableCable

About ProX XC-IPDMX-EX05

If you're in need of a robust and reliable solution for extending your DMX signal, the ProX XC-IPDMX-EX05 5' IP66 Outdoor DMX Extension Cable is the perfect choice. This high-quality extension cable features IP66 rated connectors, ensuring it can withstand harsh outdoor conditions while maintaining optimal performance.

Designed with the professional in mind, ProX cables are renowned for their uncompromised quality and exceptional performance across a wide range of connections, including instrument cables, speaker cables, RCA cables, DMX cables, and power cables.

The ProX XC-IPDMX-EX05 5' DMX signal extension cable is specifically engineered to deliver uncompromised signal power and precise data transmission, which are critical for efficient DMX control operations. It incorporates DuoFoil and braided OFC Copper Compact shield technology, which effectively blocks noise interference and safeguards data transfer, ensuring a reliable and uninterrupted connection.

Please note that twisted pair DMX data transmission cables, such as the ProX XC-IPDMX-EX05, are not suitable for audio use. Similarly, audio cables are not suitable for DMX data use due to their differing specifications and characteristics. For reliable and efficient connections, always use the correct cable type. Trust in the ProX XC-IPDMX-EX05 5' IP66 Outdoor DMX Extension Cable for your professional DMX control operations.

ProX XC-IPDMX-EX05 Features

  • Polyethylene insulation
  • Twisted Pair Data Cable
  • Polyethylene inner jacket
  • Duofoil (100% coverage)
  • Cotton plus a tinned copper braid shield (85% coverage)
  • PVC jacket for durability
  • Gold/Silver Plated Contacts
  • ProX IP66 Rated XLR Connectors
  • Excellent Durability and Superior Data Transfer
  • 20 AWG x 2 Oxygen-Free Copper (OFC) conductors
  • Extra Durable & Flexible Long Life Construction

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Get reliable DMX signal extension with the ProX XC-IPDMX-EX05 5' IP66 Outdoor DMX Extension Cable.
  • Ensure seamless lighting connectivity for clubs, weddings, and DJ concerts with this DMX cable.
  • This durable DMX extension cable offers a nominal impedance of 110 Ohms for optimal performance.
  • Enjoy worry-free outdoor lighting setups, thanks to the IP66-rated weatherproof DMX cable design.
  • Experience minimal signal loss with an attenuation of just 0.6 dB/100 ft using this DMX cable.
  • Rely on a robust DMX connection with a temperature range of -22 to 167 Degree F for any event.

What's in the box:

  • XC-IPDMX-EX05 5' IP66 Outdoor DMX Extension Cable
  • ProX Lifetime Limited Warranty
