ProX XC-DMX3M5F 6" DMX XLR3-M to XLR5-F Cable Adapter

SKU: PRXXCDMX3M5F MFR: XC-DMX3M5F
$5.99
$11.99
Save: $6 (50%)
Earn VIP Reward Points

Key Features

  • Easily adapt your DMX lighting setup with this 6" XLR3-M to XLR5-F DMX adapter cable.
  • Enjoy reliable data transmission with our ProX DMX cable, ensuring optimal lighting performance.
  • This durable DMX adapter features a robust build, perfect for stage and studio lighting setups.
  • Get superior signal clarity with a 110 Ohms impedance DMX cable, enhancing your lighting effects.
  • Connect various DMX lighting fixtures effortlessly using this convenient 6" adapter cable.
  • Maximize your lighting system's potential with a ProX DMX adapter, offering great value and performance.
See More Product Details
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

ProX XC-DMX3M5F Specifications

  • Characteristic Impedance

    Nominal: 110 Ohms

  • Capacitance Conductor to Conductor

    Nominal: 12.8 pF/ft @ 1KHz

  • Cap Cond. to Other Cond. & Shield

    Nominal: 23 pF/ft @ 1KHz

  • Velocity of Propagation

    Nominal: 66%

  • Delay

    Nominal: 1.6 Nanoseconds per foot

  • Conductor DC Resistance

    Nominal: 24 Ohms/1000' @ 68 Degrees F (20 Degrees C)

  • Outer Shield DC Resistance

    Nominal: 3.4 Ohms/ 1000' @ 68 Degrees F (20 Degrees C)

  • Attenuation (dB/100')

    Nominal: 0.6 (@ 1 MH z) dB/100'

  • Maximum Recommended Current

    2.1 Amps per conductor @ 77 Degrees F (25 Degrees C)

  • Operating Temperature Range

    -86 Degrees F to + 167 F Degrees (-30 Degrees C to + 75 Degrees C)

  • Length

    Cable: 6" (15.2cm)

  • UPC Code

    741459146948

Models
ProX XC-DMX3M5F 6" DMX XLR3-M to XLR5-F Cable Adapter
$5.99

$11.99

Save:$6.00 (50%)

In Stock

ProX XC-DMX5PTR DMX 5-Pin Terminator

SKU: PRXXCDMX5PTR

MFR: XC-DMX5PTR

$5.99

$11.99

Save:$6.00 (50%)

In Stock

ProX XC-DMX3PTR DMX 3-Pin Terminator

SKU: PRXXCDMX3PTR

MFR: XC-DMX3PTR

$5.99

$11.99

Save:$6.00 (50%)

Ships from Manufacturer

Usually ships within 1-2 Days

Accessory TypeCableCableCable

About ProX XC-DMX3M5F

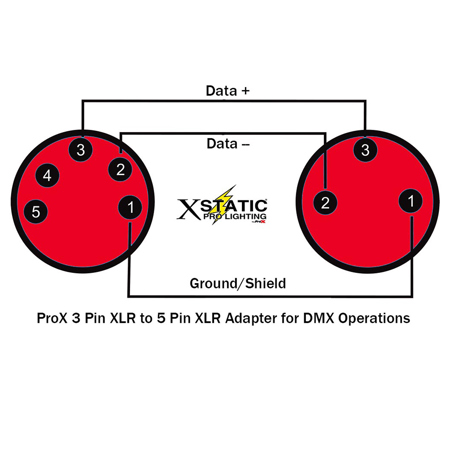

It's essential to have the right tools for your audio and video equipment, and the ProX XC-DMX3M5F 6" DMX XLR3-M to XLR5-F Cable Adapter is a versatile and reliable solution. This high-quality adapter cable is specifically designed for DMX connection applications, enabling seamless connectivity between devices with male XLR-3 DMX output/input and those with female XLR5 DMX output/input.

Constructed with 22AWG Oxygen-Free Copper (OFC) conductors, this durable cable adapter ensures maximum signal transfer, safeguarding your signal from potential alterations. The ProX XC-DMX3M5F Cable Adapter is more than just a cable; it's a shield that protects your data transfer from noise and interference, thanks to its DuoFoil and braided OFC Copper Compact shield.

Designed to withstand bending and twisting, this robust cable adapter is crafted for high-performance and tour-grade DMX operations. It's engineered to provide years of dependable service, outlasting standard cables on the market. The ProX XC-DMX3M5F Cable Adapter incorporates Complete Coil technology, which demands consistent weave tolerances to facilitate precise and accurate data transmission. This key feature significantly enhances the performance of your DMX control operations.

Whether you're a professional audio engineer or a hobbyist, the ProX XC-DMX3M5F 6" DMX XLR3-M to XLR5-F Cable Adapter is an affordable and essential tool for your audio and video equipment setup.

ProX XC-DMX3M5F Features

  • Polyethylene insulation
  • Twisted Pair Data Cable
  • Polyethylene inner jacket
  • Duofoil (100% coverage)
  • Cotton plus a tinned copper braid shield (85% coverage)
  • PVC jacket for durability
  • Gold Plated Contacts
  • ProX Branded, All Metal XLR Connectors
  • Excellent Durability and Superior Data Transfer
  • 20 AWG x 2 Oxygen-Free Copper (OFC) conductors
  • Extra Durable & Flexible Long Life Construction

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Easily adapt your DMX lighting setup with this 6" XLR3-M to XLR5-F DMX adapter cable.
  • Enjoy reliable data transmission with our ProX DMX cable, ensuring optimal lighting performance.
  • This durable DMX adapter features a robust build, perfect for stage and studio lighting setups.
  • Get superior signal clarity with a 110 Ohms impedance DMX cable, enhancing your lighting effects.
  • Connect various DMX lighting fixtures effortlessly using this convenient 6" adapter cable.
  • Maximize your lighting system's potential with a ProX DMX adapter, offering great value and performance.

What's in the box:

  • XC-DMX3M5F 6 " DMX XLR3-M to XLR5-F Cable Adapter
  • ProX Lifetime Limited Warranty
