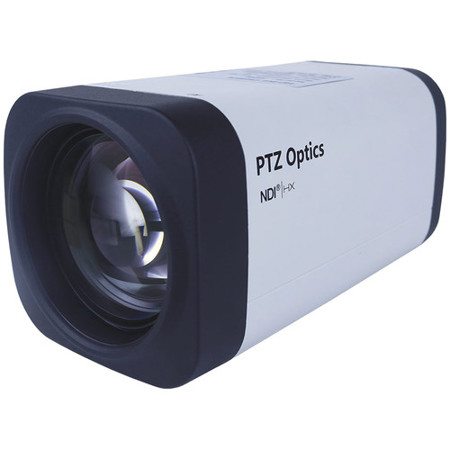

PTZOptics 2.07MP Full HD NDI|HX ZCam 3G-SDI Box Camera, 12x Optical Zoom, White

SKU: PT12XNDIZCAM MFR: PT12X-NDI-ZCAM
Earn VIP Reward Points

Key Features

  • Capture stunning, detailed video with the PTZOptics ZCam's 2.07MP Full HD sensor.
  • Experience smooth, clear visuals with up to 1080p60 resolution for professional video.
  • Achieve versatile shots using the 12x optical zoom, perfect for any studio environment.
  • Enjoy flexible connectivity with 3G-SDI and HDMI outputs for seamless integration.
  • Streamline your workflow with NDI|HX for high-quality, low-latency video over IP networks.
  • Ensure reliable performance with durable build quality and a comprehensive 3-year warranty.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JOHN L : Needed only a 12x zoom camera to stream. Other source had on back order since July.ROBERT B : Needed an NDI camera

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

PTZOptics NDI|HX ZCam Box Camera Specifications

Video Outputs

Video Outputs

Jump to...
  • Connectors

    3G-SDI (BNC - 75 Ohm, Female)
    HDMI v1.3 Type A (Female)
    10/100/1000 RJ-45
    Non-powered 3.5mm Female Input

  • Aspect Ratios

    4:3, 16:9

  • Standard Resolutions

    PAL, PAL wide, NTSC, NTSC Wide

  • Output Resolution Range

    480i-30 to 1080p60

  • Frame Rate

    Up to 60 fps

  • IP Streaming

    Video Bitrate Range: 32 - 20480 kbps
    Maximum 1080p Frame Rate 60fps
    Maximum 720p Frame Rate 120fps
    Audio Bitrate Options: 96K, 129K, 256K
    AAC Audio Encoding
    Audio Sample Rate Options: 44.1K, 48K

  • SDI (based on standards)

    300' (Recommended maximum Cable Length for)

  • HDMI (based on standards)

    45' (Recommended maximum Cable Length for)

  • Ethernet (based on standards)

    328' (Recommended maximum Cable Length for)

Camera and Lens

Jump to...
  • Video Sensor

    Panasonic 1/2.7" CMOS, 2.07 Megapixels

  • Scanning Mode

    Progressive

  • Frame Rates

    Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
    Experimental Broadcast Frame Rates: 1080p59.94, 1080i59.94, 1080p29.97, 720p59.94 (Beta)
    CVBS Only (576i-30, 480i-30)

  • Focal Length

    12x Optical, F3.5mm-42.3mm, F1.8-F2.8

  • Zoom Length

    12X Optical (PT12x)

  • Horizontal Field of View (Full Wide)

    12X Lens - 72.5 Degree

  • Horizontal Field of View (Full Tele)

    12X Lens - 7.0 Degree

  • Min Lux

    0.5 Lux at F1.8, AGC ON

  • Shutter Speed

    1/30s - 1/10000s

  • SNR

    >=55dB

  • Vertical Flip & Mirror

    Supported

  • Horizontal Angle of View

    12X Lens - 6.9 Degree (tele) to 72.5 Degree (wide)

  • Vertical Angle of View

    12X Lens - 3.9 Degree (tele) to 44.8 Degree (wide)

  • Wide Dynamic Range

    Supported

  • White Balance

    Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One Push (ok), Manual

  • Digital Noise Reduction

    2D & 3D Digital Noise Reduction

Networking

Jump to...
  • DHCP

    Supported

  • Static IP

    Supported

  • Multicast

    Supported

  • Dual Streaming

    Supported

  • 720p120fps

    Supported

  • HTTP Port Number

    Default 80

  • RTSP Port

    Default 554

  • TCP Port (Control)

    Default 5678

  • UDP Port

    Default 1259

  • Web Management

    Supported
    Guest & Admin Logins

Camera Control

Jump to...
  • 8-pin mini din In

    RS-232, RS-485, VISCA, PELCO-D/P

  • 8-pin mini din Out (passthrough)

    Used to cascade RS-232, RS-485, VISCA, PELCO-D/P controls to next camera in line

  • RS-485

    2-pin phoenix port
    Max distance: 1500m
    Protocols: VISCA/Pelco-D/Pelco-P

  • Baud Rate

    2400/4800/9600 bits

  • IP

    PTZOptics VISCA over IP

  • Recommended max. cable length for RS-232

    90 feet (30 meters)

  • Recommended max. cable length for RS-485

    3,600 feet (1,200 meters)

Pan & Tilt Movement

Jump to...
  • Pan Movement

    +/-170 Degree

  • Tilt Rotation

    Up: 90 Degree
    Down: 30 Degree

  • PTZ Presets

    10 via IR (255 via Serial or IP)
    255 presets via Serial or IP

  • Horizontal Pan Range

    +/-170 Degree

  • Vertical Pan Range

    -30 Degree to +90 Degree

  • Pan Speed Range

    1.7 Degree - 100 Degree /s

  • Tilt Speed Range

    1.7 Degree - 69.9 Degree /s

  • Preset Accuracy

    0.1 Degree

Electrical Index

Jump to...
  • Power Supply

    12W (Max)

  • Input Voltage

    12V DC (10.8 - 13.0V DC) or PoE 802.3af

  • Power over Ethernet

    Standard PoE supported 802.3af

Regulatory Compliance

Jump to...
  • FCC compliance

    FCC 47 CFR Part 15 Subpart B - Class A:2011, ANSI C63.4-2014

  • CE compliance

    EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017

Physical

Jump to...
  • Dimension (W x H x D)

    5.6 x 6.5 x 6.7" (142 x 164 x 169mm)
    With Tilt: 5.6 x 7.88 x 6.7" (142 x 189 x 169mm)

  • Weight

    3.05 lbs (1.38kg)

  • UPC Code

    737993161660

Models
PTZOptics 2.07MP Full HD NDI|HX ZCam 3G-SDI Box Camera, 12x Optical Zoom, White
$1,209.00

Special Order

Generally ships in 7-14 days, subject to availability

PTZOptics 8.51MP Full HD NDI|HX 3G-SDI Indoor ePTZ ZCam Box Camera, White
$899.00

$989.00

Save:$90.00 (9%)

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

PTZOptics 2.07MP Full HD 3G-SDI Box Camera, 20x Optical Zoom, White
$879.00

Special Order

Generally ships in 7-14 days, subject to availability

Resolution1080 HD1080 HD1080 HD
Sensor TypeCMOSCMOSCMOS
Sensor Size1/2.81/2.51/2.8
Recording MediaI/O ConnectionsI/O ConnectionsI/O Connections
Included Lens12x Zoom-20x Zoom

About PTZOptics NDI|HX ZCam Box Camera

For professionals in the broadcasting and video production industry, the 2.07MP Full HD NDI|HX ZCam 3G-SDI Box Camera with 12x Optical Zoom is a game-changer. This advanced PTZOptics camera model is fully compatible with NewTek's NDI technology, a leading IP technology in the industry, offering seamless integration for live streaming systems.

This high-definition PTZ camera supports Power, Video/Audio, and Control, all over a single Ethernet cable, making installation and setup a breeze. It boasts broadcast frame rates and NDI video outputs, making it an ideal choice for video production professionals.

The camera supports multiple standard IP streaming formats, including SDI, HDMI, and NDI, and is equipped with the latest professional PTZ camera control technologies. This makes remote camera operation incredibly easy and efficient. Once connected to an IP network, broadcasters can choose from professional 3G SDI connected workflows, Ethernet connected NDI workflows, and traditional HDMI workflows, all simultaneously.

With the option to choose from optical zoom lenses up to 30X, this camera allows video productions to remotely capture a head and shoulders shot from as far as 70' (21 meters) away. This makes it an excellent choice for live streaming, with native integration with top video software including Wirecast, xSplit, OBS (Open Broadcaster Software), vMix, Livestream Studio, MimoLive, Tricasters and more.

The camera also features NewTek NDI compatibility for instant accessibility over your network for audio, video, and PTZ camera control. The 3G-SDI is a preferred cabling for 1080p video at up to 60 frames per second run over long distances.

The PTZOptics HD-SDI camera models also include PoE (Power Over Ethernet), which can be used for power, control, and video/audio streaming. Every PTZOptics camera includes in/out RS-232 ports and a RS-485, using VISCA commands to integrate with larger control systems such as Crestron and Extron.

The camera also has the ability to live stream directly from the camera to your favorite CDN, simply by plugging in your CDN's RTMP Streaming information into the IP interface of your camera. The camera includes h.265 "High-Efficiency Codec" IP Streaming along with h.264 and multicast streaming.

The 12X models offer a wide field of view with the ability to zoom into narrow a 6.9 Degree. The 20X Models offer a wide 60.7 Degree FOV with a tight 3.36 Degree FOV. Every PTZOptics camera comes with a HDMI video output capable of video resolutions up to 1080p and a 3.5mm audio input for embedding audio.

In conclusion, the 2.07MP Full HD NDI|HX ZCam 3G-SDI Box Camera with 12x Optical Zoom offers unparalleled versatility and advanced features for professional video production and broadcasting.

PTZOptics NDI|HX ZCam Box Camera Features

  • Panasonic 1/2.7" HD CMOS Sensor
  • 3G-SDI & NDI|HX High Definition Video Output
  • H.264, H.265, & MJPEG IP streaming output (dual stream)
  • AAC Audio encoding over IP
  • High performance in low light scenarios
  • Full 1920x1080p HD Resolutions up to 60 FPS via SDI (30 FPS over NDI)
  • 3G-SDI, & NDI or IP streaming (Both simultaneously)
  • Std 1/4-20 female thread for camera mounting (bottom)
  • PoE (Power over Ethernet) or 12VDC
  • RTMP, RTSP, and NDI|HX
  • Hold left button on Menu Navigation for 5+ seconds to toggle Dynamic or Static IP addressing
  • Photobooth capable

Product Documents

User Manual

Key Features

  • Capture stunning, detailed video with the PTZOptics ZCam's 2.07MP Full HD sensor.
  • Experience smooth, clear visuals with up to 1080p60 resolution for professional video.
  • Achieve versatile shots using the 12x optical zoom, perfect for any studio environment.
  • Enjoy flexible connectivity with 3G-SDI and HDMI outputs for seamless integration.
  • Streamline your workflow with NDI|HX for high-quality, low-latency video over IP networks.
  • Ensure reliable performance with durable build quality and a comprehensive 3-year warranty.

What's in the box:

  • PTZOptics 2.07MP Full HD NDI|HX ZCam 3G-SDI Box Camera (White)
  • Power Adapter
  • User Manual
  • PTZOptics 3 Year Limited Warranty
