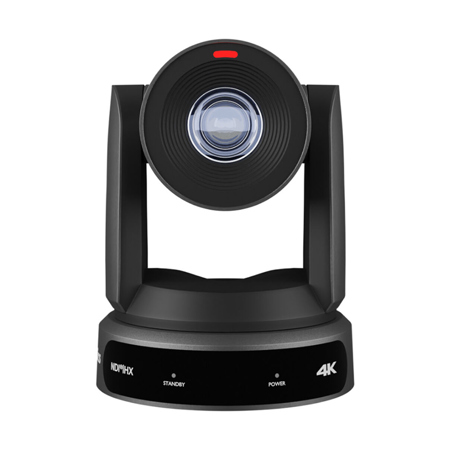

PTZOptics Move 4K SDI/HDMI/USB/IP/NDI|HX Indoor PTZ Camera with Tally Light Gray 30x

SKU: PTZ30X4KGYG3 MFR: PT30X-4K-GY-G3
Earn VIP Reward Points

Key Features

  • Capture stunning, detailed visuals with the PTZOptics 4K UHD video camera for professional quality.
  • Experience smooth, precise control with pan, tilt, and zoom functions for versatile video capture.
  • Streamline your setup using PoE+ for both power and network connectivity, simplifying integration.
  • Ensure clear audio with the 3.5mm line-level input, enhancing your video presentations and streams.
  • Use auto-tracking to keep subjects in frame, perfect for lectures or dynamic presentations.
  • Connect via HDMI, SDI, USB, or IP for flexible integration in diverse video production workflows.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?THOMAS D : church donationDEWAYNE A : My go to

Reviews about this item

Review Summary

PTZOptics Move 4K Specifications

Image Sensor & Lens

Image Sensor & Lens

Jump to...
  • Video Sensor

    12x: 1/2.5", UHD Sony CMOS sensor, effective pixels: 8.51M
    20x and 30x: 1/1.8", Sony CMOS sensor, effective pixels: 8.42M

  • Lens

    12x: f = 4.4mm - 52.8mm, F1.8 - F2.6
    20x: f = 6.25mm - 125mm, F1.58 - F3.95
    30x: f = 7.1mm - 210mm, F1.61 - F5.19

  • Lens (35mm Equivalencies)

    12x: 25mm - 299mm, F1.8 - F2.6
    20x: 31mm - 589mm, F1.58 - F3.95
    30x: 32mm - 825mm, F1.61 - F5.19

  • Resolution and Frame Rate

    HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
    SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94

  • Digital Zoom

    Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)

  • Field of View

    12x: Horizontal: 6.9 Degree (tele) - 72.5 Degree (wide), Vertical: 3.9 Degree (tele) - 44.8 Degree (wide)
    20x: Horizontal: 3.5 Degree (tele) - 60.7 Degree (wide), Vertical: 1.9 Degree (tele) - 34.1 Degree (wide)
    30x: Horizontal: 2.5 Degree (tele) - 59.2 Degree (wide), Vertical: 1.4 Degree (tele) - 34.6 Degree (wide)

  • Min. Lux

    0.5 Lux @ (F1.8, AGC ON)

  • Shutter

    1/30s - 1/10000s

Pan/Tilt Movement

Jump to...
  • Pan Speed

    1.7 Degree - 100 Degree /s

  • Tilt Movement

    +90 Degree to -30

  • Tilt Speed

    1.7 Degree - 69.9 Degree

  • Presets

    255 Presets

  • Video Tracking

    Supported

  • Image Flip, Mirror and Freeze

    Supported

Power Options

Jump to...
  • Power Supply

    DC 12V / PoE+ (802.3at)

  • Input Power

    18W (Max)

Rear Board Connectors

Jump to...
  • HD Video Output

    1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
    1x HDMI: version 2.0
    1x USB 2.0: type A
    1x 3G-SDI: BNC type, 800mVP-p, 75 Ohm, Along to SMPTE 424M standard

  • Audio Interface

    1x 3.5mm Line level Input

  • Communication Interface

    1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P

  • Power Jack

    JEITA type (DC IN 12V)

Physical

Jump to...
  • Available Colors

    White, Gray

  • Material

    Aluminum, Plastic

  • Working Environment

    Indoor

  • Operating Temperature

    14 Degree F - 104 Degree F (-10 Degree C to 40 Degree C)

  • Storage Temperature

    -40 Degree F - 140 Degree F (-40 Degree C to 60 Degree C)

  • Dimensions (W x D x H)

    12x and 20x: 5.57 x 5.94 x 7.91 (168.4 x 141.5 x 164.5mm)
    30x: 6.69 x 7.12 x 8.98" (170 x 181 x 228mm)

  • Weight

    12x and 20x: 3.25 lbs (1.47kg)
    30x: 4.41 lbs (2kg)

  • UPC Code

    840170500029

About PTZOptics Move 4K

A New Standard for PTZ Cameras
The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Designed with the Future in Mind
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities - no need to run software on another computer - freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Pan, Tilt, Zoom, Track.
Control your production from behind the scenes - or right in front of them. With the Move 4K's unique Presenter Lock technology, the camera can lock onto a specific person from up to 300 feet away, even while other people are in frame. Plus, this built-in auto-tracking feature allows users to seamlessly switch between on-stage presenters with the simple click of a button.

In addition to the Move 4K's auto-tracking features, users also have access to PTZOptics' latest Web UI - updated to provide everything you need in one simple menu. Nearly every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Discreet Mounting Options
Mount your PTZOptics Move 4K camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera's orientation and saves time on installation and setup.

• Wall Mounts
• Ceiling Mounts
• Pole Mounts
• Outdoor Enclosures

Take Control Your Way
Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster - or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.

Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:

• Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
• Control apps for desktop and mobile devices
• Plugins and integrations for popular platforms, including OBS and Twitch
• Camera configuration and management tools
• Support and testing utilities
• And more!

PTZOptics Move 4K Features

  • Built-In Auto-Tracking
  • Advanced White Balance Modes
  • Wide Dynamic Range
  • Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
  • 3D Noise Reduction
  • SRT Support
  • Up to 4K Resolution @ 60fps
  • Blackmagic Switcher Integration
  • Broadcast Frame Rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94

Key Features

  • Capture stunning, detailed visuals with the PTZOptics 4K UHD video camera for professional quality.
  • Experience smooth, precise control with pan, tilt, and zoom functions for versatile video capture.
  • Streamline your setup using PoE+ for both power and network connectivity, simplifying integration.
  • Ensure clear audio with the 3.5mm line-level input, enhancing your video presentations and streams.
  • Use auto-tracking to keep subjects in frame, perfect for lectures or dynamic presentations.
  • Connect via HDMI, SDI, USB, or IP for flexible integration in diverse video production workflows.

What's in the box:

  • PTZOptics Move 4K SDI/HDMI/USB/IP/NDI|HX Indoor PTZ Camera with Auto-Tracking and Tally Light
  • IR Remote Control
  • 12 VDC Power Adapter
  • USB-A to USB-A Cable
  • RS-232 Cable
  • 2x AA Battery
  • PTZOptics 5 Year Limited Warranty
