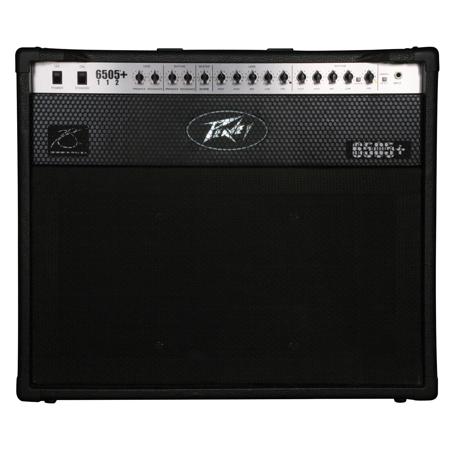

Peavey 6505 Plus 112 Combo Guitar Amplifier, 1 Ohms Input Impedance

SKU: PV03588440

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Peavey 6505 Plus Specifications

  • Input

    Impedance: 1Ohms
    Nominal Sensitivity (Rhythm): -32.8dBV, 23.0 m (rms)
    Nominal Sensitivity (Lead): -63.5dBV, 667 uVrms
    Crunch Boost: Increased gain and altered response for very brown voicing (clean channel only)

  • Equalization

    Custom Low, Mid & High EQ (both channels)

  • Effects

    Return:
    Load Impedance: 22 kOhms or greater
    Nominal Output Level: -3.0 dBV, 0.7 Vrms

  • Interface

    MSDI (Microphone Simulated Direct Interface)
    Load Impedance: 6 kOhms or greater
    Nominal Output Level: -29.1 dBV, 35.0 Vrms

  • Other

    Using Remote Footswitch (Sold Separately): Special 2-button unit with LED indicators (Peavey 00592720) for channel selection (Channel) and remote activation of the Crunch boost (BOOST).

  • Settings

    Preamp controls set at 5 (Crunch out)
    Post Gains set at 10
    Reverb, Resonance & Presence all set at 0

  • Rated Power

    60 Wrms into 4, 8 or 16 Ohms (selectable)

  • Tube

    Complement: 2 x 6L6GC, 5 x 12AX7/ECC83

  • Dimensions (H x W x D)

    22.3 x 25.5 x 11.2" / 566.42 x 647.70 x 284.48mm

  • Weight

    64.2lbs / 29.12kg

  • UPC Code

    0014367153316

About Peavey 6505 Plus

After forging the sound of aggression for more than 15 years, Peavey is making its highly respected, high-gain 6505 Series amplifier available for the first time in a 1x12 combo-amp configuration. The Peavey 6505 amplifier used by metal stars Trivium, Machine Head, Bullet For My Valentine and many more will now be available in a 60W combo with two channels and an extensive feature set. The new 6505 Plus 112 combo harnesses the full gain and legendary tone of the Peavey 6505 Series, which since 1991 has defined the sounds of extreme rock guitar, into a format that is equally suited to clubs, rehearsal rooms and studios. Five select 12Ax7 preamp tubes and a pair of 6L6GC power-amp tubes provide the tonal foundation for the 6505 Plus 112 combo, while patented circuitry such as Peavey's Resonance control tweak its legendary tone. Both the Lead and Rhythm channels feature independent three-band EQ, pre/post gain controls and Presence and Resonance adjustment. The Rhythm channel also includes a foot switchable Crunch boost. The 6505 Plus 112 combo also features the Peavey MSDI microphone-simulated direct interface, which eliminates the need for miking by allowing users to route the amp's signal directly to a recording device or mixing console. Additional features include three-spring reverb, effects loop and external speaker outputs, plus a 12" Sheffield loudspeaker in a sealed-back cabinet that offers maximum resonance and sound projection.

Peavey 6505 Plus Features

  • 60 watts (RMS)
  • Footswitchable lead/rhythm channel select
  • Effects loop
  • Separate 3-band EQ on each channel
  • Separate Resonance and Presence controls for each channel
  • Two 6L6GC power amp tubes
  • Lead channel: pre-/post-gain controls
  • Genuine 3-spring reverb
  • One 12" Sheffield speaker
  • Top handle
  • Five 12AX7 preamp tubes
  • External speaker outputs
  • 16, 8 or 4 ohms (switchable)
  • Rhythm channel: pre-/post-gain, footswitchable Crunch boost
  • Integrated MSDI microphone-simulated XLR direct interface

Key Features

  • Footswitchable lead/rhythm channel select
  • Separate 3-band EQ on each channel
  • Separate Resonance and Presence controls for each channel
  • Two 6L6GC power amp tubes
  • Genuine 3-spring reverb
  • One 12" Sheffield speaker

What's in the box:

  • Peavey 6505 Plus 112 Combo Guitar Amplifier
  • Peavey 5 Year Warranty (2 Year + 3 Year with Registration )
