Peavey SP 4P Specifications

Loudspeaker

Loudspeaker

Jump to...
  • Frequency response

    57Hz to 17kHz

  • Low Frequency Limit (-3dB point)

    57Hz

  • Usable low frequency limit (-10dB point)

    50Hz

  • Internal power amplifiers

    At 120VAC line:
    Woofer - 1000 watts peak available power
    Continuous Power: 500 watts at less than 1% distortion
    Tweeter - 500 watts peak available power
    Continuous Power: 250 watts at less than 1% distortion

  • Nominal Sensitivity

    100dB (average) (1W at 1M, swept sine input in anechoic environment)

  • Maximum sound pressure level

    131dB music peak

  • Nominal radiation angles

    100 deg. horizontal by 50 deg. vertical, The vertical main polar lobe is angled down 10 degrees with respect to straight ahead, the vertical coverage angles being +15 - 35 deg.

  • Transducer complement

    Low Frequency Section: 2X 15" woofer, vented Black Widow 1508-8 SPS
    High Frequency Section: 1 X 1.0" exit, 50 mm voice coil RX22CT compression driver on asymmetrical Quadratic Throat CD Horn

  • Box Tuning Frequency

    65Hz

  • Electroacoustic crossover frequency

    1.82kHz

  • Crossover Slopes

    24 dB/octave (fourth order) low pass, 24dB/octave (fourth order) high pass and driver EQ

  • Input Connections

    Two combo female XLR/ 1/4" phone jack providing balanced or unbalanced operation and one 3.5mm stereo media jack

  • Output Connections

    Two XLR Outputs, one Full Range Thru, electrically buffered with selectable option of Channel A input only, or Ch. A and Ch. B mixed. The other XLR output is a High-Pass Output

  • Controls

    Ch. 1 and Ch. 2 Gain control knob. Ch. 1 and Ch. 2 Mic/Line gain select pushbutton

  • Status Indicators

    Blue Illuminated LED on the front baffle indicates power On, illumination can be turned Off by user

  • Display

    Rear panel LCD screen in Input Level mode, shows DDT activation by flashing "DDT" on the LCD screen, right hand side. Signal level indicated by bar graph coming from left hand side of LCD

  • Electronic Crossover

    DSP based, with LCD display and Rotary Encoder Knob for selection of EQ presets and Graphic EQ. Crossover Frequency Set to 1.8 kHz. Low Pass slope: 24 dB/octave, High Pass slope: 24 dB/octave

  • DSP Section

    Latency: Approx. 2.7 msec
    Sampling frequency: 96 kHz
    Bit Depth: 24 bits for ADC/DAC, 32 bits for DSP calculations

  • Enclosure Materials and Finish

    Plywood with a textured black polyurethane finish. Full length black powder coated metal grille

  • Mounting

    10) M8 Threaded Mounting Suspension Points (2 top, 2 bottom and 2 each side & 1 each top rear and bottom rear). Four large rubber feet on bottom for floor use

Electronics and Amplifier

Jump to...
  • Electronic input impedance (nominal)

    Balanced inputs: 10kOhms line level sensitivity selected
    Unbalanced input: 5kOhms, line level sensitivity selected

  • Mic switch sensitivity Increase

    26dB

  • Infrasonic Filter Protection

    36dB/octave roll-of

  • Nominal amplifier frequency response

    +0, -1 dB from 10 Hz to 30 kHz

  • Hum and Noise

    Greater than 90dB below rated power

  • DDT Dynamic Range

    Greater than 14dB

  • THD and IM

    Typically less than 0.1 %

  • Damping factor

    Greater than 50 at 1000Hz, 4Ohms

  • Power Requirements

    Nominal 200 watts, 120 VAC, 60 Hz

  • Fuse Type

    For 120 VAC USE: International fuse classification T10AH 250V. In the USA, types GDC, GMC, 215, 218 and 477 cartridge-style 5 x 20 mm size time-delay fuses with a 10 amp 250V rating can be used
    For 220-240VAC USE: International fuse classification T5AH 250V . This is a cartridge style 5 x 20 mm size time-delay fuse with a 5 amp 250V rating

General

Jump to...
  • Dimensions (HxWxD)

    Front: 1105 x 426 x 428mm (43.50 x 16.77 x 16.85")
    Rear: 1105 x 294 x 428mm (43.50 x 11.57 x 16.85")

  • Weight

    93 lbs (42.18kg)

  • UPC Code

    0014367650020

About Peavey SP 4P

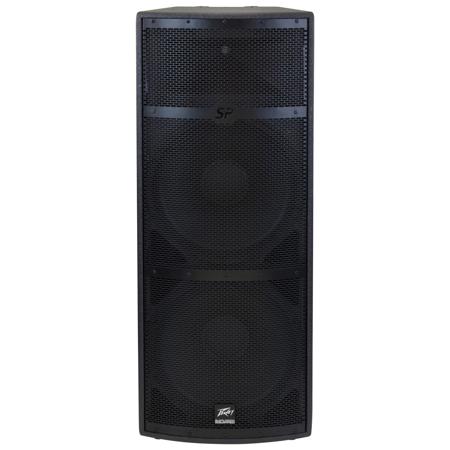

The Peavey SP 4P is a powered, bi-amplified, two-way speaker system engineered to provide very high levels of performance in a compact powered loudspeaker. This quasi-three-way powered system is comprised of a 1000W peak switching power amplifier driving a pair of 15" Black Widow BWX series woofers, now with a long throw voice coil. The 2" RX22CT titanium diaphragm compression driver is driven by a 500W peak switching power amplifier and is coupled to a low coloration waveguide with a coverage pattern of 100 deg. horizontal by 50 deg. vertical.

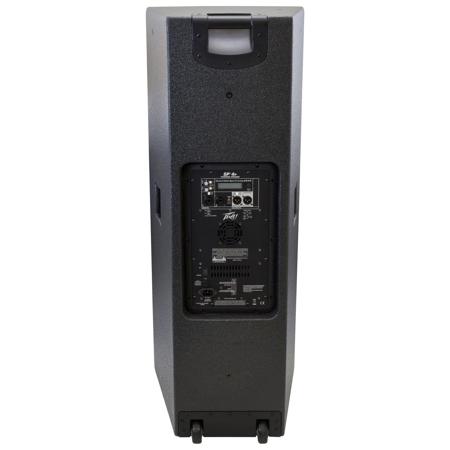

The SP 4P is capable of up to 131 dB peak SPL. The enclosure is constructed of plywood augmented with internal braces, covered with a textured black painted finish. The shape is a trapezoidal form, with a full-length coated perforated steel grille, to offer an attractive yet durable powered speaker system. A pair of four-way inset handles, one on each side and a set of casters on the bottom rear edge and a top rear handle provide convenient transport and handling. Multiple fly points are provided to allow overhead rigging. The cabinet and grille are black.

Two independent mixed input channels each offer a balanced input to the preamp/EQ electronics and a level control. Each channel has one combo female XLR and 1/4" TRS phone jack. It is switchable between mic-level and line-level sensitivity. Channel 2 has a 3.5 mm media jack added. A line out section has male XLR connectors. The Thru outputs allow linking of additional speaker systems or feed of the signal to a powered subwoofer, etc.

The power amplifiers providing the bi-amplification are low-distortion switching units providing 1000W peak available power into the nominal 4Ohms load of the woofer and a 500W peak available power into the nominal 8Ohms load of the tweeter. The power supply for both amps is a switch mode type for low weight and high efficiency. Both amplifiers feature our DDT compression, which virtually eliminates audible power amplifier clipping. Cooling is via forced air circulation.

The combination of the Black Widow BWX woofer with the RX22CT tweeter and DSP crossover and EQ provide a clarity and impact beyond conventional powered enclosures. The switching power amps and switch-mode power supply, along with the professional grade speaker components, provide this high level of technological sophistication at a very light weight, while at a very reasonable cost.

Peavey SP 4P Features

  • Bi-amplified Powered Speaker System
  • EQ Presets Available Via Rotary Encoder Pushbutton Select
  • 9-band EQ and Other System Settings Accessed Via Rotary Encoder Pushbutton Select
  • Dynamic Bass Boost Function
  • Up to 150ms of Architectural Delay
  • DSP Based Crossover, Limiting and EQ
  • Two Independent Mixed Input Channels, With Gain Control and Mic/line Gain Switch
  • Each Channel Features A Combo Jack With 1/4" TRS & Female XLR Balanced Input
  • Input 2 Has A 3.5mm (1/8") Stereo Media Input Jack
  • Output Connectors are Male XLR
  • Four-way Inset Handles On Each Side
  • Peak Spl Up to 131dB With Music!
  • Tilt-back Casters And Top Rear Back Handle
  • Peavey RX 22CT Compression Driver Tweeter On A Quadratic Throat Waveguide
  • Full Length Perforated Steel Grille
  • Two 15" Black Widow Bwx Woofers
  • Rugged Plywood Enclosure, With Bracing And Dado Construction
  • Both Power Amps Have DDT Compression
  • Reduced Weight - Only 93 Pounds!
  • 1000 Watts Peak Available Woofer Power, 500 Watts Peak Available Tweeter Power
  • Multiple Fly Points
  • Fan Cooled For Maximum Reliability

What's in the box:

  • Peavey SP 4P Bi-Amp Two-Way Loudspeaker
  • Peavey 1 Year Limited Warranty
