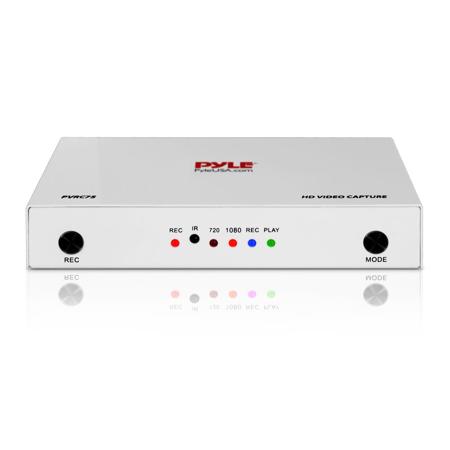

Pyle PVRC75 Full HD Gaming Video Capture Card with Playback Function
See all Pyle items

Pyle PVRC75 Full HD Gaming Video Capture Card with Playback Function

SKU: PYPVRC75

This item is no longer available.

Recommended Alternatives

Pyle PHDRCB48.5: Picture 1 regular
Pyle PHDRCB48.5 Live Streaming USB3.0 HDMI Video Recorder with HDMI Pass through
$114.56
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Pyle PVRC75 Specifications

Connection

Connection

Jump to...

  • Interface

    USB 2.0 Host

  • Video Input

    Digital: HDMI
    Analog: Component Video, Composite Video

  • Audio Input

    Digital: HDMI
    Analog: RCA L/R, 3.5mm Micro Phone In
    Microphone without pass through for HDMI input

  • Video Output

    Digital: HDMI (Pass-through from HDMI or Component or Composite Input)

  • Audio Output

    Digital: HDMI (Pass-through from HDMI or RCA L/R Input)
    Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)

Gaming Consoles Applicable Connection

Jump to...

  • HDMI

    Industry HD camera, HD Medical endoscope, TV, gameplay, etc

  • Component

    TV, gameplay, etc

  • Composite

    Industry camera, Medical endoscope, TV, gameplay, etc

Hardware Extra

Jump to...

  • Codec

    Hardware H.264 encoder

  • User Interface

    Record button, mode switch button
    LED indicator for working status
    Infrared Receiver

Standards

Jump to...

  • Storage Media

    USB Flash Disk, Portable Hard Disk
    Max Capacity: USB / 2T
    The exFAT format is not supported

  • Resolution

    Input / Pass-through:
    720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)

    Capture:
    720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)

    Up scaling is not supported

  • Record Format

    Video: MP4, Audio: AAC Stereo

  • Record Quality

    Max: 18Mbps at 1080P 30fps

  • Record File

    Max: 2GB / Per File, With RTC (Real Time Clock)

  • Record Place

    Max: 140MB / Minute, 8.4GB / Hour

  • Power Supply

    USB DC 5V / 2A

General

Jump to...

  • Dimensions (LxWxH)

    6.5 x 3.9 x 1.1" (165.10 x 99.06 x 27.94mm)

  • Weight

    1.85 lbs (0.84kg)

Other

Jump to...

  • UPC Code

    068888777230

About Pyle PVRC75

• Ability to Record Full HD 1080p Video
• Connects Directly to Your TV / Video Source Device
• Also Used for Video Game Console Stream Recording
• Works with: Xbox 360, Xbox One, PS3, PS4, Wii U and More
• Save Video Recordings Directly to USB Flash (Not Included)
• On-board Hot Button for One-Click Recording
• Snapshot + Real-Time Functions
• Interface: HDMI, AV, Line, Microphone, USB (*YPbPr Support)
• Video Output: Digital: HDMI (Pass-through from HDMI, Component or Composite)
• LED Indicator Lights

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Pyle PVRC75 Full HD Gaming Video Capture Card with Playback Function
  • Component/Composite Video Cable
  • Remote Control
  • Power Adapter
  • Manual
  • Pyle 1 Year Limited Warranty
