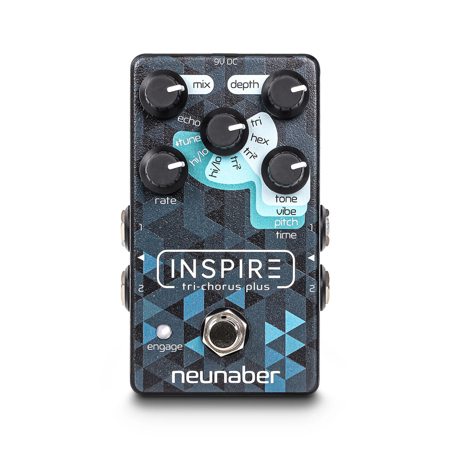

Quilter Labs Neunaber Inspire Tri-Chorus Plus Effects Pedal

SKU: QLTRICHOPLUS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Quilter Labs Inspire Tri-Chorus Plus Specifications

Electrical

Electrical

Jump to...
  • Nominal Input Level

    -10 dBV, Instrument Level

  • Max Input Level

    6.7 dBV

  • Input Impedance

    1 M Ohm (Mono), 2 M Ohm (Stereo)

  • Output Impedance

    500 Ohm (Mono), 1 k Ohm (Stereo)

  • Gain, Enabled vs. Bypass

    0 dB (mix @ 0)

  • Frequency Response

    20 Hz-20 kHz, +0.1 dB, -0.5 dB (Dry Signal or Bypassed)

  • Total Harmonic Distortion

    < 0.002% Typical (Dry Signal or Bypassed, 22 Hz-22 kHz, 1.0 Vrms, 1 kHz)

  • Signal-To-Noise Ratio

    106 dB Mono, 103 dB Stereo (A-Weighted), 22 Hz-22 kHz, mix @ 50%

  • Power Adapter Input

    9-12 V DC, 95 mA

  • Plug

    Center-Negative, 5.5 mm OD x 2.1 mm ID

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Alkaline

  • Battery Type

    9-volt

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (W x L x H)

    2.9 x 4.6 x 2" (73 x 117 x 51mm)

  • Weight

    8.84 oz (251g)

  • UPC Code

    741459704216

About Quilter Labs Inspire Tri-Chorus Plus

If you're seeking to recreate those magically lush, elusive chorus tones heard on countless studio recordings, look no further than the Neunaber Inspire Tri-Chorus Plus Effects Pedal. This innovative and high-quality effects pedal captures eight stunning stereo chorus effects, all built around variations of the advanced tri-chorus algorithm.

The Inspire Tri-Chorus Plus offers a range of effects, from the classic rack chorus effect, Tri, to the ultra-dense Hex, which parallels two tri-choruses. The Tri (Tone) and Tri (Vibe) effects offer a rich, lush sound and a complex combination of tri-chorus and tri-vibrato, respectively. The Hi/Lo (Vibe) and Hi/Lo (Detune) effects provide subtler sounds that blend perfectly with overdrive and heavy distortion. The Tune and Echo effects combine tri-chorus with detune and echo, creating the ultimate rack chorus tone and a classic combo, respectively.

This versatile pedal features an intuitive interface with controls for Effect Select, Mix, Depth, and Rate. The Effect Adjust function allows you to fine-tune the frequency response, vibrato rate, pitch offset, and echo time, ensuring a sound that's tailored to your unique playing style.

The Neunaber Inspire Tri-Chorus Plus Effects Pedal is designed for stereo output, delivering a studio-quality chorus that envelops you in sound. If you prefer to plug into a single amp, Inspire can sum a stereo input to mono with only output 1 connected.

With its low power consumption, the Inspire Tri-Chorus Plus can be powered by a standard 9 V or 12 V pedal power supply, or connected to a 100 mA output on a brick supply.

Experience the richness of eight incredible tri-chorus sounds, all in one durable, user-friendly pedal. Plus, your dry signal remains analog for low noise and zero latency, ensuring a high-quality performance every time.

Quilter Labs Inspire Tri-Chorus Plus Features

  • True bypass
  • Inputs/outputs can be used mono (#1) or stereo (#1 and #2)
  • Analog dry signal for low noise and zero latency
  • Small, pedalboard-friendly footprint
  • Requires standard 9V pedal power supply (not included)
  • Designed and manufactured in California USA

Product Documents

User Manual

Key Features

  • High-quality effects pedal offering eight stereo chorus effects
  • Features advanced tri-chorus algorithm for versatile sound options
  • Includes intuitive controls for Effect Select, Mix, Depth, and Rate
  • Effect Adjust function for fine-tuning frequency response, vibrato rate, pitch offset & echo time
  • Designed for stereo output for studio-quality chorus, with option for mono output
  • Low power consumption, compatible with standard 9 V or 12 V pedal power supply

What's in the box:

  • Quilter Labs Neunaber Inspire Tri-Chorus Plus Effects Pedal
  • User Manual
  • (Power Supply Not Included)
  • Quilter Labs 3 Year Limited Warranty
