Qnap TVS-682 6-Bay High-Performance NAS, Intel Core i3-6100 3.7GHz, 8GB RAM, 2.5"/3.5" Drive Tray, RAID 0/1/5/6/10/5 + Hot Spare, JBOD, QTS 4.2 Embedded Linux

SKU: QNTVS6I38

This item is no longer available.

Overview
Compare
Q&A

Questions & Answers

Reviews about this item

Review Summary

About Qnap TVS-682

The TVS-682 features advanced hardware by adopting 6th Generation Intel 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards and USB 3.1 expansion cards, the TVS-682 also supports smooth 4K 60 fps video transfer and display, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-682 presents an ideal choice for a complete business-ready storage solution.

• Built-in M.2 SATA 6Gb/s slots & 2.5" SSD slots
• Qtier technology and SSD cache enable 24/7 optimized storage efficiency
• The Network & Virtual Switch app assists network traffic distribution and re-routes dedicated bandwidth for diverse applications
• Triple HDMI output (including one HDMI 2.0) for smooth 4K video playback
• Scalable design with economical QNAP storage expansion enclosures
• Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-682's storage capacity
• Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications and storage for virtualization
• Additional SMB-Ready Features
• 6th Generation Intel processors, extraordinary performance
• M.2 SATA 6Gb/s SSD & 2.5" SSD cache
• Three HDMI outputs - switch between HD Station and Linux desktop
• Seamless capacity expansion via SAS or USB interface
• Use NAS to expand NAS capacity with Virtual JBOD
• Use your TVS-682 as a PC
• Well-rounded backup & disaster recovery solutions
• Cross-device file synchronization
• Comprehensive surveillance solution providing 24/7 security

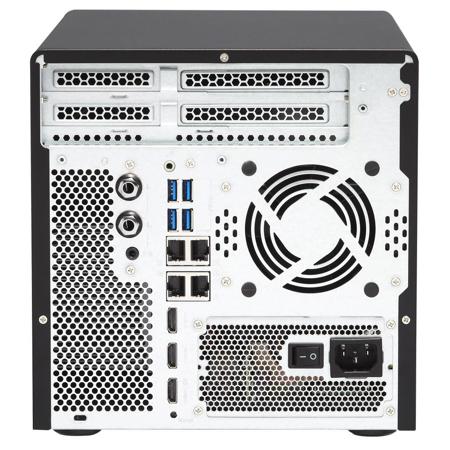

Advanced Hardware for Greater Efficiency
High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios are three distinctive cornerstones for achieving optimum performance.

• 2x 2.5" SSD slots
• Tool-less HDD tray and installation
• 2x built-in M.2 SSD slots
• DDR4 2133 MHz memory
• 6th Generation Intel Core Processor
• 2x PCIe Gen.3 expansion slots
• Compartmentalized smart cooling
• 4x Gigabit Ethernet ports
• 3x HDMI outputs
• 3.5mm audio jack
• 2x built-in speakers

Perfect Storage Trio: Tiered Storage, Application-Based Partitioning & Network Traffic Distribution
The advanced hardware design of TVS-682 can facilitate optimized storage deployment based on different usage scenarios

Tiered Storage
QNAP's Qtier Technology empowers the TVS-682 with Auto Tiering that helps continuously optimize storage efficiency across PCIe NVMe SSD, M.2 SSD, SSD and SATA drives. With Auto Tiering, the TVS-682 can automatically move frequently-used "hot" data to high-performance storage tiers and less-accessed "cold" data to lower-cost, higher-capacity drives, making the TVS-682 an extremely efficient shared resource. Businesses will no longer have to invest heavily in expensive Flash technology, but can still enjoy exceptional application performance and cost efficiency from Auto Tiering with the TVS-682.

Application-based Partitioning
Every application requires different performance. For example, Surveillance Station requires higher-priority access to storage to ensure the integrity of recordings, while normal transmission speeds are sufficient for file sharing. However, when multiple applications are running on the same storage media, the required throughput level cannot be guaranteed as the storage media is busy handling I/O requests from all of them. The TVS-682 supports three different types of storage media: M.2, SSD and SATA hard drives and they can be configured as independent partitions for different applications, ensuring a sufficient throughput level for every application.

Network Traffic Distribution
With four 1 Gigabit Ethernet ports, the TVS-682 allows applications to use dedicated interfaces to meet network traffic distribution requirements. Network interfaces can also be easily managed with the Network & Virtual Switch app, which enables optimized network resources for TVS-682, virtual machines and containerized apps. No matter if they are business organizations or individual users, they can effortlessly manage network connections by using the Network & Virtual Switch.

QTS - Simple and Powerful
The intuitive QTS features a modern flat design to streamline loading times and its intelligent desktop allows you to find desired functions quickly, monitor important system information on a real-time basis and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency.

QRM+: Centralized Remote Server Management Solution
QRM+ is QNAP's Centralized Remote Server Management solution designed for IT teams. It provides a web-based solution - accessible from any web browser - to discover, map, monitor and manage all of the critical computing devices on the network such as servers, PCs, embedded PCs and thin clients from a single-point. Supporting IPMI 1.5 and 2.0, QRM+ provides remote KVM (Keyboard, Video, Mouse) for certain IPMI devices and supports tracking every action using KVM recording and playback. With centralized management by QRM+, IT infrastructure and device security is enhanced and troubleshooting & network resource performance analysis is greatly simplified.

QmailAgent: A Mailroom Center for your Private Cloud
QmailAgent is an online email client that helps you manage multiple email accounts, allowing you to access all of your emails and to easily switch between different accounts. It provides complete functionality for composing, reading and organizing emails. You can even attach files, photos and documents from the TVS-682 when composing emails. Qmail also allows iOS and Android users to quickly check multiple email accounts with mobile devices and to browse & send emails using the QmailAgent on their TVS-682.

Storage for Hosting Virtual Machines and Containerized Applications
Virtualization Station allows you to host virtual machines (VM) on the TVS-682 and access them via a web browser or VNC. Virtualization Station supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot and Device Management for centrally managing VM. Virtualization Station allows the TVS-682 and VMs to share the same LAN port. No longer constrained by physical network performance, high-speed virtual switches greatly increases data transfer between VMs as well as between VMs and NAS through the internal interface. An AMD Radeon R7 Series graphics card can also be installed into the TVS-682's PCIe slot for GPU passthrough to virtual machines, greatly boosting the computational and rendering power of virtualized applications.

Storage for Comprehensive Virtualization Applications
As an iSCSI/IP-SAN storage solution, the TVS-682 supports VMware and Citrix and is compatible with Microsoft Hyper-V and Windows Server 2012 R2, benefiting flexible deployment and management in virtualization environments. The TVS-682 supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications.

Comprehensive Security
QNAP's full NAS encryption by volume-based technology effectively ensures data security by encrypting all of the files stored in the default shared folders on the TVS-682. Besides AES 256-bit encryption for both volumes and shared folders, the TVS-682 also provides numerous security options, such as encrypted access, IP blocking, 2-step verification and more.

Install-on-demand Apps to Extend NAS Functionality
The TVS-682 has a built-in App Center that provides over 100 apps, including tools for backup/sync, business, content management, communications, downloading, entertainment and much more. You can freely install apps as needed to expand your TVS-682's functionality.

What's in the box:

  • Qnap TVS-682 6-Bay High-Performance NAS
  • 4x Ethernet Cable
  • Power Cord
  • 2x Screws M.2 Installation
  • 2x Bolts
  • 24x Flat Head Screw (for 2.5" HDD)
  • 2x M.2 SSD Heatsink
  • RM-IR002 IR Remote Control
  • Quick Installation Guide
  • Qnap 2 Year Limited Warranty
