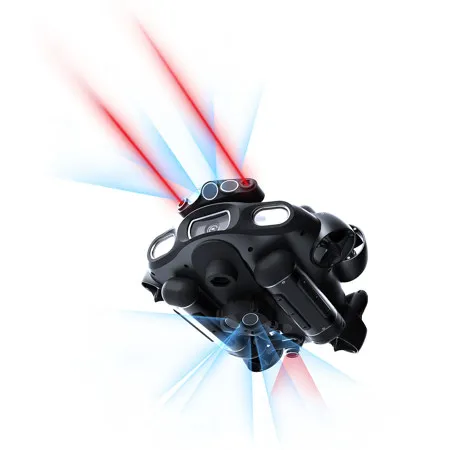

Qysea FIFISH E-MASTER NAVI Underwater ROV Kit

Inspection - Measurement - Survey
The FIFISH E-MASTER is a revolutionary industrial AI underwater robot, engineered for high-precision measurements, inspections, and surveys in complex marine environments. With advanced sensors and sonars, it ensures unmatched accuracy and reliability. Its modular design allows for quick and efficient component changes, including accessory swaps and power replacements.

Designed for Masters

Industries
• Underwater Construction & Inspection
• Shipping & Maritime
• Tank & Pipeline Inspections
• Offshore Energy

Professions
• Surveyors & Inspectors
• Engineers & Technicians
• Environmental Scientists
• Marine Researchers

Requirements
• Reliable in inspections strong currents
• Easy-to-repair tool for extended inspections
• Hassle-free subsea measuring, surveying, navigation capability
• Daily/ weekly monitoring solution

Key Industry Challenges - Traditional Underwater Measurement

High Costs
Traditional engineering divers have high operational costs and are limited by the number of times they can go underwater at great depths. Traditional large underwater robots are costly to operate and difficult to deploy

High Risk
Complex water conditions, including strong currents and deepwater pressure, pose significant threats to the safety of divers.

Depth Limitations
Engineering divers are constrained by water depth conditions, limiting the number of deep dives they can make each day.

Low Precision
Traditional manual underwater measurements are prone to errors due to environmental influences.

High-Precision Technologies

Q-DVL - Dynamic & Steady Hovering
The E-MASTER features forward and downward Q-DVLs for stable hovering and strong omnidirectional flow resistance of up to 3 knots. It remains stable in turbulent conditions and supports functions like collision avoidance, distance measurement, and altitude maintenance. The system automatically prevents collisions with obstacles, ensuring safety during underwater operations while maintaining distance from objects and height from the seabed.

U-INS Plus - Subsea Automatic Navigation
The U-INS Plus system delivers advanced autonomous navigation for the FIFISH E-MASTER by utilizing deep learning and sensor data to provide precise position, velocity, heading, and attitude information. It supports automated surface-adaptive path planning, intuitive one-click return, and real-time motion tracking with visual reference of historical paths. Users benefit from efficient, self-guided movement and detailed location and trajectory display, including custom maps and POI recording.

QY-MT - Real-time & Offline Smart Measurement
The QY-MT system offers advanced AI-powered underwater measurement capabilities. Utilizing the Forward Q-DVL and laser, along with proprietary AI algorithms, operators can analyze and measure underwater objects, fractures, and damage with 99.7% accuracy. The system provides users with dynamic, adaptive, and precise multi-angled measurements, real-time data visualization, and customizable displays for comprehensive and non-destructive assessments.

• Dynamic, Adaptive & Precise: Perform Multi-angled/shaped Measurements with 99.7% Accuracy
• Simultaneous & Customizable: Multi-measurements, personalized display
• Augmented Reality Enabled: Customizable Real-time Virtual Ruler

QY-BT - 2D & 3D Seafloor Mapping
The integrated Q-DVL and Echosounder on the E-MASTER enables automated, precise underwater data collection. Users can survey seabeds, riverbeds, and reservoirs, and create customizable 2D/3D topographic maps, estimate reservoir capacities, and generate data reports with a single click. The system streamlines the mapping process and allows for efficient data collection, customizable map outputs, and seamless export and upload of data.

• Automated Data Collection: Collect Depth Data with Automation
• Streamlined Mapping Process: Export & Upload Data with Ease
• Customizable 2D/3D Maps: Control Appearance of Map Outputs

Powerful Ring-Wing Propulsion
At its core, the FIFISH E-MASTER features an innovative ring-wing motor system, achieving speeds of 3 knots and demonstrating strong resistance in challenging waters. It incorporates six high-performance metal wing propellers with an expanded blade area, resulting in a 30% power increase while ensuring remarkable reliability, wear resistance, and corrosion protection.

AI Diver Tracking
QYSEA's brand-new self-developed underwater AI technology - AI Diver Tracking Function, integrates QYSEA's proprietary AI underwater image filtering algorithm. Through QYSEA's independently developed underwater visual recognition technology, it identifies divers' movement poses in the footage, performs real-time automatic computation and analysis, achieving precise underwater visual locking and tracking! Serving as a safeguard for divers' lives and providing real-time monitoring of underwater situations from shore, it is indeed a reliable diving companion.

AI Dehazing Algorithms
Enhance image clarity and improve decision-making efficiency for underwater operations by identifying and filtering out the snowflake effects caused by suspended underwater particles.

Expansive View & Focus
Featuring an innovative ultra-wide-angle camera lens, FIFISH E-MASTER provides a 176 Degree super-wide surface view and a 146 Degree underwater panoramic perspective, enabling operators to capture the entire underwater scene. The E-MASTER is equipped with a 1/1.8-inch CMOS sensor for 4K UHD filming and RAW format image capture.

Vivid Lighting System
Boasting multi-lamp LED lights, FIFISH E-MASTER provides up to 10,000 lumens of brightness and a 160 Degree beam angle with adjustable intensity across three levels.

Macro Focus Precision
Supporting a 10cm extreme close-up focus underwater, FIFISH E-MASTER ensures precise imaging even in murky waters. Its automatic focusing capabilities allow for close-range observation, capturing accurate images and preserving every detail.

Fluid Modular Design
The E-MASTER's modular architecture integrates essential components of the robot - including the motor, imaging, lighting, and battery - enabling rapid assembly, disassembly, and precise troubleshooting. Battery and accessory removal is achieved within seconds, while spare part replacement can be completed within 5 minutes, delivering a major boost to operational efficiency.

Enhanced Multi-Port Expansion
Through a meticulous internal redesign, FIFISH E-MASTER is equipped with dual load interfaces on both the top and bottom of the body. Utilizing professional expansion docks (optional), it can accommodate up to 6 operational tools simultaneously.

Swappable Dual Power System
FIFISH E-MASTER features an upgraded circuit design with a dual battery system, employing advanced hot- swappable technology. This enables seamless alternating battery replacement without powering down or restarting, instantly revitalizing FIFISH E-MASTER to full power.

Smart & Portable Charging Station (Optional)
FIFISH E-MASTER comes with the its portable smart charging platform, Q-Energy Station, with two batteries that provide 150 minutes of standard operational duration. In addition, Leverage rapid charging, with just 50 minutes to reach 90% capacity, ensuring swift charging without concerns about battery life during extended underwater missions.
