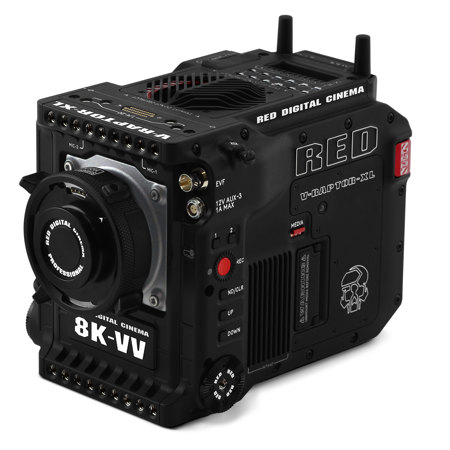

RED Digital Cinema V-RAPTOR XL 8K VV Cinema Camera, V-Lock Mount

SKU: RD71346 MFR: 710-0346
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the V-RAPTOR XL's 8K VV VistaVision CMOS sensor.
  • Achieve cinematic shots with 17+ stops of dynamic range for superior image quality.
  • Record up to 8K at 120fps, perfect for high-resolution slow-motion video projects.
  • Utilize the integrated dual V-Lock Mount for reliable, extended power during shoots.
  • Enjoy flexible lens options with the interchangeable PL Mount, adaptable to your needs.
  • ProRes recording up to 4K ensures efficient workflows and high-quality video output.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR XL Specifications

Sensor
  • Sensor

    V-RAPTOR 8K VV 35.4 Megapixel CMOS

  • Effective Pixels

    8192 (h) x 4320 (v)

  • Sensor Size

    40.96 x 21.60mm (Diagonal: 46.31mm)

  • Dynamic Range

    17+ stops

Key Features

Jump to...
  • Built-In ND

    Motorized clear filter and precision controlled electronic ND filter
    Electronic ND minimum density 2 stops, maximum density 7 stops
    Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop

  • Mount Type

    Interchangeable lens mount, included V-RAPTOR XL PL Mount (shimmable)
    Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control

  • Battery Mount Type

    Integrated Dual Voltage 14/26V V-Lock Mount battery interface

Recording

Jump to...
  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • Redcode Raw Max Frame Rates

    120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
    140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
    160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
    192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)

  • Redcode Raw Max Frame Rates (Contd.)

    240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
    320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
    480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

  • Playback Frame Rates (Project Time Base)

    23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

  • Best Available Redcode Settings

    REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
    REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
    REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
    REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
    REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
    REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps

  • Redcode Raw Acquisition Formats

    8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
    7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
    6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
    5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
    4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
    3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
    2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1

  • Apple Prores

    Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096x2160)
    Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)

Additional Features

Jump to...
  • Color Management

    Image Processing Pipeline (IPP2)
    Supports 33x33x33 3D LUTs
    Supports import of CDLs

  • Audio

    Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz

  • Autofocus

    Contrast and Phase Detect

  • Remote Control

    Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
    Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
    Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload

  • Power Outputs

    Regulated 12 V Outputs
    2x P-TAP Connectors (3AMP Combined)
    1x Rear 2-Pin 0B (3 AMP)
    1x Rear 2-Pin 0B (1.5 AMP)
    1x Front 2-Pin 0B (1 AMP)
    Regulated 24 V Connectors
    2x Front 3-Pin Fischer (3 AMP Combined)

  • Monitor Outputs

    Proprietary top accessory port for monitoring and control
    3x 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes (SDI 1/2/3)
    1x 3G-SDI with 3G-SDI and 1.5G-SDI modes (EVF)
    12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
    6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
    3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
    1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    Dsmc3 Red Touch 7.0" LCD
    IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet
    Integrated 2.4" LCD for camera control (no preview video)

  • Camera Sync Options

    Tri-Level Genlock through BNC
    Linear Timecode (LTC) through 5-Pin 0B
    PTP through 9-Pin 0B GIG-E
    Wireless Genlock and Timecode through Integrated Ambient Communication Network (ACN)

Software

Jump to...
  • Red Control

    Access full camera controls and live preview from iOS or Android devices.
    Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C or Ethernet

General

Jump to...
  • Construction

    Aluminum Alloy

  • DC Power Input

    19.5-34 V via 4-pin 2B DC-IN

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Storage Relative Humidity

    0% to 85% non-condensing

Battery

Jump to...
  • Battery Info

    Required, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Weight

    With PL Mount, V-Lock: 7.99 lbs (3.62kg)

  • UPC Code

    810016942092

79 Accessories for RED Digital Cinema V-RAPTOR XL 8K VV Cinema Camera, V-Lock Mount

  • All Accessories (79)
  • Lenses (14)
  • Digital Cinema Lenses (9)
  • Monitor & Recorder (3)
  • Memory & Storage (9)
  • Batteries & Power Supply (13)
  • Grips & Handles (2)
  • Adapters & Mounts (1)
  • Card Readers (2)
  • Expansion Unit (1)
  • Microphones & Audio (3)
  • Cables & Adapters (1)
  • Tripods & Monopods (5)
  • Headphones (5)
  • Camera Cages and Rigs (1)
  • Recording Monitor (1)
  • Viewfinder Accessories (2)
  • Viewfinders (1)
  • Flash & Lighting (6)

About RED Digital Cinema V-RAPTOR XL

Bring cinematic brilliance to your professional film productions with the RED DIGITAL CINEMA V-RAPTOR XL 8K VV Cinema Camera, featuring a V-Lock Mount for secure battery attachment and power management. This compact powerhouse is engineered for speed and adaptability, making it an ideal choice for a wide range of shooting environments.

The V-RAPTOR XL 8K VV boasts a robust interface that includes three 12G-SDI outputs, providing high-bandwidth digital video signal transfer for uncompromised image quality. The camera also offers versatile power options with both 12V and 24V voltage outputs, ensuring compatibility with various accessories and facilitating a seamless production workflow.

As the advanced successor to the V-RAPTOR, this camera expands your creative possibilities with multi-format recording capabilities. Capture stunningly detailed footage in 8K VV for large format productions or switch to 6K Super35 to take advantage of a different aesthetic and lens choices. The flexibility of an interchangeable lens mount further enhances the camera's utility, allowing cinematographers to select the perfect glass for any scenario.

Incorporated internal ND filters streamline the shooting process, enabling quick adjustments to exposure without the need for external filter changes. This feature is particularly valuable in dynamic lighting conditions, where time and precision are of the essence.

Crafted for filmmakers who demand excellence and versatility, the RED DIGITAL CINEMA V-RAPTOR XL 8K VV Cinema Camera with V-Lock Mount stands as a formidable tool in the pursuit of visual storytelling at its finest.

RED Digital Cinema V-RAPTOR XL Features

  • Multi-Format 8K VV + 6K S35 Sensor
  • Purpose-Built Unified Body
  • Industry Standard Integrated I/O Array
  • Robust Professional Interchangeable Lens Mount
  • All-New Integrated Electronic ND System
  • Powerful & Versatile 12V and 24V Outputs
  • Remote-Production Ready Wireless Timecode & Genlock
  • V-Lock Mount Power

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the V-RAPTOR XL's 8K VV VistaVision CMOS sensor.
  • Achieve cinematic shots with 17+ stops of dynamic range for superior image quality.
  • Record up to 8K at 120fps, perfect for high-resolution slow-motion video projects.
  • Utilize the integrated dual V-Lock Mount for reliable, extended power during shoots.
  • Enjoy flexible lens options with the interchangeable PL Mount, adaptable to your needs.
  • ProRes recording up to 4K ensures efficient workflows and high-quality video output.

What's in the box:

  • RED Digital Cinema V-RAPTOR XL 8K VV Cinema Camera
  • AC Power Adapter
  • Red Digital Cinema 2 Year Limited Warranty
